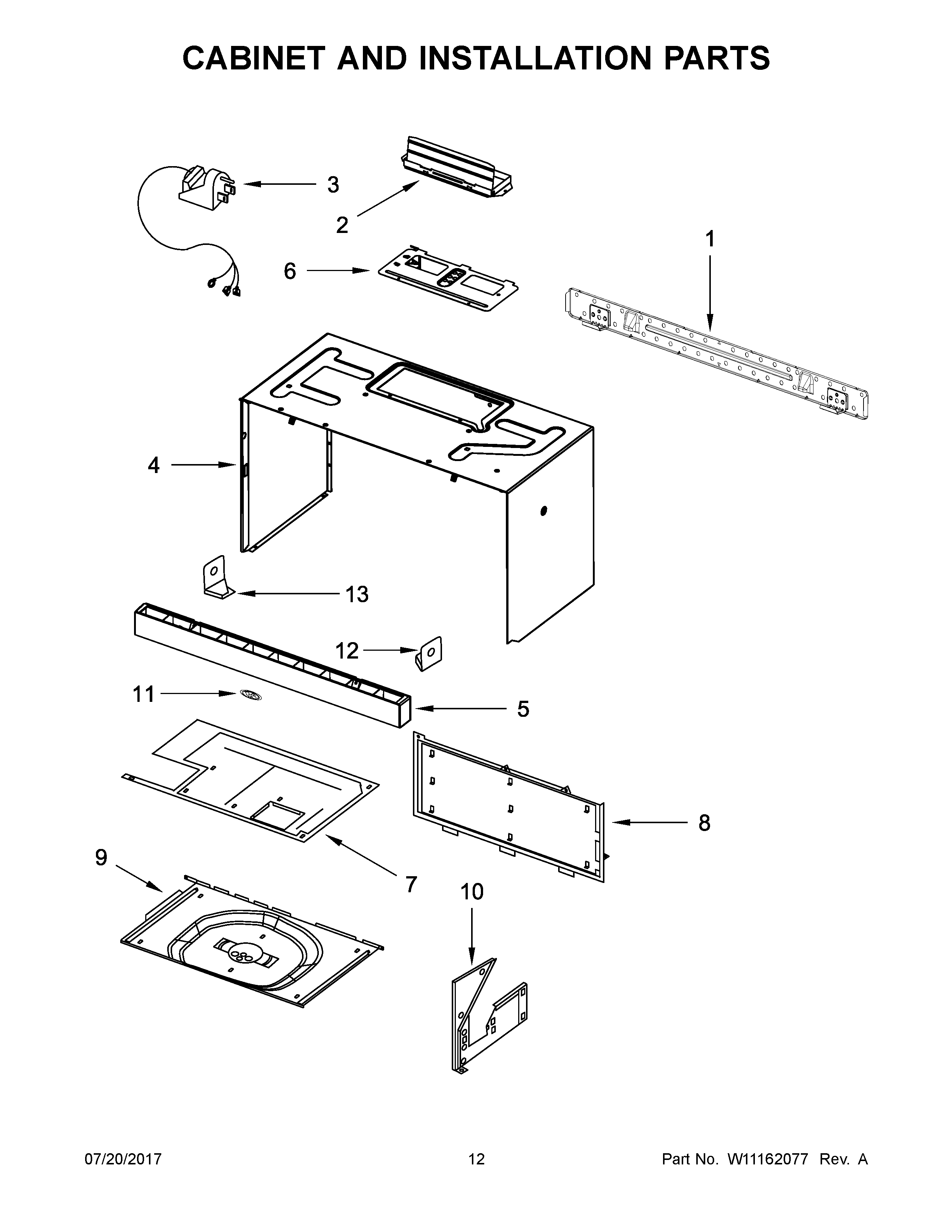

WMH76718AS1 07 – CABINET AND INSTALLATION PARTS

WMH76718AS1 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH76718AS1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIMISCELLANEOUS, HARNESS, WIRE TURNTABLE MOTOR AND HOOD LAMP
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIMISCELLANEOUS, HARNESS, MAIN
1W11025649 Whirlpool Microwave Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
3W10708076 Whirlpool Microwave Power Cord
4WPW10244765 Whirlpool Microwave Cabinet Wrapper
4AWPW10245176 Whirlpool Microwave Cabinet Wrapper
5W10245217 Whirlpool Microwave Vent Grill
5AW10245218 Whirlpool Microwave Vent Grille
5BW10245216 Whirlpool Microwave Vent Grille
6COVER, HOOD FAN MOTOR
7W10248268 Whirlpool Microwave Plate
8W10248267 Whirlpool Plate
9ASSEMBLY, BOTTOM PLATE
10W10248279 Whirlpool Plate
11W11178521 Whirlpool Dishwasher Nameplate
12W10810989 Whirlpool Microwave Mounting Bracket
12AW10703282 Whirlpool Microwave Mounting Bracket
13AW11026306 Whirlpool Microwave Mounting Bracket
13W10830163 Whirlpool Microwave Mounting Bracket
