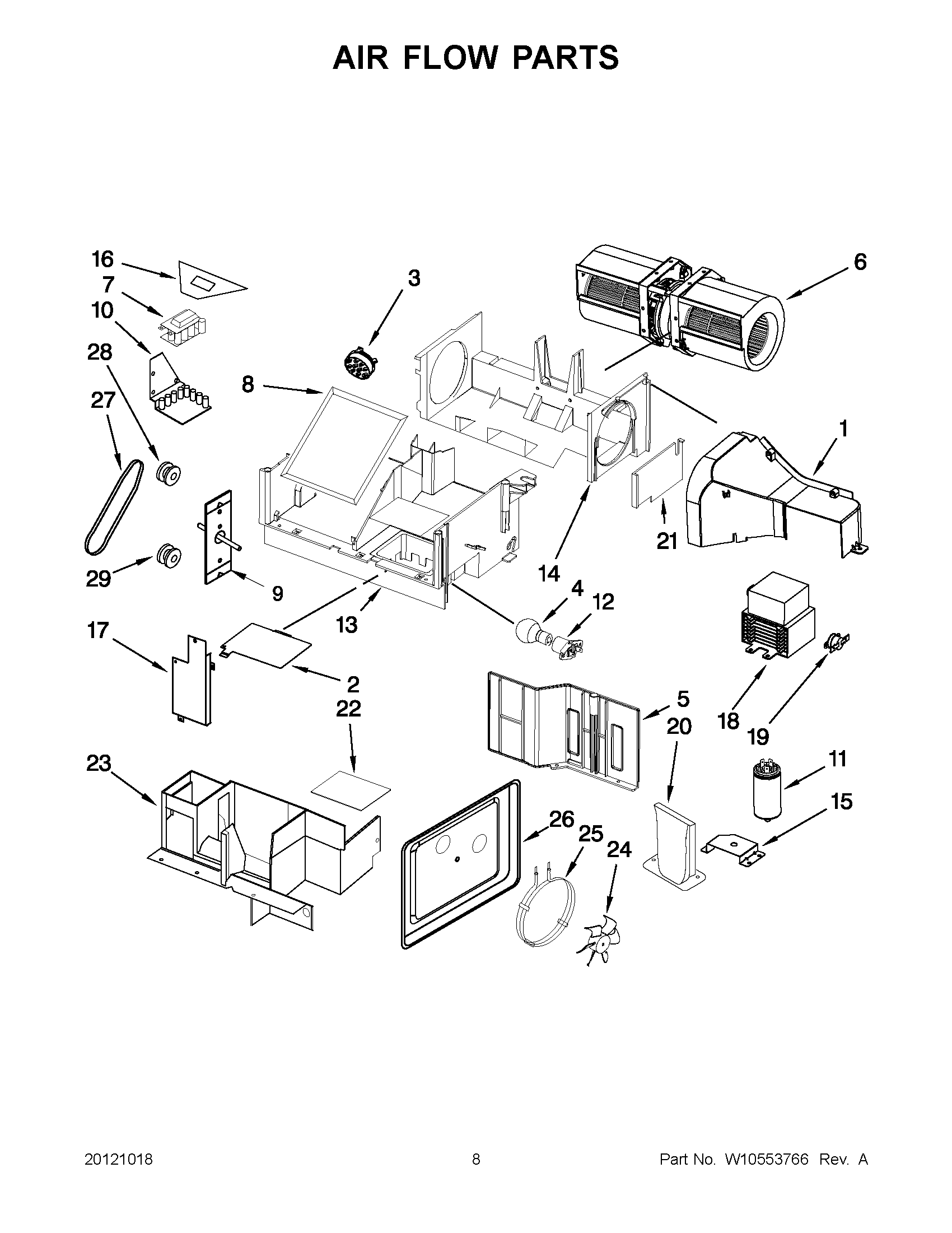

WMH76718AW0 04 – AIR FLOW PARTSadmin2025-04-26T11:25:11+00:00WMH76718AW0 04 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | W10640886 Whirlpool Microwave Deflector Assembly |
| 2 | 8206382 Whirlpool Microwave Light Cover |
| 3 | W10245178 Whirlpool Microwave Sensor |
| 4 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 5 | Cover, Side Inlet |
| 6 | MOTOR, FAN ASSEMBLY |
| 7 | Motor, FC |
| 8 | 8206230A Whirlpool Microwave Charcoal Filter |
| 9 | ASSEMBLY, BEARING |
| 10 | W10399840 Whirlpool Support Bracket |
| 11 | Filter |
| 12 | WPW10210878 Whirlpool Microwave LMP Housing |
| 13 | W10387591 Whirlpool HVAC Air Duct |
| 14 | HOLDER, HOOD FAN |
| 15 | BRACKET MOUNTING, FILTER |
| 16 | SOCKET, MOTOR WIRE |
| 17 | Cover, Inlet Air Cavity Guide |
| 18 | W10245183 Whirlpool Microwave Magnetron |
| 19 | W10491433 Whirlpool Microwave Thermostat Fix |
| 20 | W10164716 Whirlpool Microwave Plate |
| 21 | W10245182 Whirlpool Microwave Duct Cover |
| 22 | Cavity Lamp Foil |
| 23 | Sealing Plate |
| 24 | Wheel, Fan |
| 25 | W10776366 Whirlpool Microwave Heater |
| 26 | W10249508 Whirlpool Microwave Chamber |
| 27 | W10249504 Whirlpool Microwave Drive Belt |
| 28 | Wheel, Pulley |
| 29 | W10249506 Whirlpool Microwave Pulley |
