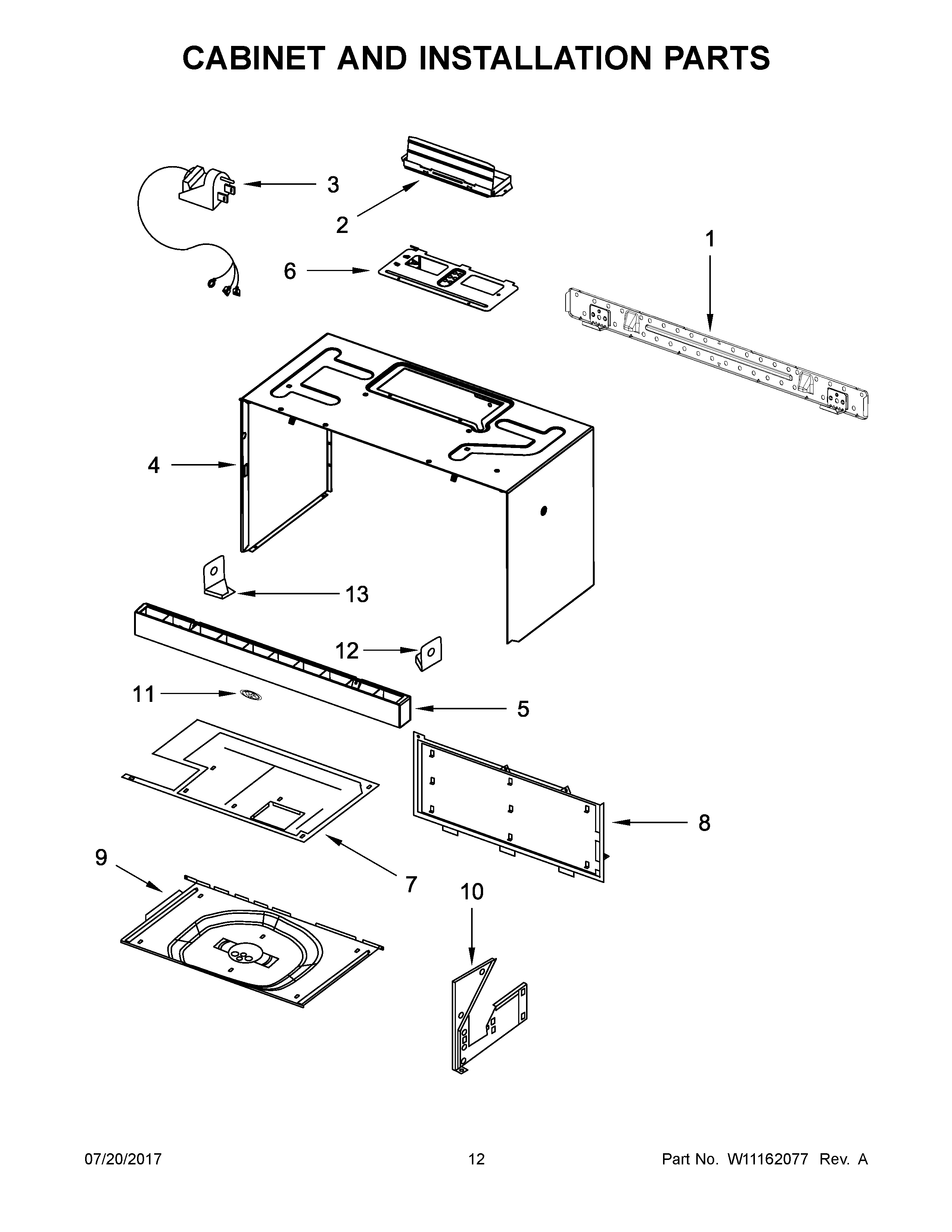

WMH76718AW1 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	MISCELLANEOUS, HARNESS, WIRE TURNTABLE MOTOR AND HOOD LAMP
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI	W10821385 Whirlpool Hardware Kit
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
NI	MISCELLANEOUS, HARNESS, MAIN
1	W11025649 Whirlpool Microwave Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4	WPW10244765 Whirlpool Microwave Cabinet Wrapper
4A	WPW10245176 Whirlpool Microwave Cabinet Wrapper
5	W10245217 Whirlpool Microwave Vent Grill
5A	W10245218 Whirlpool Microwave Vent Grille
5B	W10245216 Whirlpool Microwave Vent Grille
6	COVER, HOOD FAN MOTOR
7	W10248268 Whirlpool Microwave Plate
8	W10248267 Whirlpool Plate
9	ASSEMBLY, BOTTOM PLATE
10	W10248279 Whirlpool Plate
11	W11178521 Whirlpool Dishwasher Nameplate
12	W10810989 Whirlpool Microwave Mounting Bracket
12A	W10703282 Whirlpool Microwave Mounting Bracket
13A	W11026306 Whirlpool Microwave Mounting Bracket
13	W10830163 Whirlpool Microwave Mounting Bracket
