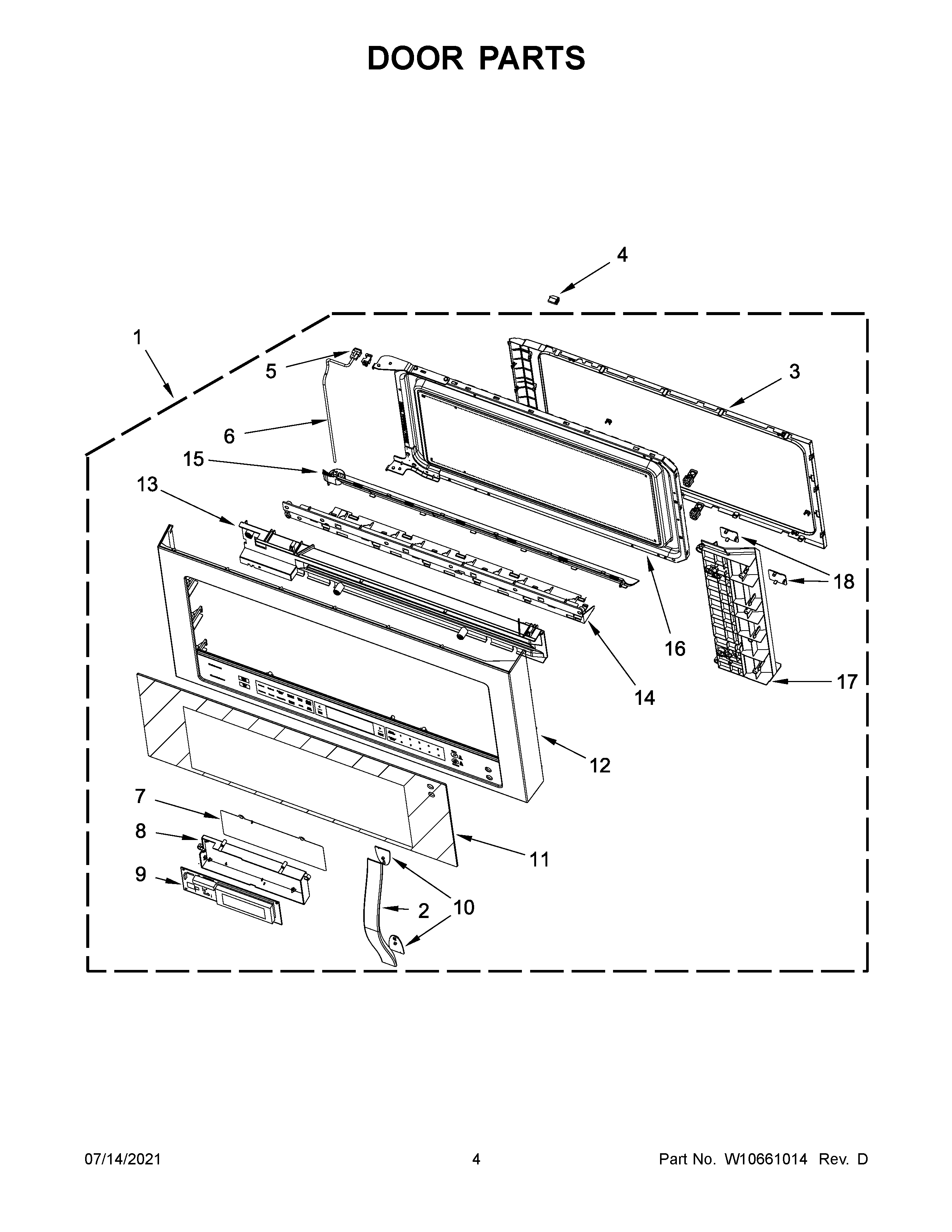

WMH76719CB0 03 – DOOR PARTS

Products

PositionProduct
1W10860349 Whirlpool Microwave Door
1AW10860350 Whirlpool Microwave Door
1CW10860353 Whirlpool Microwave Door
1DW10860352 Whirlpool Microwave Door
1BDOOR, COMPLETE (STAINLESS)
2BW10478162 Whirlpool Microwave Door Handle
2AW10571332 Whirlpool Microwave Door Handle
2W10571333 Whirlpool Microwave Door Handle
3W10648086 Whirlpool Microwave Choke Cover
4W10643448 Whirlpool Microwave Clip
5W10478659 Whirlpool Microwave Wire Holder
6W10508745 Whirlpool Microwave Wire Harness
7W10540298 Whirlpool Cover Assembly
8W10478216 Whirlpool Holder Assembly
9W10894471 Whirlpool Microwave Electronic Control Board
10W10478213 Whirlpool Microwave Cushion
11WPW10478716 Whirlpool Door Glass
11BGLASS, OUTER (STAINLESS)
11CWPW10531174 Whirlpool Glass Door
11AWPW10478721 Whirlpool Microwave Door Glass
12W10648087 Whirlpool Microwave Outer Door
12BW10579828 Whirlpool Microwave Outer Door
12DW10777693 Whirlpool Outer Door
12CW10777692 Whirlpool Outer Door
12AW10648088 Whirlpool Door Outer Assembly
13W10617743 Whirlpool Microwave Cover
14W10476546 Whirlpool Microwave Support Bracket
15AW10476550 Whirlpool Microwave Door Trim
15W10570992 Whirlpool Microwave Door Trim
16W10568846 Whirlpool Microwave Inner Door
17AW11699920 Whirlpool Microwave Support Bracket
17W10734944 Whirlpool Microwave Support Bracket
18AW10478657 Whirlpool Microwave Cover
18W10571119 Whirlpool Plate Cover
