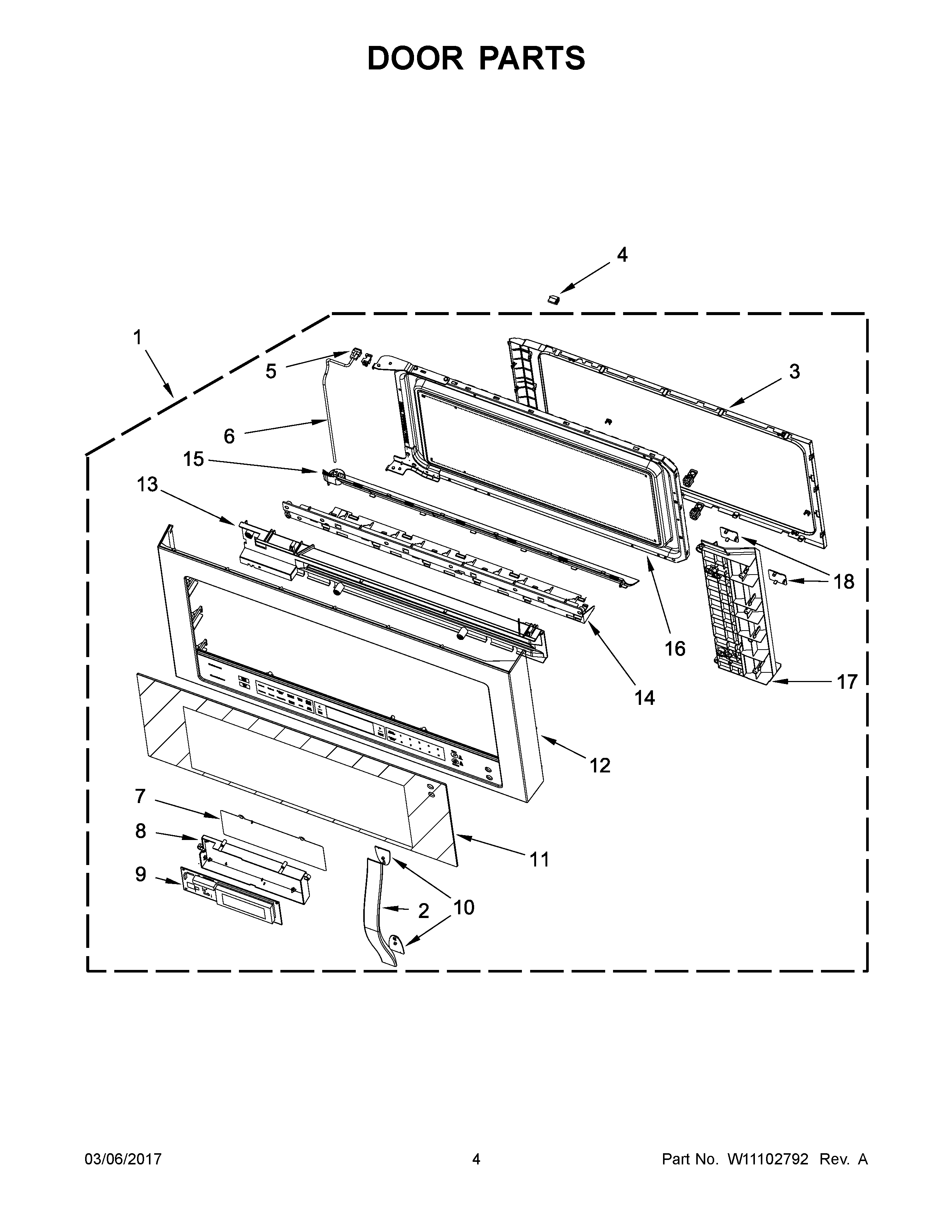

WMH76719CE2 03 – DOOR PARTS

WMH76719CE2 03 – DOOR PARTS

Written by

in

WMH76719CE2 03 – DOOR PARTS

Products

PositionProduct
1ADOOR, COMPLETE (BLACK ICE)
1W10893386 Whirlpool Microwave Door
2W10478162 Whirlpool Microwave Door Handle
3W10648086 Whirlpool Microwave Choke Cover
4W10643448 Whirlpool Microwave Clip
5HOLDER, DOOR CABLE
6W10508745 Whirlpool Microwave Wire Harness
7W10540298 Whirlpool Cover Assembly
8W10770970 Whirlpool Holder
9W11087923-includeCORE Whirlpool W11087923 Microwave Electronic Control Board with Core
10W10478213 Whirlpool Microwave Cushion
11AGLASS, OUTER (STAINLESS)
11WPW10531174 Whirlpool Glass Door
12W10893405 Whirlpool Microwave Outer Door
12AW10893406 Whirlpool Microwave Outer Door
13W10617743 Whirlpool Microwave Cover
14W10476546 Whirlpool Microwave Support Bracket
15AW10476550 Whirlpool Microwave Door Trim
15W10570992 Whirlpool Microwave Door Trim
16W10568846 Whirlpool Microwave Inner Door
17AW11699920 Whirlpool Microwave Support Bracket
17W10734944 Whirlpool Microwave Support Bracket
18AW10478657 Whirlpool Microwave Cover
18W10571119 Whirlpool Plate Cover
