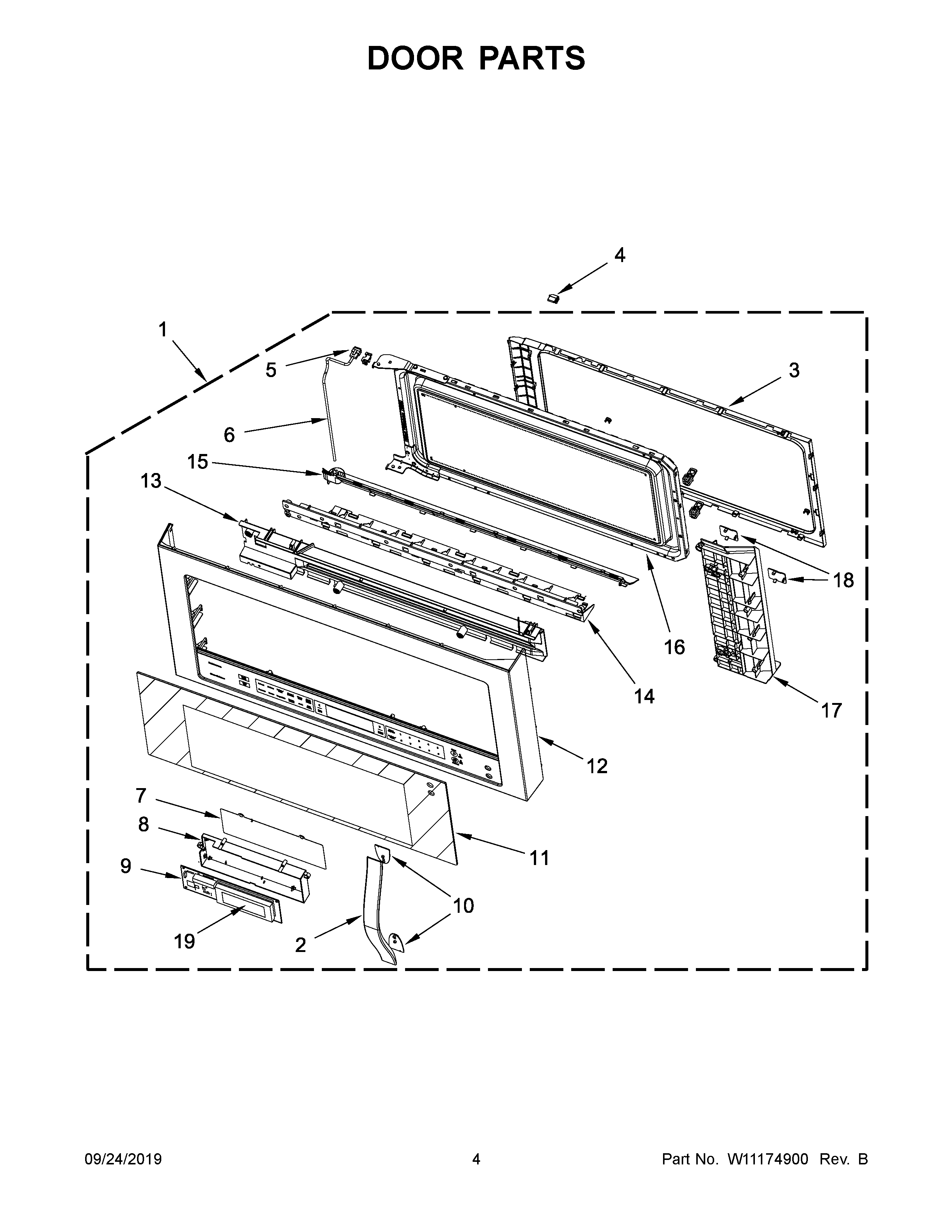

WMH76719CS5 03 – DOOR PARTS

Products

PositionProduct
1DOOR, COMPLETE (STAINLESS)
2W10478162 Whirlpool Microwave Door Handle
3W10648086 Whirlpool Microwave Choke Cover
4W10643448 Whirlpool Microwave Clip
5HOLDER, DOOR CABLE
6W10508745 Whirlpool Microwave Wire Harness
7W10540298 Whirlpool Cover Assembly
8W10770970 Whirlpool Holder
9W11087923-includeCORE Whirlpool W11087923 Microwave Electronic Control Board with Core
10W10478213 Whirlpool Microwave Cushion
11GLASS, OUTER (STAINLESS)
12W10846250 Whirlpool Microwave Outer Door
13W10617743 Whirlpool Microwave Cover
14W10476546 Whirlpool Microwave Support Bracket
15W10476550 Whirlpool Microwave Door Trim
16W11045518 Whirlpool Microwave Inner Door
17W11699920 Whirlpool Microwave Support Bracket
18W10478657 Whirlpool Microwave Cover
19W11357222 Whirlpool Microwave Electronic Control Board
