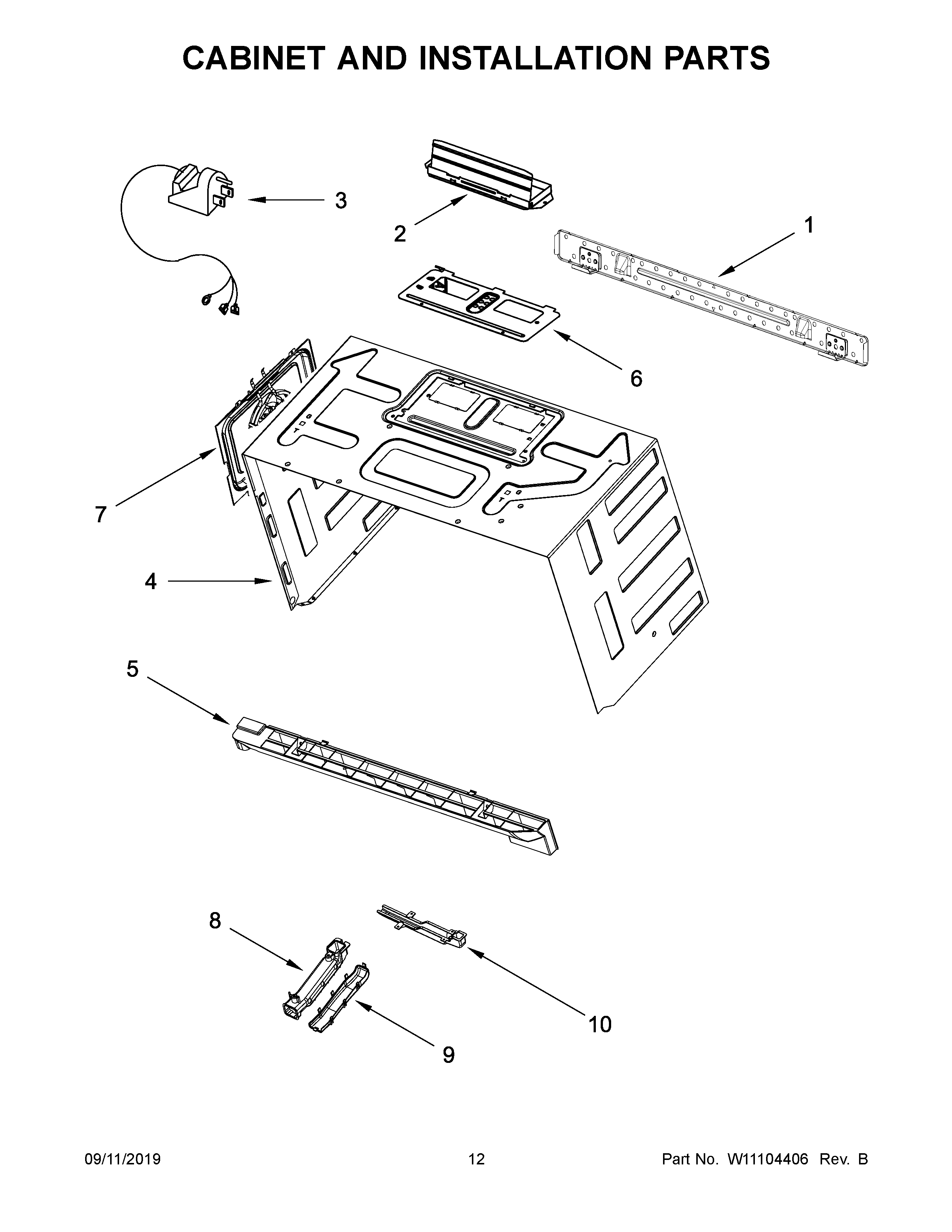

WMH76719CZ1 07 – CABINET AND INSTALLATION PARTS

WMH76719CZ1 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH76719CZ1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10508741 Whirlpool Microwave Wire Harness
NIW10539840 Whirlpool Microwave Wire Harness
NIW10571450 Whirlpool Plate
NIW10571451 Whirlpool Plate
NIW10821385 Whirlpool Hardware Kit
NIW10834331 Whirlpool Microwave Wire Harness
NIW10913752 Whirlpool Microwave Wire Harness
NIW10571454 Whirlpool Plate Assembly
NIW10190018 Whirlpool Microwave Template
1W11025649 Whirlpool Microwave Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
3W10595343 Whirlpool Microwave Power Cord
4W10818229 Whirlpool Microwave Cabinet Wrapper
5W10701701 Whirlpool Microwave Vent Grille
6COVER, FAN MOTOR
7WPW10571554 Whirlpool Microwave Chamber
8W10740434 Whirlpool Microwave Air Duct
9W10533489 Whirlpool Microwave Air Duct
10W10570212 Whirlpool Microwave Air Duct
11W10596040 Whirlpool Microwave Nut
