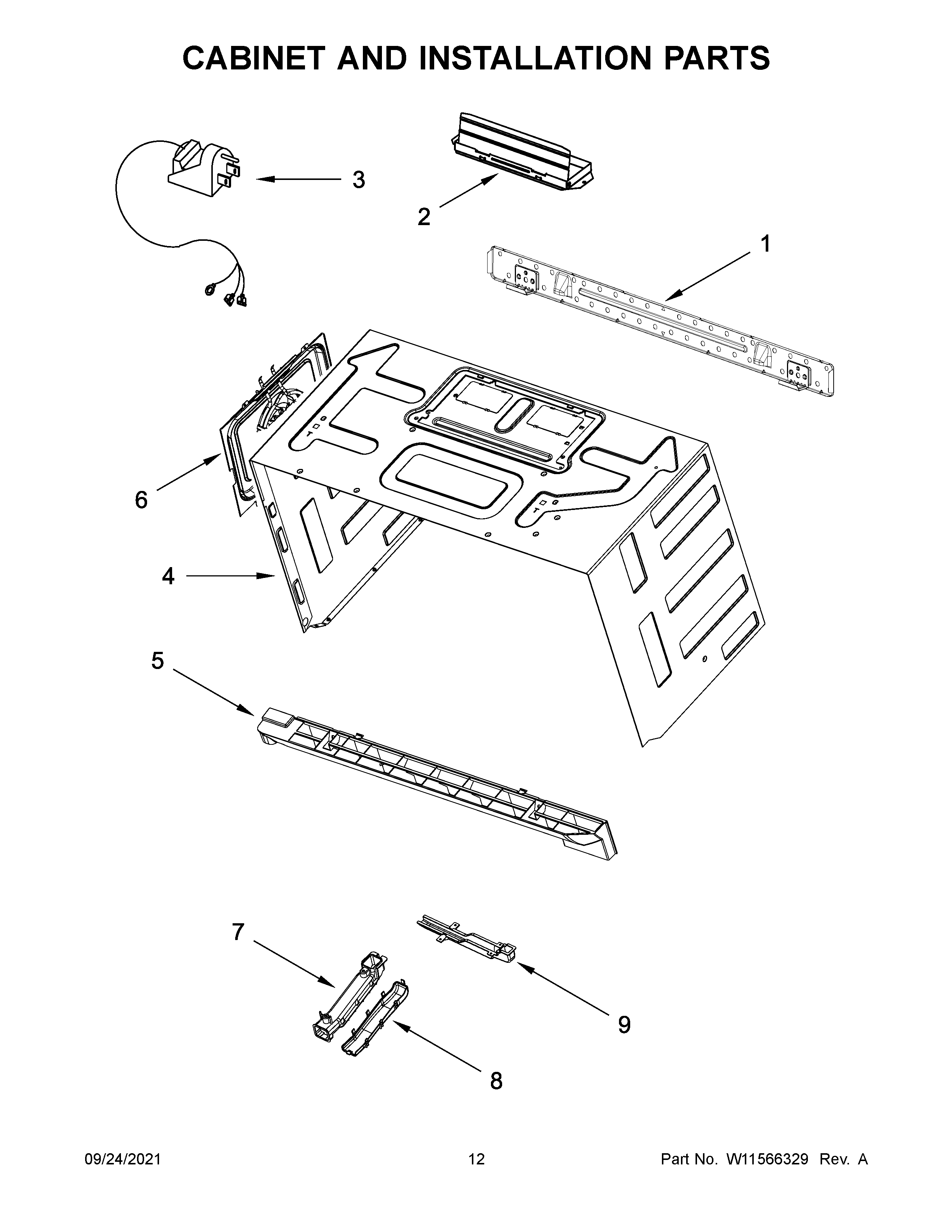

WMH78019HB6 07 – CABINET AND INSTALLATION PARTS

WMH78019HB6 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH78019HB6 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10508741 Whirlpool Microwave Wire Harness
NIW10539840 Whirlpool Microwave Wire Harness
NIW10571450 Whirlpool Plate
NIW10571451 Whirlpool Plate
NIW10821385 Whirlpool Hardware Kit
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10571454 Whirlpool Plate Assembly
NIW10902486 Whirlpool Microwave Wire Harness
NIW10509362 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIW11298100 Whirlpool Wire Harness
NIWP8169704 Whirlpool Screw
1W11025649 Whirlpool Microwave Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
3W10708076 Whirlpool Microwave Power Cord
4W11446920 Whirlpool Microwave Cab Wrapper
4AW11662678 Whirlpool Cabinet Wrapper
5W10701700 Whirlpool Microwave Vent Grill
5AW10701701 Whirlpool Microwave Vent Grille
6WPW10571554 Whirlpool Microwave Chamber
7W10740434 Whirlpool Microwave Air Duct
8W10533489 Whirlpool Microwave Air Duct
9W10570212 Whirlpool Microwave Air Duct
