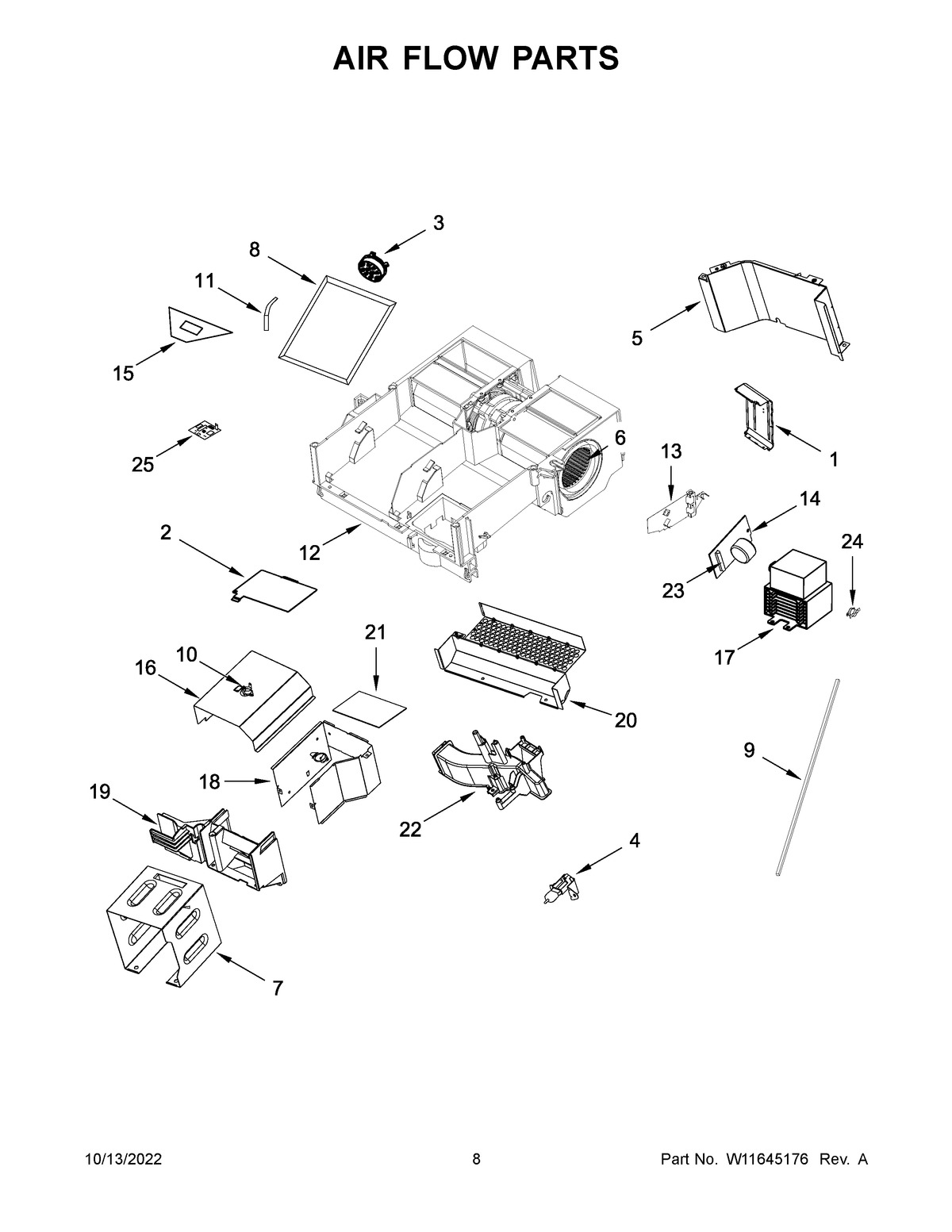

WMH78519LW00 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	8206382 Whirlpool Microwave Light Cover
3	W10557536 Whirlpool Microwave Sensor
4	W11409090 Whirlpool Microwave Light Bulb
5	PLATE, AIR GUIDE
6	W11613599 Whirlpool Microwave Fan Motor
7	HOUSING, DAMPER
8	8206230A Whirlpool Microwave Charcoal Filter
9	SEAL, FOAM
10	W11661583 Whirlpool Thermostat Fix
11	W10557537 Whirlpool Microwave Thermistor
12	W10632409 Whirlpool Microwave Air Duct
13	W11293488 Whirlpool Microwave Air Duct
14	W10572027 Whirlpool Microwave Filter
15	W10810142 Whirlpool Relief Strain
16	OUTLET, CAVITY (BACK)
17	W11708328 Whirlpool Magnetron
18	DUCT, CAVITY (REAR)
19	DUCT, CAVITY (FRONT)
19A	W10892383 Whirlpool Microwave Air Guide
20	W10715053 Whirlpool Side Cover
21	W10531724 Whirlpool Microwave Lamp Glass
22	W10758887 Whirlpool Microwave Air Duct
23	FUSE-THRML
24	W11553234 Whirlpool Microwave Magnetron Thermostat 145C/105C
25	WPW10565479-includeCORE Whirlpool WPW10565479 Microwave Electronic Control Board + Core
