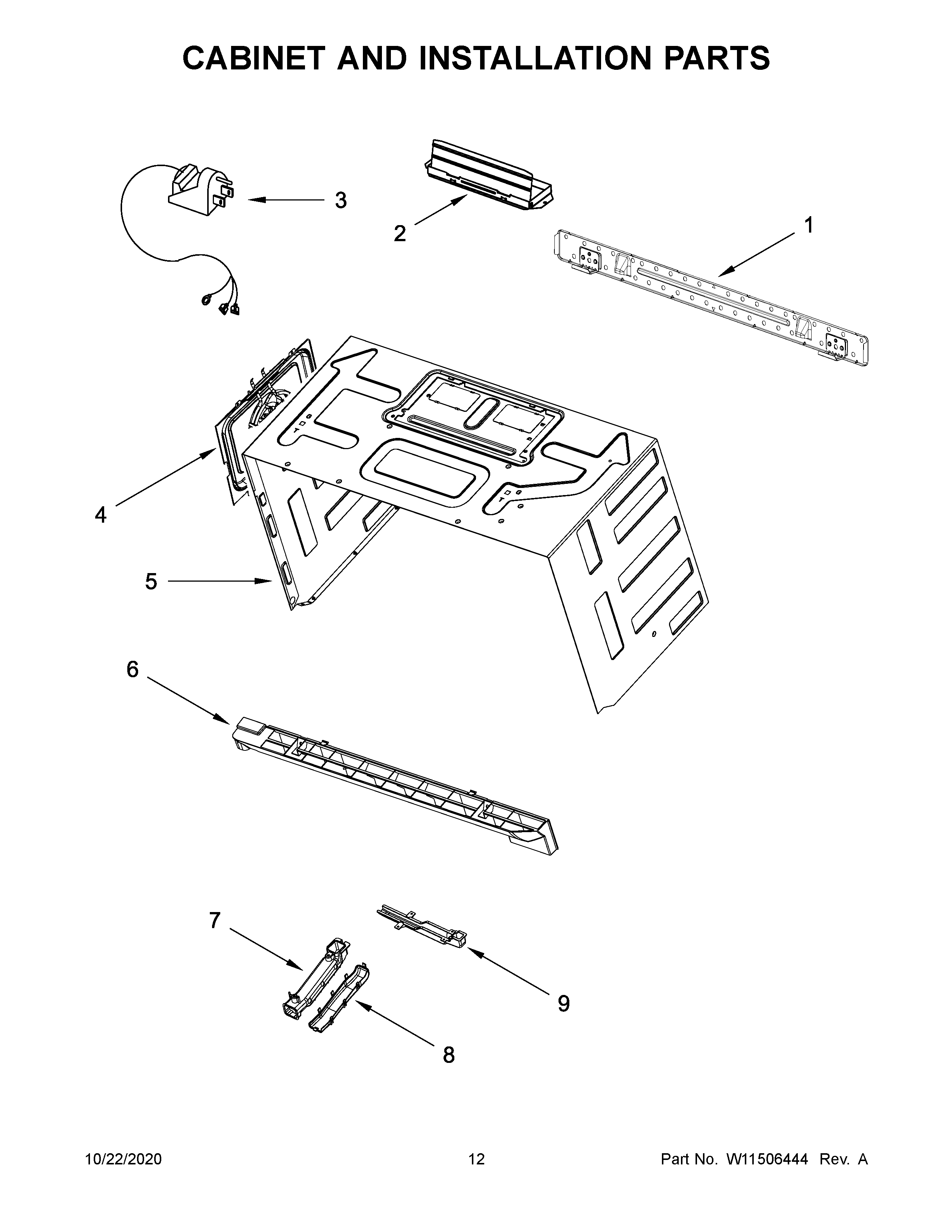

WMHA9019HV3 07 – CABINET AND INSTALLATION PARTS

WMHA9019HV3 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMHA9019HV3 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10539840 Whirlpool Microwave Wire Harness
NIW10571450 Whirlpool Plate
NIW10571451 Whirlpool Plate
NIW10821385 Whirlpool Hardware Kit
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10571454 Whirlpool Plate Assembly
NIW10902490 Whirlpool Microwave Wire Harness
NIW11302285 Whirlpool Microwave Wire Harness
NIW10508741 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIWP8169704 Whirlpool Screw
NIW11302360 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
3W10708076 Whirlpool Microwave Power Cord
4WPW10571554 Whirlpool Microwave Chamber
5W11662678 Whirlpool Cabinet Wrapper
6W10701701 Whirlpool Microwave Vent Grille
7W10740434 Whirlpool Microwave Air Duct
8W10533489 Whirlpool Microwave Air Duct
9W10570212 Whirlpool Microwave Air Duct
