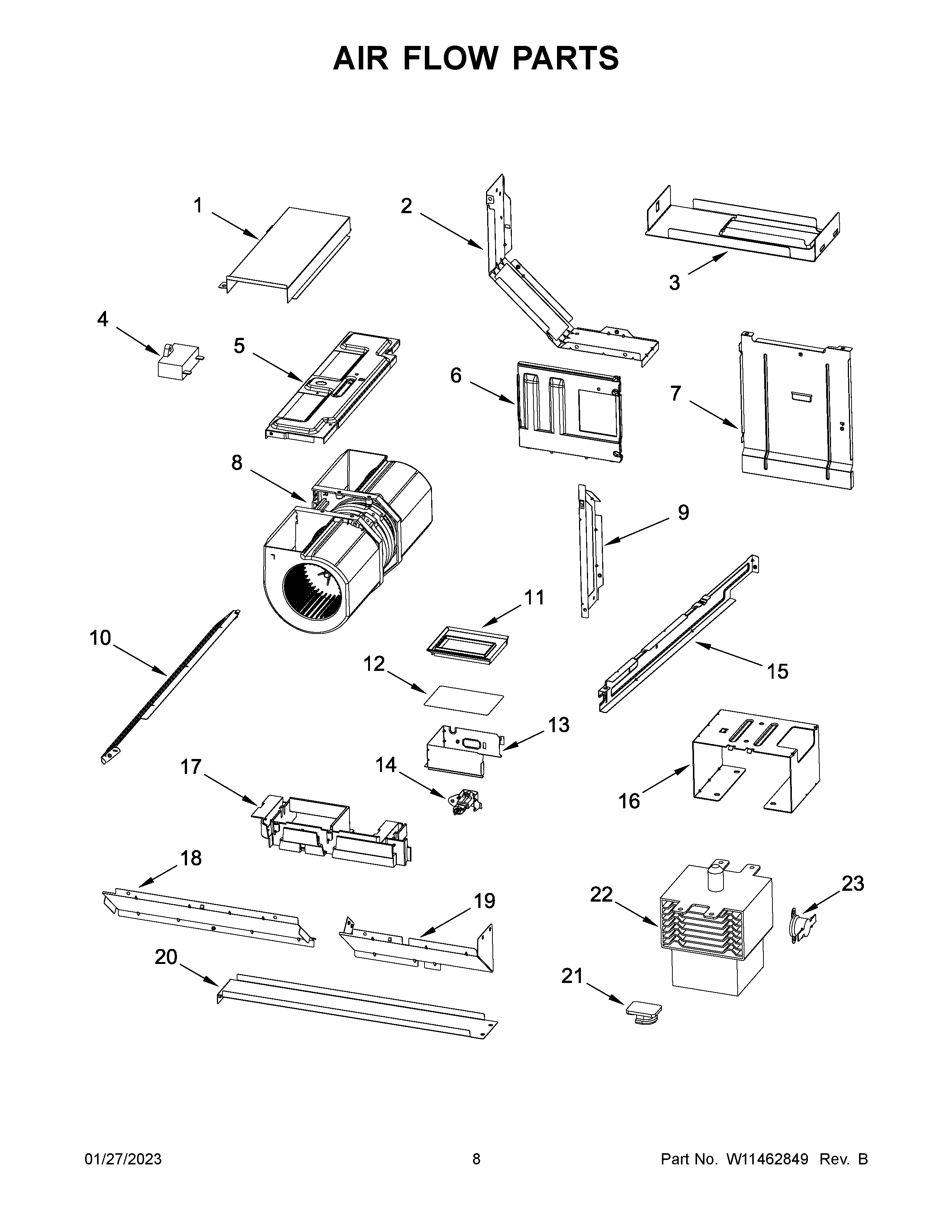

WML35011KB00 05 – AIR FLOW PARTS

Products

Position	Product
1	W11108230 Whirlpool Microwave Side Cover
2	AIR DEFLECTOR, RIGHT
3	W11096347 Whirlpool Spacer
4	W11405831 Whirlpool Microwave Capacitor
5	CHASSIS, FAN
6	W11095794 Whirlpool Deflector Assembly
7	W11095804 Whirlpool Deflector Assembly
8	W11373008 Whirlpool Microwave Fan Motor
9	HOOD DEFLECTOR, LEFT
10	AIR GUIDE, LEFT
11	SEAL, LIGHTING
12	FOIL, LAMP
13	W11086300 Whirlpool Microwave Reflector
14	W10709921 Whirlpool Halogen Light Bulb
15	DIVIDER, AIR
16	HOUSING, TRANFORMER
17	HOLDER, WIRE
18	CHANNEL, HOOD BACK
19	AIR GUIDE, RIGHT
20	AIR GUIDE, BOTTOM
21	W11126543 Whirlpool Microwave Foam Seal
22	W11652048 Whirlpool Magnetron
23	W11443128 Whirlpool Thermostat
