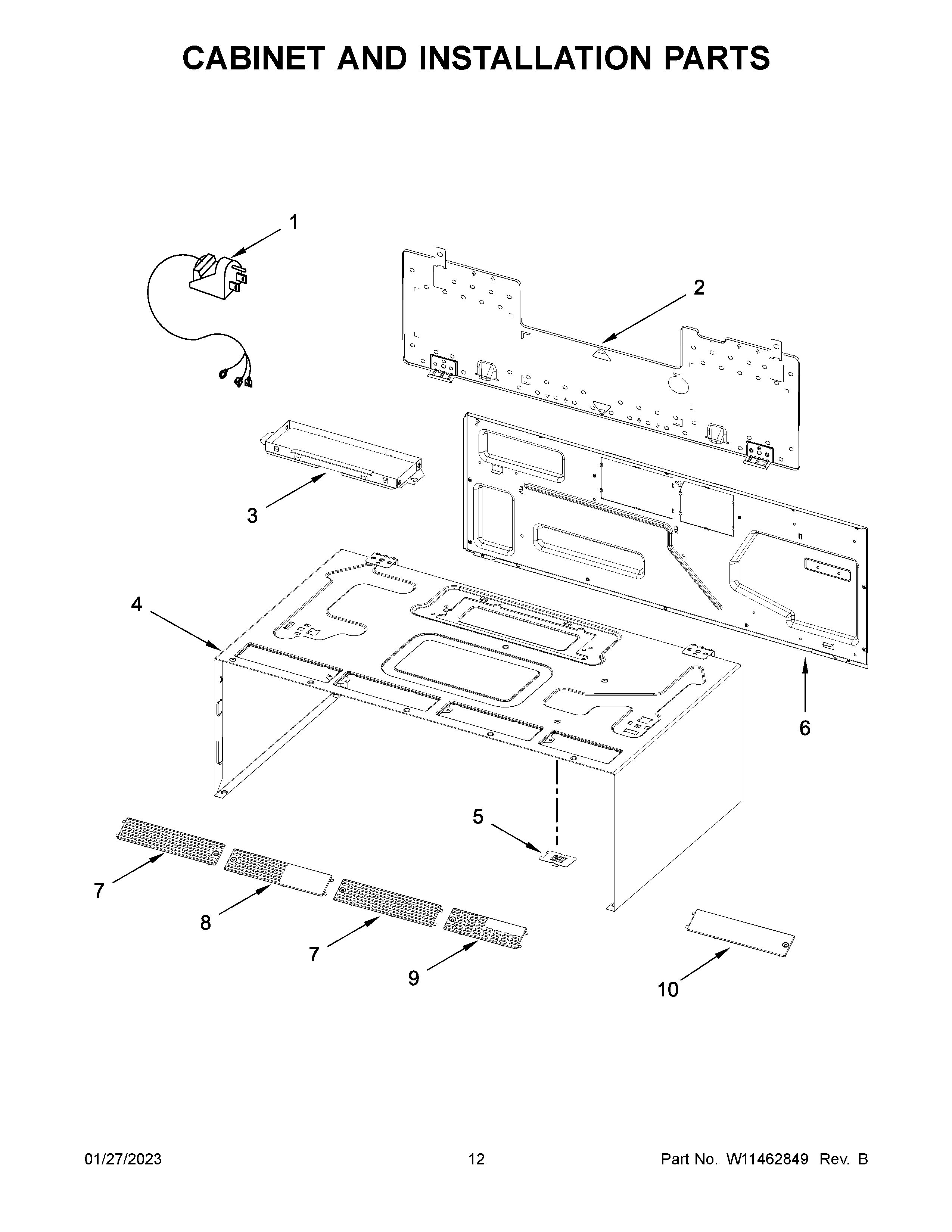

WML35011KB00 07 – CABINET AND INSTALLATION PARTS

WML35011KB00 07 – CABINET AND INSTALLATION PARTS

Written by

in

WML35011KB00 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIW10821385 Whirlpool Hardware Kit
NIHARNESS, DOOR SIGNAL SWITCH
NIHARNESS, MAIN
NIHARNESS, DOOR SWITCH TO HMI
NIHARNESS, ACU TO HMI
NIW11357510 Whirlpool Wire Harness
NIHOLDER, LAMP
1W11187358 Whirlpool Microwave Power Cord
2W11368557 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4CASE, OUTER (WHITE)
4ACASE, OUTER (BLACK)
5W11122643 Whirlpool Nut
6W11360416 Whirlpool Plate
7AW11086309 Whirlpool Microwave Vent Grille
8W11164786 Whirlpool Microwave Vent Grille
8AW11095781 Whirlpool Microwave Vent Grille
9W11164816 Whirlpool Microwave Vent Grille
9AGRILLE, VENT (SHORT) (BLACK)
10AW11397086 Whirlpool Microwave Vent Grill
