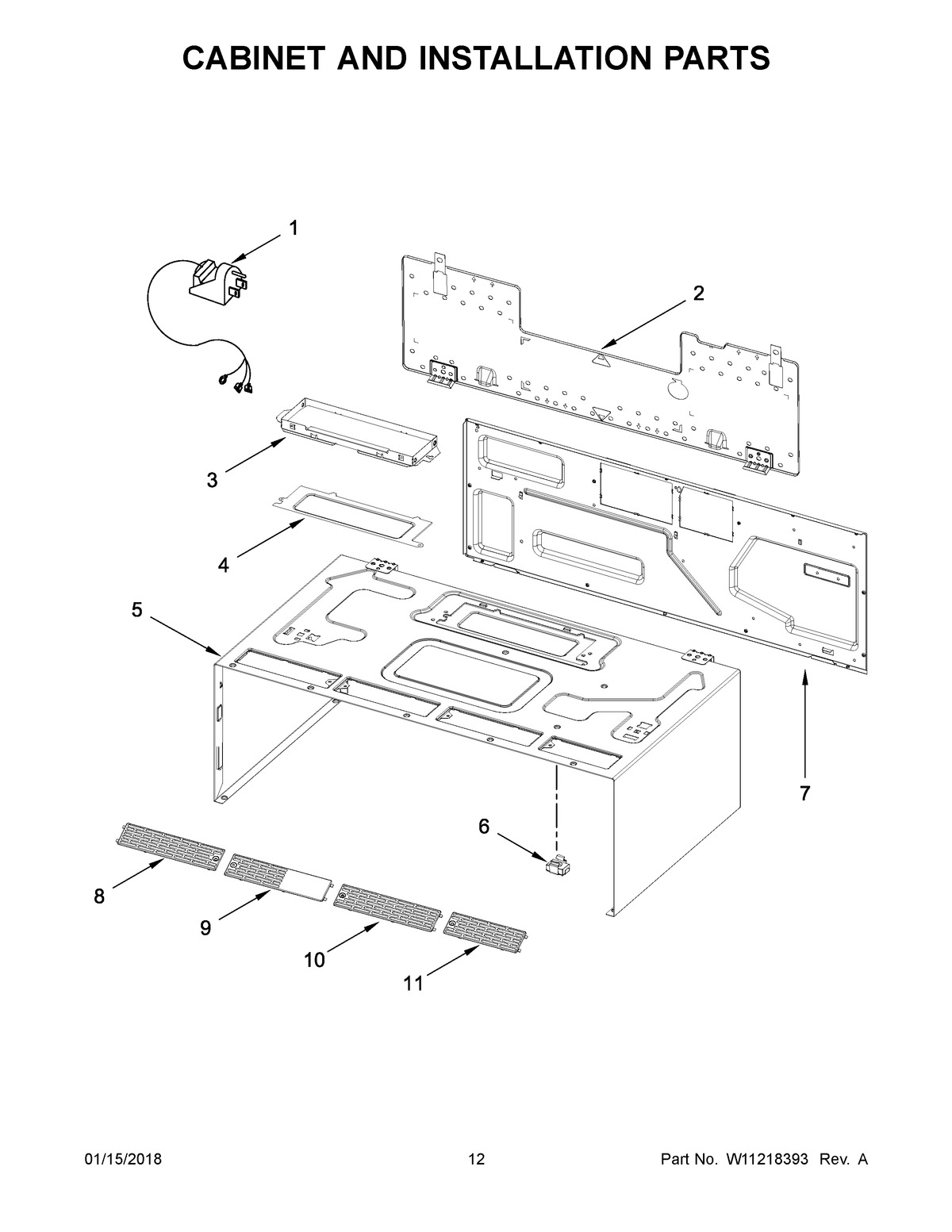

WML75011HZ0 07 – CABINET AND INSTALLATION PARTS

WML75011HZ0 07 – CABINET AND INSTALLATION PARTS

Written by

in

WML75011HZ0 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIW11322425 Whirlpool Wire Harness
NIW10821385 Whirlpool Hardware Kit
NIW10916212 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIW11101699 Whirlpool Microwave Wire Harness
NIW11213885 Whirlpool Microwave Wire Harness
NIW11213883 Whirlpool Microwave Wire Harness
1W11187358 Whirlpool Microwave Power Cord
2W11368557 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4BCOVER, EXHAUST (STAINLESS)
4COVER, EXHAUST (WHITE)
4ACOVER, EXHAUST (BLACK)
5BW11493413 Whirlpool Microwave Cabinet Wrapper
5AW11446923 Whirlpool Microwave Cabinet Wrapper
5W11446922 Whirlpool Cabinet Wrapper
5CW11446949 Whirlpool Microwave Cabinet Wrapper
5DW11165448 Whirlpool Microwave Cabinet Wrapper
6W11122643 Whirlpool Nut
7W11086259 Whirlpool Microwave Plate
8BW11397086 Whirlpool Microwave Vent Grill
9AW11095781 Whirlpool Microwave Vent Grille
9W11164786 Whirlpool Microwave Vent Grille
10AW11086309 Whirlpool Microwave Vent Grille
11BW11086310 Whirlpool Microwave Vent Grill
11AGRILLE, VENT (SHORT) (BLACK)
11W11164816 Whirlpool Microwave Vent Grille
