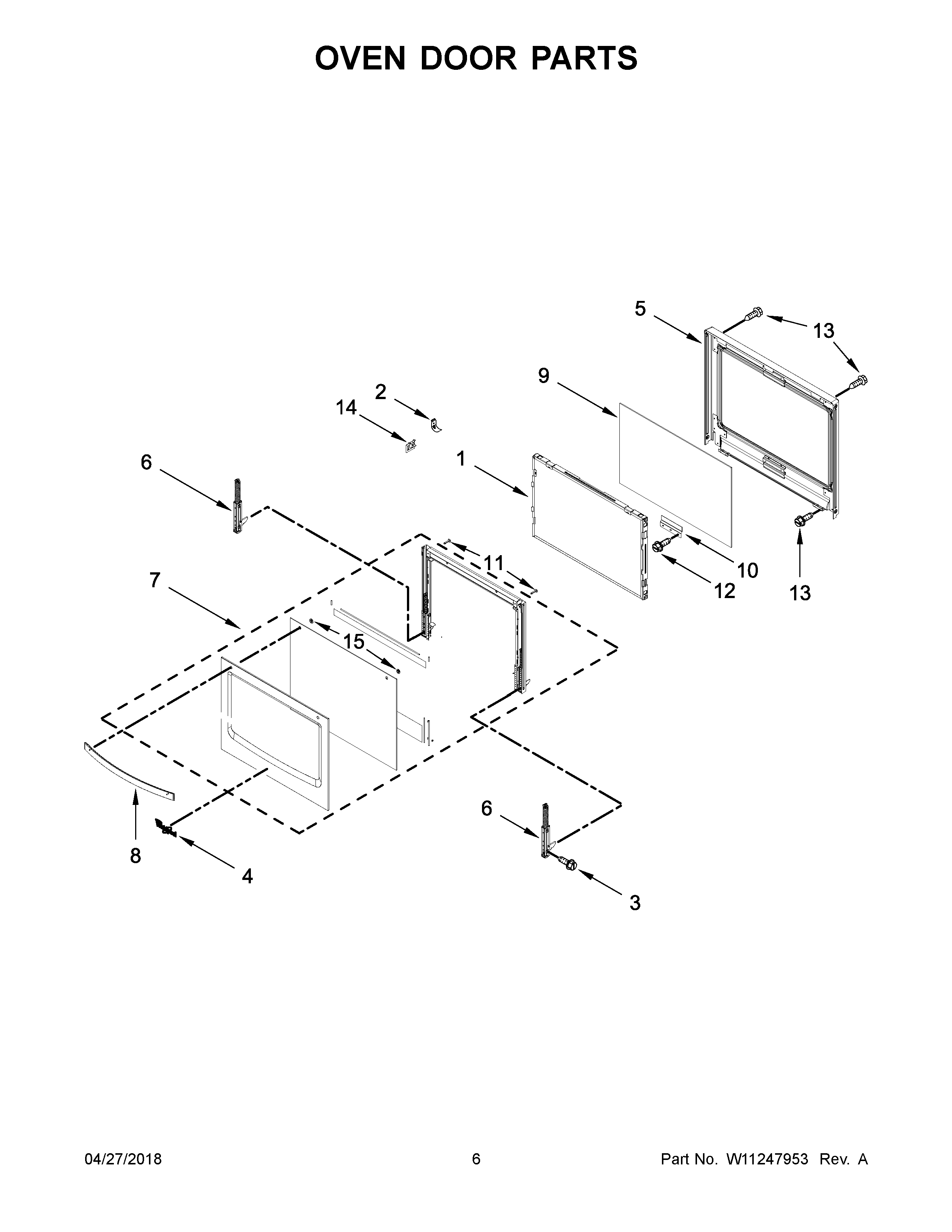

WOC54EC0HB01 04 – OVEN DOOR PARTS

Products

Position	Product
1	WPW10347596 Whirlpool Stove Middle Door Glass Panel
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W11178521 Whirlpool Dishwasher Nameplate
5	WPW10709147 Whirlpool Glass Frame
6	W10825778 Whirlpool Whirlpool Door Hinge
7B	W11455430 Whirlpool Door Glass
7	W11455427 Whirlpool Door Glass
7A	W11110282 Whirlpool Door Glass
8B	W11110499 Whirlpool Stove Door Handle
8A	W11110492 Whirlpool Door Handle
8	W11110491 Whirlpool Door Handle
9	WPW10618107 Whirlpool Door Glass Assembly
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW (BLACK)
14	W11025615 Whirlpool Glass Bracket
15	W11676355 Whirlpool Washer
