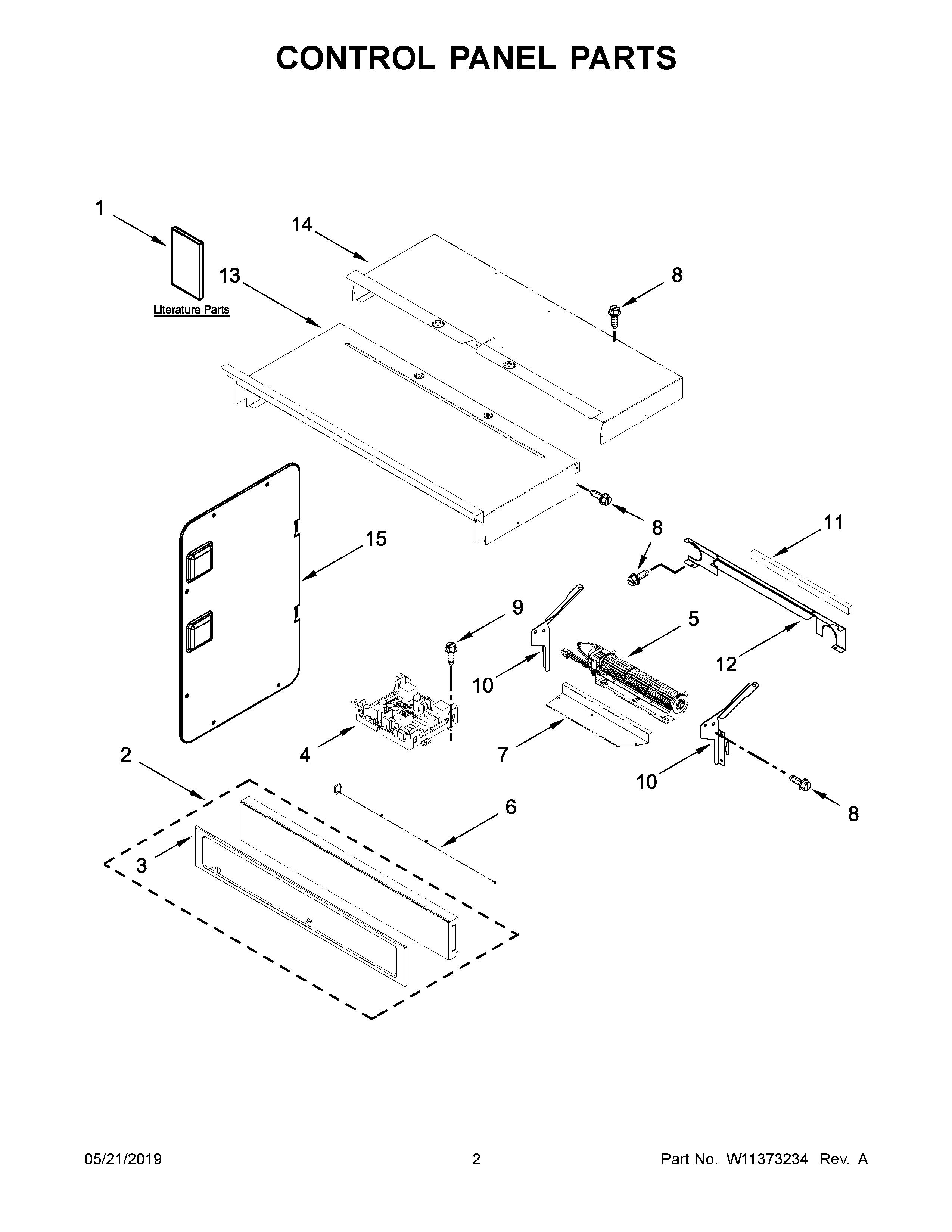

WOC54EC0HB03 02 – CONTROL PANEL PARTS

WOC54EC0HB03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11316032 Whirlpool Wire Harness
NIW11325605 Whirlpool Wire Harness
NIW11356954 Whirlpool Microwave Wire Harness
NIW11356968 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NIW11356991 Whirlpool Wire Harness
NIW11356990 Whirlpool Wire Harness
NIW11317200 Whirlpool Wire Harness
NIW11132989 Whirlpool Wire Harness
NIW11356970 Whirlpool Microwave Wire Harness
NIW11356977 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NI4448664 Whirlpool Oven Mounting Bracket
NI4450800 Whirlpool Oven Screw
NI16515 Whirlpool Clip
1DGUIDE, INTERNET CONNECTIVITY
1INSTRUCTIONS, INSTALLATION
1AGUIDE, USE & CARE (OVEN)
1BGUIDE, USE & CARE (MICROWAVE OVEN)
1CSHEET, TECH
2AW11297727 Whirlpool Console + Core
2W11297726 Whirlpool Console + Core
2BW11297728 Whirlpool Console + Core
3AW11109371 Whirlpool Skin Panel
3SKIN, CONTROL PANEL (BLACK)
3BW11113207 Whirlpool Skin Panel
4W11261167 Whirlpool Electronic Control Board + Core
5W11248652 Whirlpool Blower
6W11537624 Whirlpool Antenna Assembly
7W10681157 Whirlpool Fan Cover
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12CHASSIS, BACK DIVIDER
13W10318158 Whirlpool Access Cover Assembly
14W10588732 Whirlpool Cover Access
15W10655467 Whirlpool Side Cover
