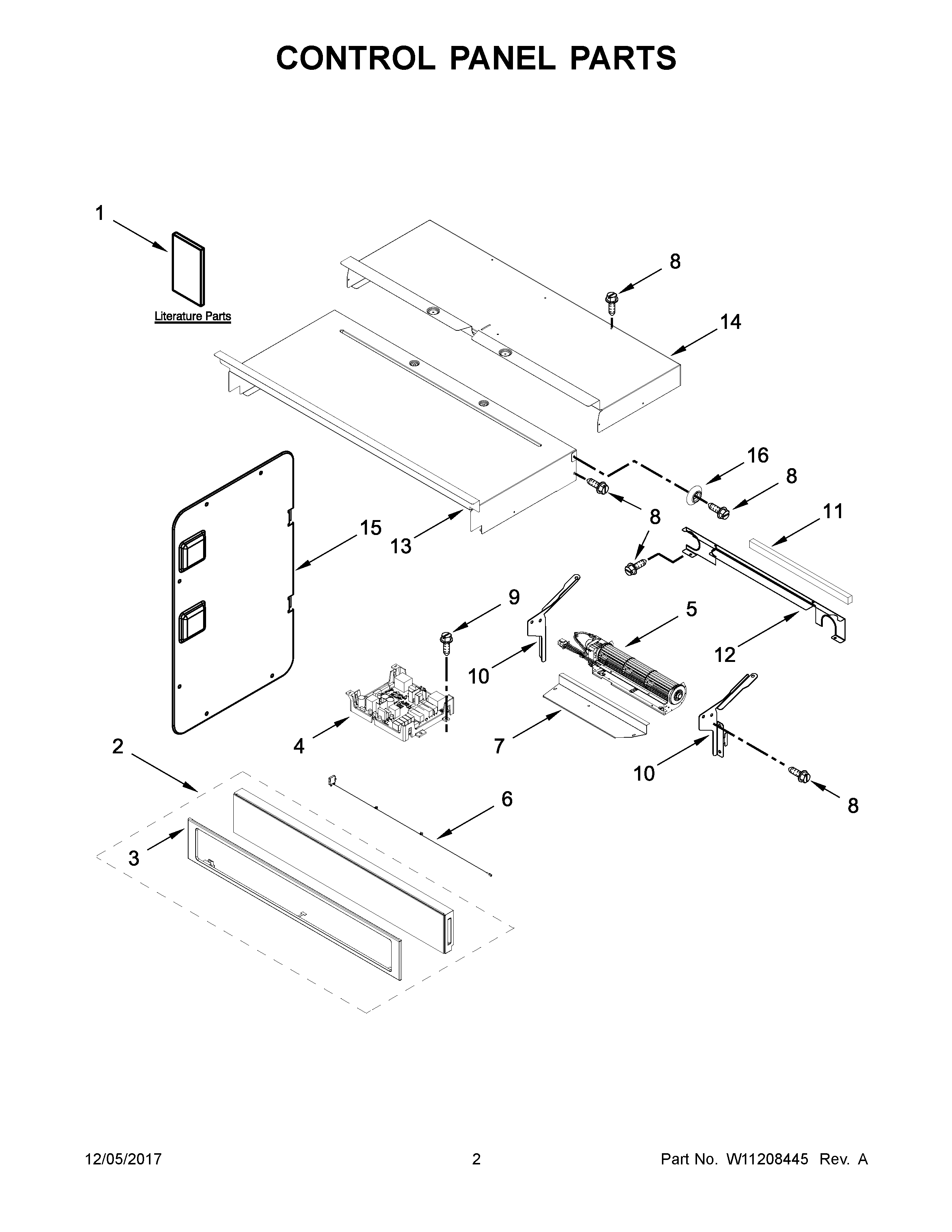

WOC54EC0HS00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10881998 Whirlpool Wire Harness
NI	W11356954 Whirlpool Microwave Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W11356970 Whirlpool Microwave Wire Harness
NI	W11356977 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	HARNESS, GROUND CONSOLE COMBO
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11356990 Whirlpool Wire Harness
1A	GUIDE, USE & CARE (OVEN)
1C	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
1B	GUIDE, USE & CARE (MICROWAVE OVEN)
1D	GUIDE, INTERNET CONNECTIVITY
2	W11297726 Whirlpool Console + Core
2B	W11297728 Whirlpool Console + Core
2A	W11297727 Whirlpool Console + Core
3A	W11109371 Whirlpool Skin Panel
3	SKIN, CONTROL PANEL (BLACK)
3B	W11113207 Whirlpool Skin Panel
4	W11261167 Whirlpool Electronic Control Board + Core
5	W11248652 Whirlpool Blower
6	W11537624 Whirlpool Antenna Assembly
7	W10681157 Whirlpool Fan Cover
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10728475 Whirlpool Foam Seal
12	W10655465 Whirlpool Mounting Bracket
13	W10318158 Whirlpool Access Cover Assembly
14	W10588732 Whirlpool Cover Access
15	W10655467 Whirlpool Side Cover
16	W10618105 Whirlpool Spacer
