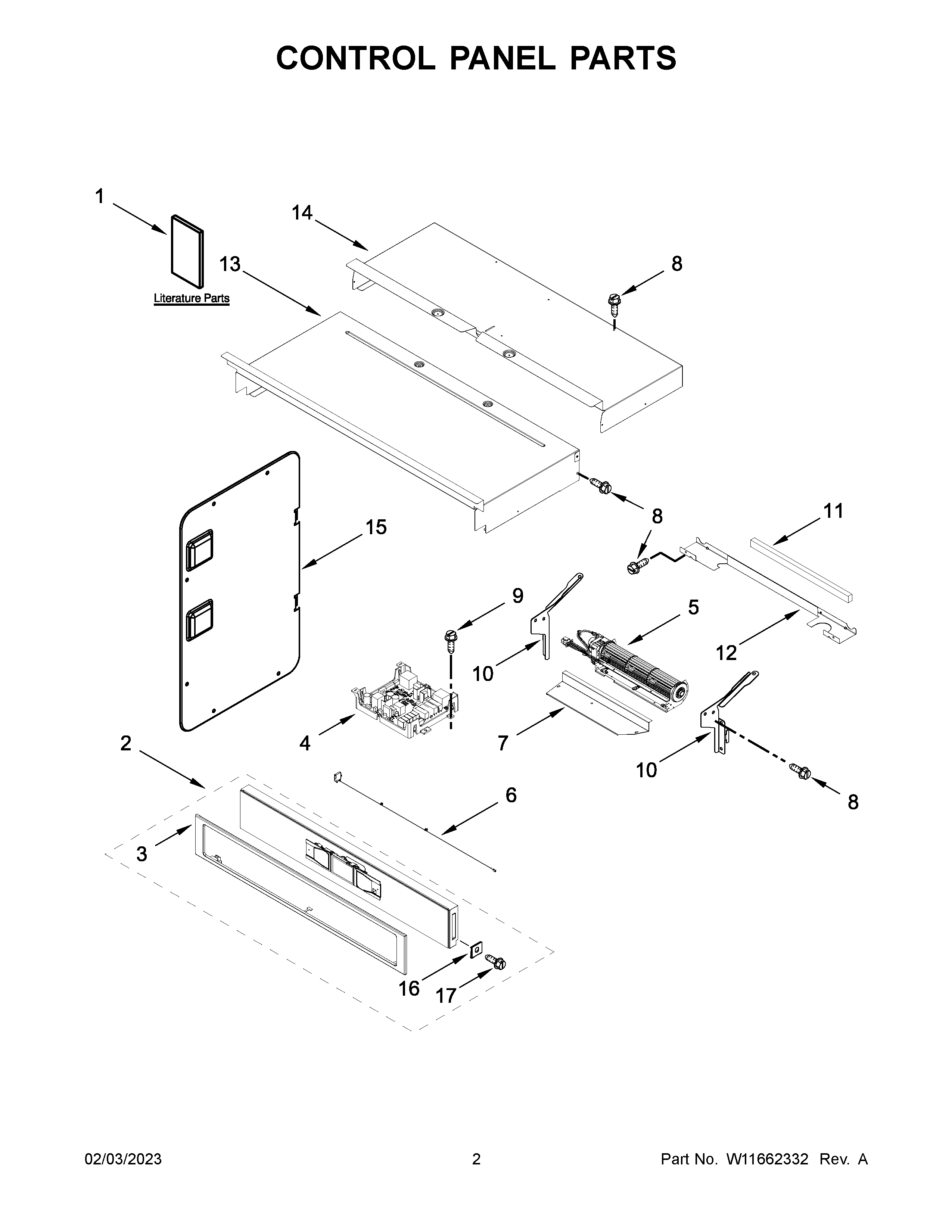

WOC54EC0HS22 02 – CONTROL PANEL PARTS

WOC54EC0HS22 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11356990 Whirlpool Wire Harness
NIW11602626 Whirlpool Oven Microwave Hardware
NIW11539494 Whirlpool Wire Harness
NIW11546965 Whirlpool Wire Harness
NIW11578580 Whirlpool Wire Harness
NIHARNESS, INPUT
NIHARNESS, INTERLOCK
NIHARNESS, SIGNAL
NIW11356991 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NIW11727826 Whirlpool Wire Harness
NIW11659376 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NI4448664 Whirlpool Oven Mounting Bracket
NI4450800 Whirlpool Oven Screw
1AQUICK START GUIDE
1OWNER'S MANUAL
1BTECH SHEET
2APANL-CNTRL
2W11600630 Whirlpool Control Panel
2BW11600321 Whirlpool Microwave Control Panel
3AW11109371 Whirlpool Skin Panel
3SKIN, CONTROL PANEL (BLACK)
3BW11113207 Whirlpool Skin Panel
4W11261167 Whirlpool Electronic Control Board + Core
5BLOWER
6W11537624 Whirlpool Antenna Assembly
7W10681157 Whirlpool Fan Cover
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12DIVIDER, CHASSIS BACK
13W10318158 Whirlpool Access Cover Assembly
14W10588732 Whirlpool Cover Access
15W10655467 Whirlpool Side Cover
16WP4450118 Whirlpool Nut
17SCREW (BLACK)
