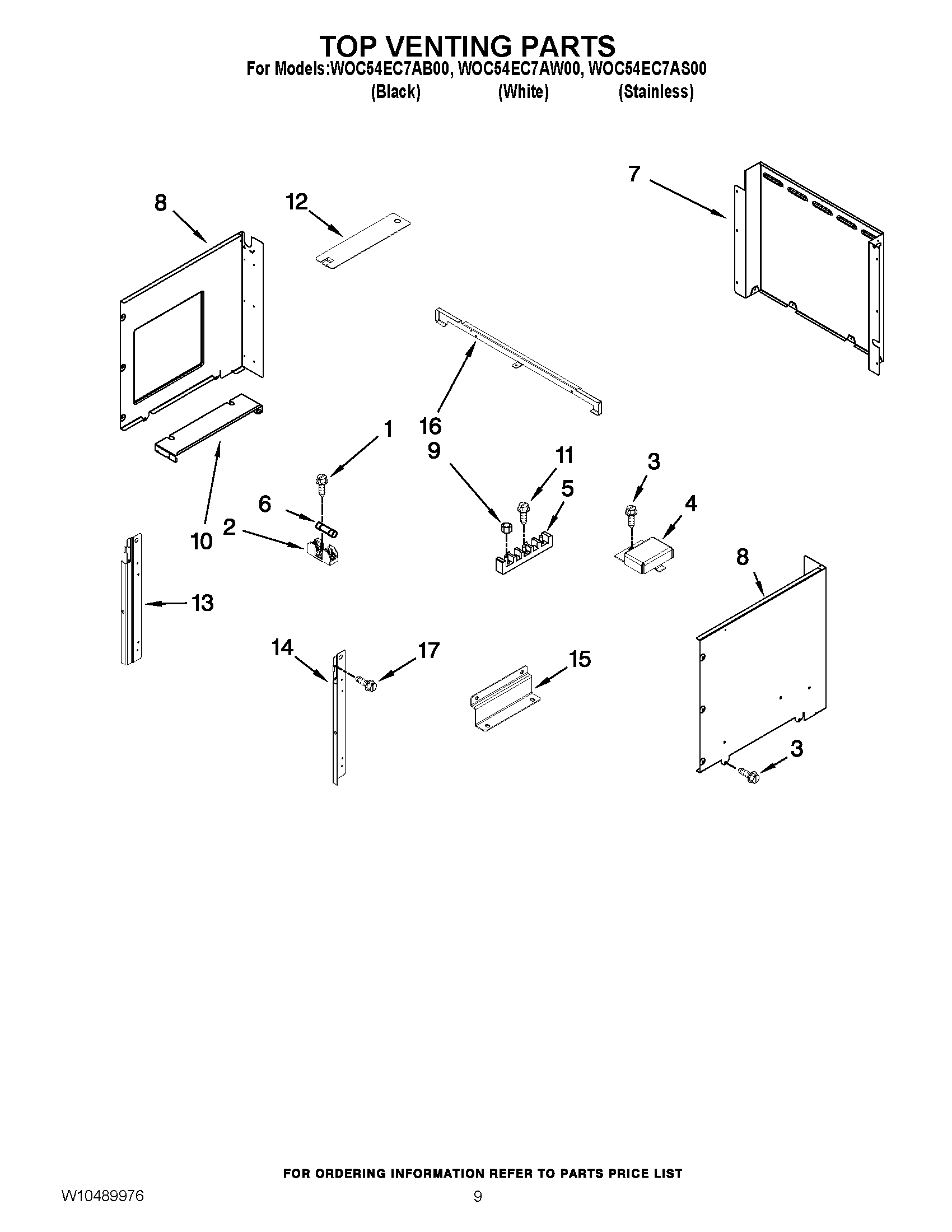

WOC54EC7AB00 07 – TOP VENTING PARTS

Products

Position	Product
1	WP4449154 Whirlpool Screw
2	4454949 Whirlpool Oven Fuse Block
3	SCREW
4	8285593 Whirlpool Oven Wire Cover
5	BLOCK, TERMINAL
6	WPW10017410 Whirlpool Fuse
7	W10283000 Whirlpool Chassis Assembly
8	SIDE, COMBO (RIGHT HAND)
8	SIDE, COMBO (LEFT HAND)
9	Nut
10	SUPPORT, MICROWAVE MODULE
11	Screw
12	W10356437 Whirlpool Cover Access
13	W10360516 Whirlpool Mounting Bracket
14	W10360518 Whirlpool Mounting Bracket
15	SIDE, BRACKET
16	W10283023 Whirlpool Support
17	WP3400832 Whirlpool Screw
