WOC54EC7AB01 02 – OVEN PARTS
Written by
in

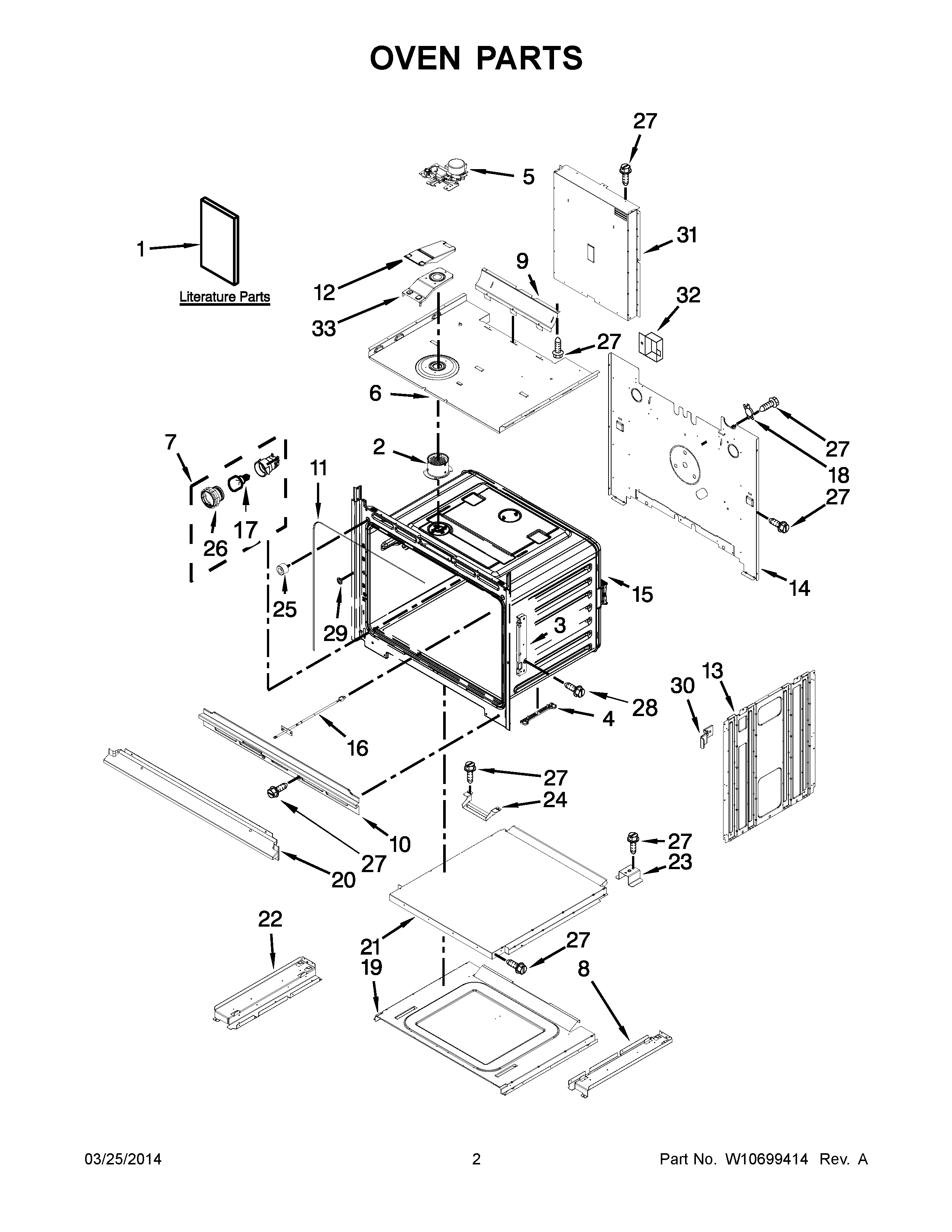

WOC54EC7AB01 02 – OVEN PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10520716 Whirlpool Insulation
NI
W11688333 Whirlpool Insulation
1
USE & CARE GUIDE (CONVECTION OVEN)
1
INSTALLATION INSTRUCTIONS
1
MICROWAVE
1
TECH SHEET (ENGLISH)
2
W11240525 Whirlpool Vent Tube
3
W11613828 Whirlpool Hinge Receptacle
4
WPW10318220 Whirlpool Spacer
5
W10883049 Whirlpool Door Latch
6
CHASSIS, TOP
7
WPW10734063 Whirlpool Indicator Light
8
W10283021 Whirlpool Support
9
W10904163 Whirlpool Vent Deflector
10
W10283043 Whirlpool Oven Vent Assembly
11
W10856596 Whirlpool Oven Gasket
12
W10616810 Whirlpool Exhaust Cover
13
SIDE, CHASSIS
14
W10813734 Whirlpool Rear Cover
16
PROBE, SENSOR
17
WPW10412711 Whirlpool Light Bulb
18
WP4449751 Whirlpool Range Oven Thermostat Fix
19
BASE, CHASSIS
20
WPW10327375 Whirlpool Oven Vent
20
WPW10351280 Whirlpool Oven Vent
21
WPW10283008 Whirlpool Access Cover
22
W10283020 Whirlpool Support
23
W10213759 Whirlpool Support
24
W10351308 Whirlpool Support Bracket
25
WPW10351278 Whirlpool Bumper
26
WPW10412722 Whirlpool Light Lens
27
SCREW
28
WPW10254050 Whirlpool Screw
29
W10759525 Whirlpool Grommet
30
W10347649 Whirlpool Spacer
31
COVER, BACK DUCT
32
8285593 Whirlpool Oven Wire Cover
33
W10616809 Whirlpool Vent Tube
←
