WOC54EC7AB02 02 – OVEN PARTS

WOC54EC7AB02 02 – OVEN PARTS

Written by

in

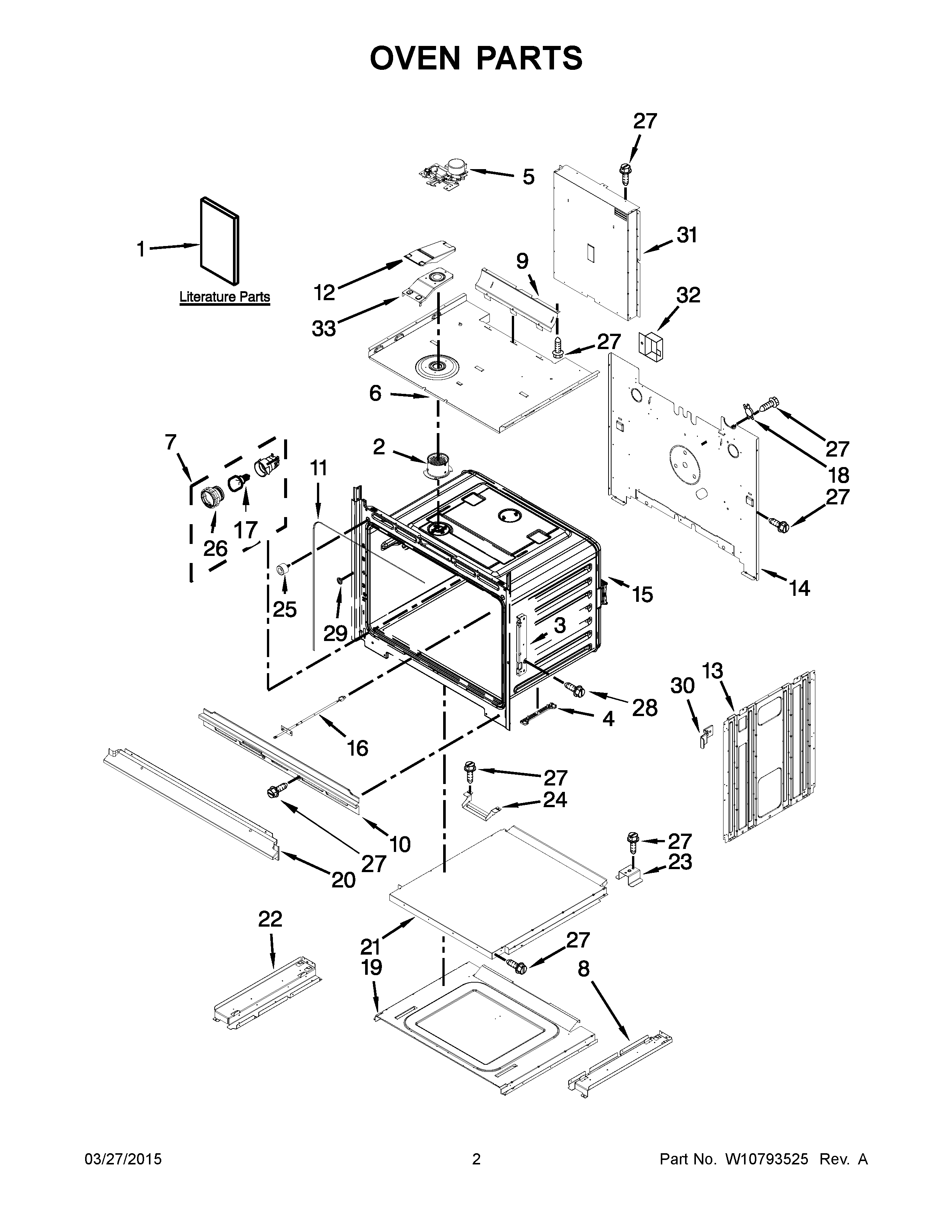

WOC54EC7AB02 02 – OVEN PARTS

Products

PositionProduct
NIW10520716 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11688333 Whirlpool Insulation
1BMICROWAVE
1INSTALLATION INSTRUCTIONS
1CTECH SHEET (ENGLISH)
1AUSE & CARE GUIDE (CONVECTION OVEN)
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4W11240831 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6TOP, CHASSIS
7WPW10734063 Whirlpool Indicator Light
8W10283021 Whirlpool Support
9W10904163 Whirlpool Vent Deflector
10W10283043 Whirlpool Oven Vent Assembly
11W10856596 Whirlpool Oven Gasket
12W10616810 Whirlpool Exhaust Cover
13SIDE, CHASSIS
14W10813734 Whirlpool Rear Cover
16W10859573 Whirlpool Range Oven Temperature Sensor
17WPW10412711 Whirlpool Light Bulb
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20WPW10327375 Whirlpool Oven Vent
20AWPW10351280 Whirlpool Oven Vent
21WPW10283008 Whirlpool Access Cover
22W10283020 Whirlpool Support
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25WPW10351278 Whirlpool Bumper
26WPW10412722 Whirlpool Light Lens
27SCREW
28WPW10254050 Whirlpool Screw
29W10759525 Whirlpool Grommet
30W11376811 Whirlpool Spacer Assembly
31COVER, BACK DUCT
328285593 Whirlpool Oven Wire Cover
33W10616809 Whirlpool Vent Tube
