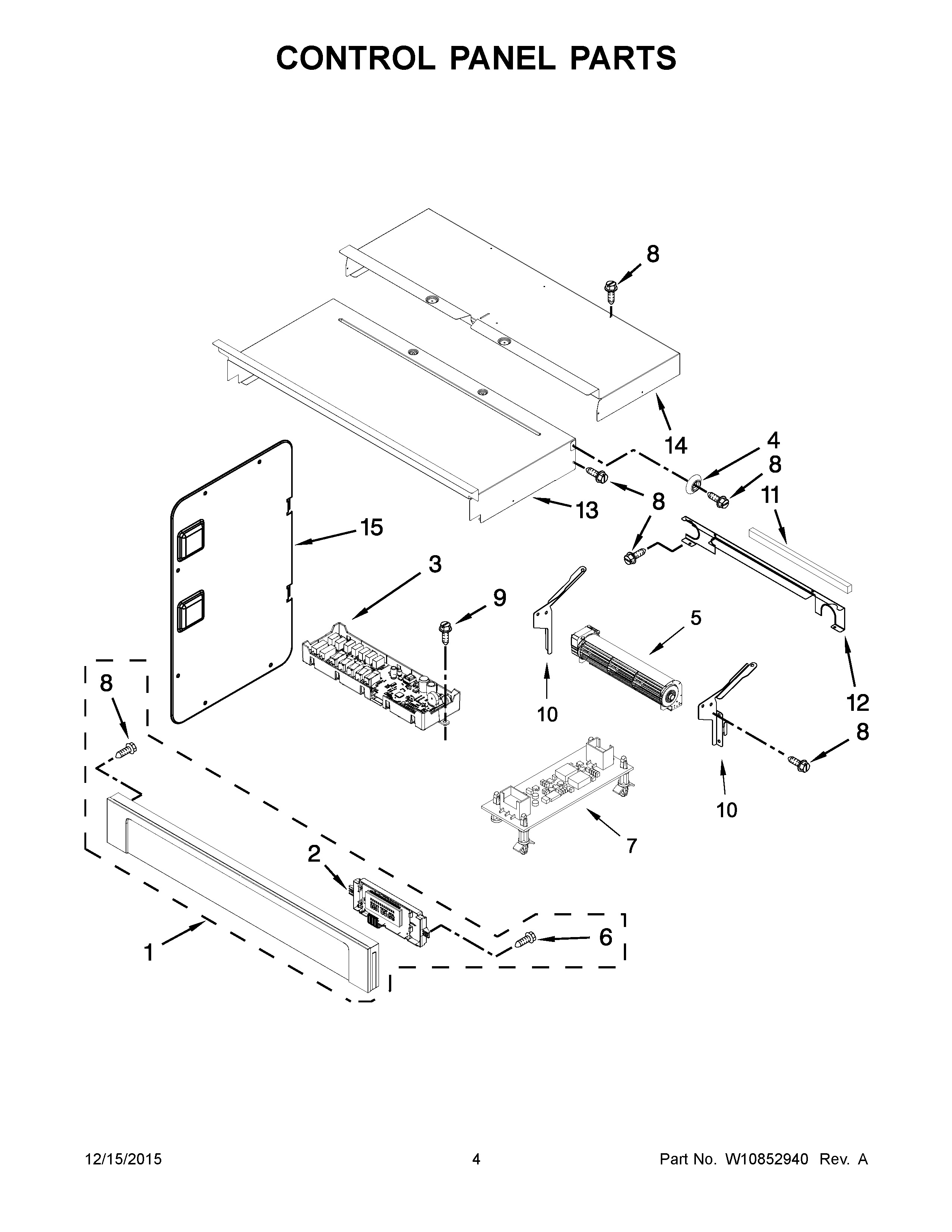

WOC54EC7AB03 03 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10778560 Whirlpool Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W10573327 Whirlpool Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	W10190263 Whirlpool Clip Assembly
NI	W11157222 Whirlpool Wire Harness
NI	W11356970 Whirlpool Microwave Wire Harness
NI	W10389372 Whirlpool Microwave Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1B	W10864185 Whirlpool Control Panel
1A	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
1	W10812357 Whirlpool Control Panel
2	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3	W10852640 Whirlpool Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	WPW10661038 Whirlpool Blower
6	SCREW
7	WPW10412514 Whirlpool Electronic Control Board + Core
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	CHASSIS, BACK DIVIDER
13	W10318159 Whirlpool Access Cover
14	CHASSIS, COVER TOP BACK 27``
15	W10655467 Whirlpool Side Cover
