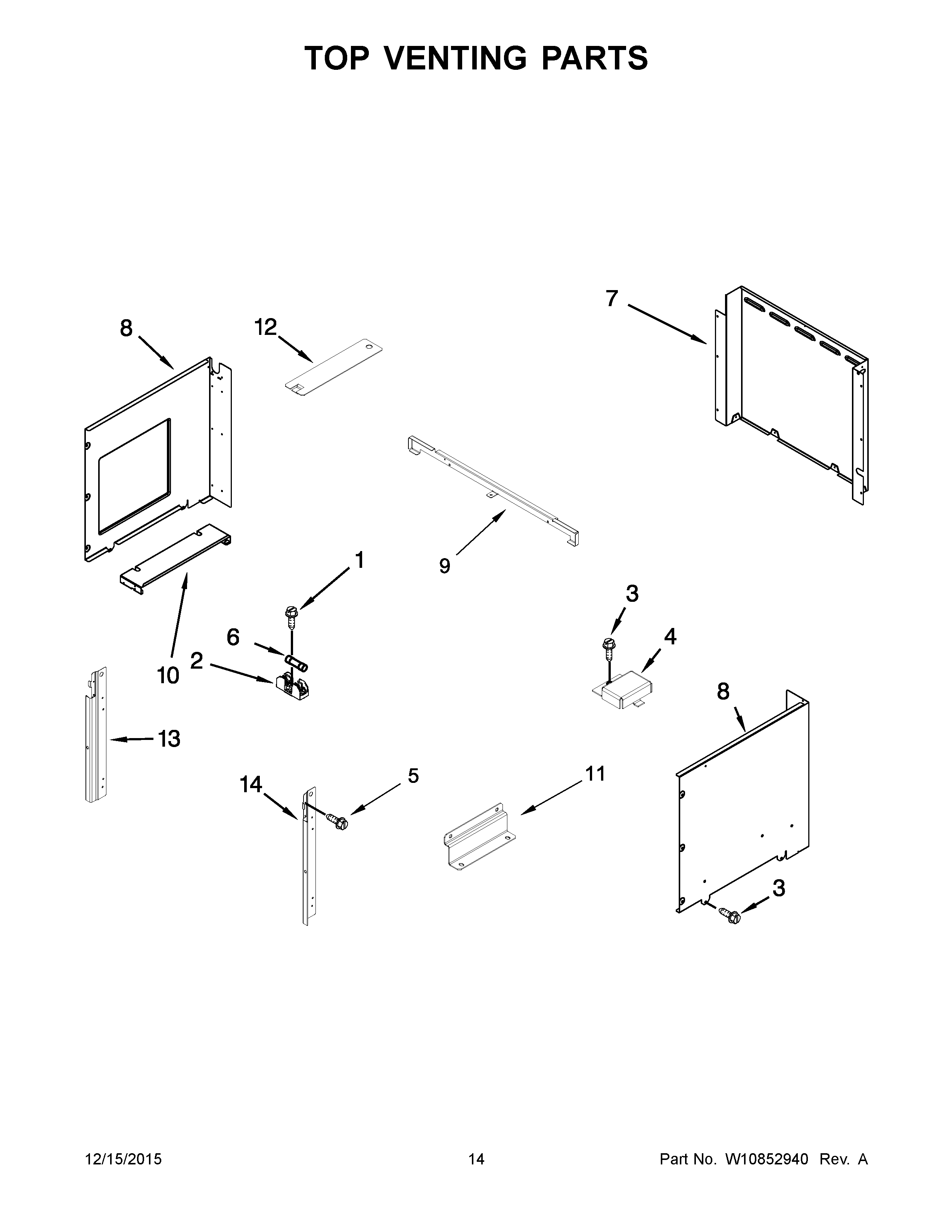

WOC54EC7AB03 08 – TOP VENTING PARTS

Products

Position	Product
1	SCREW
2	4454949 Whirlpool Oven Fuse Block
3	SCREW
4	8285593 Whirlpool Oven Wire Cover
5	WP3400832 Whirlpool Screw
6	WPW10017410 Whirlpool Fuse
7	W10519703 Whirlpool Rear Cover
8	CHASSIS, COMBO SIDE (LEFT)
8A	W10283029 Whirlpool Side Cover
9	W10283023 Whirlpool Support
10	SUPPORT, MICROWAVE MODULE
11	SIDE, BRACKET
12	W10356437 Whirlpool Cover Access
13	W10360516 Whirlpool Mounting Bracket
14	W10360518 Whirlpool Mounting Bracket
