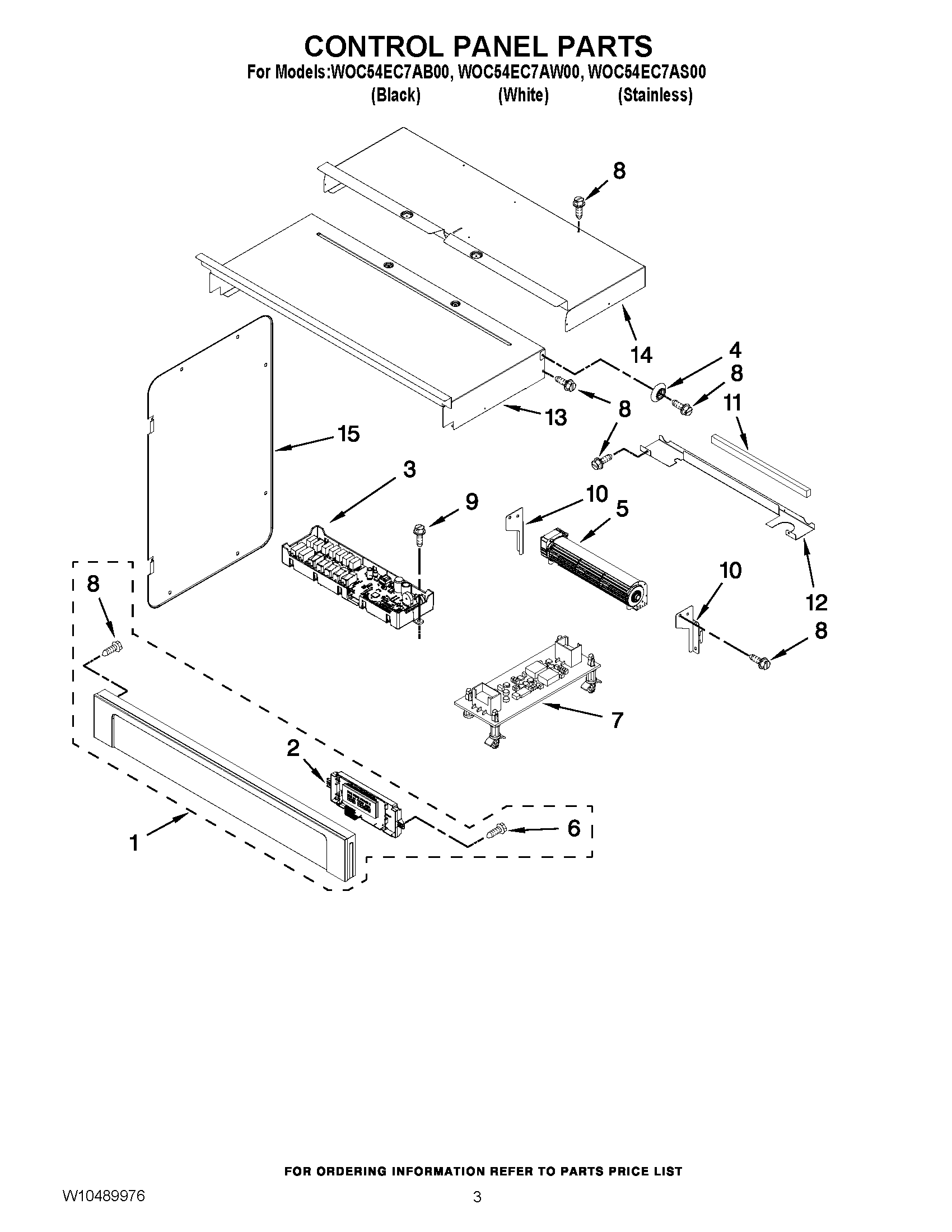

WOC54EC7AS00 02 – CONTROL PANEL PARTS

WOC54EC7AS00 02 – CONTROL PANEL PARTS

Written by

in

WOC54EC7AS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
1W10861744 Whirlpool Control Panel
1W10861741 Whirlpool Control Panel
2WPW10532438 Whirlpool Electronic Control Board + Core
3WPW10632435-includeCORE Whirlpool WPW10632435 Refrigerator Electronic Control Board + Core
4W10363824 Whirlpool Spacer
5BLOWER (LOWER)
6SCREW
7WPW10412514 Whirlpool Electronic Control Board + Core
8SCREW
9SCREW
10BRACKET, BLOWER LEFT
10W10283078 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12WPW10318191 Whirlpool Mounting Bracket
13W10318159 Whirlpool Access Cover
14CHASSIS, COVER TOP BACK 27“
15CHASSIS, SIDE
