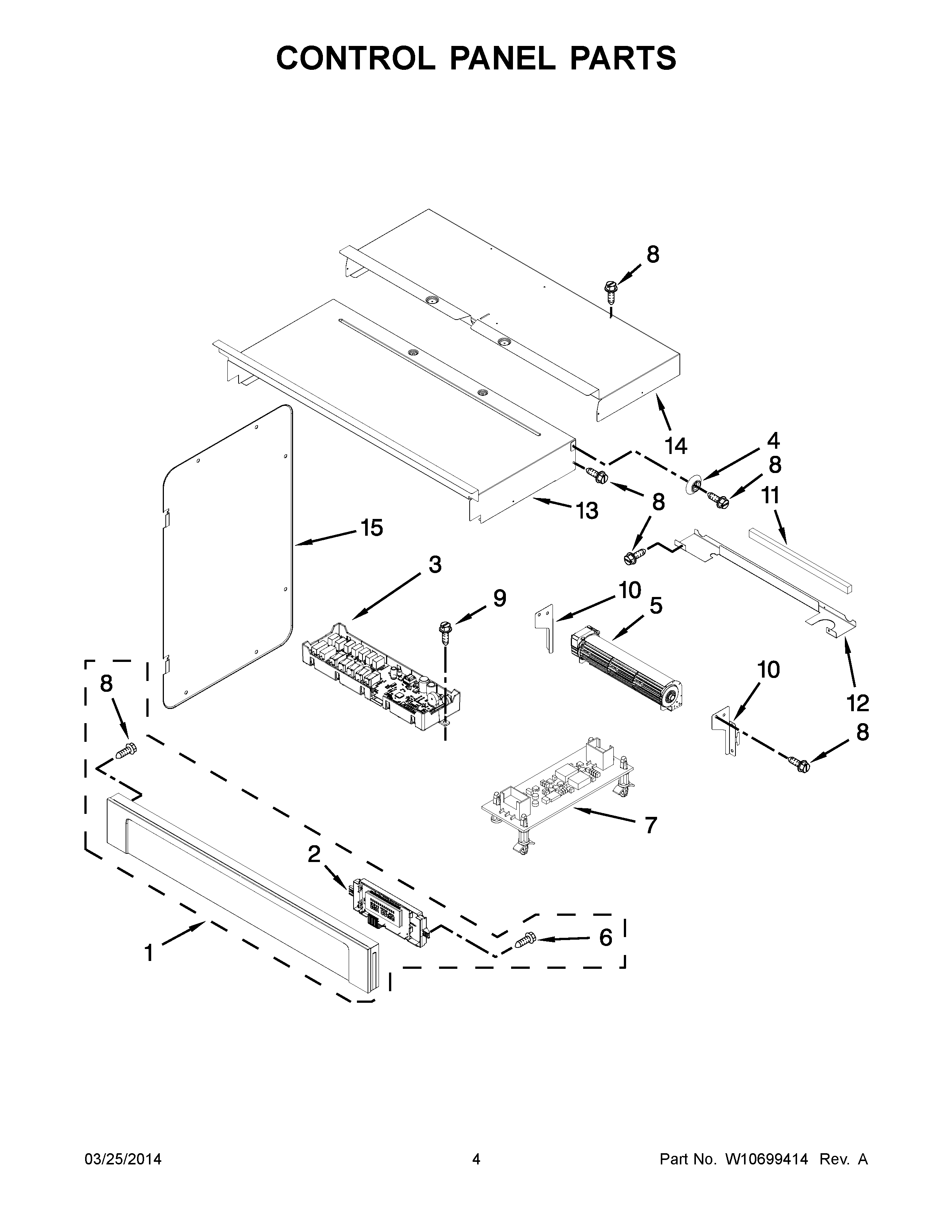

WOC54EC7AS01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
1	W10861744 Whirlpool Control Panel
1	W10861741 Whirlpool Control Panel
2	WPW10532438 Whirlpool Electronic Control Board + Core
3	WPW10632435-includeCORE Whirlpool WPW10632435 Refrigerator Electronic Control Board + Core
4	W10363824 Whirlpool Spacer
5	WPW10661038 Whirlpool Blower
6	SCREW
7	WPW10412514 Whirlpool Electronic Control Board + Core
8	SCREW
9	SCREW
10	BRACKET, BLOWER LEFT
10	W10283078 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10509164 Whirlpool Mounting Bracket
13	W10318159 Whirlpool Access Cover
14	CHASSIS, COVER TOP BACK 27``
15	CHASSIS, SIDE
