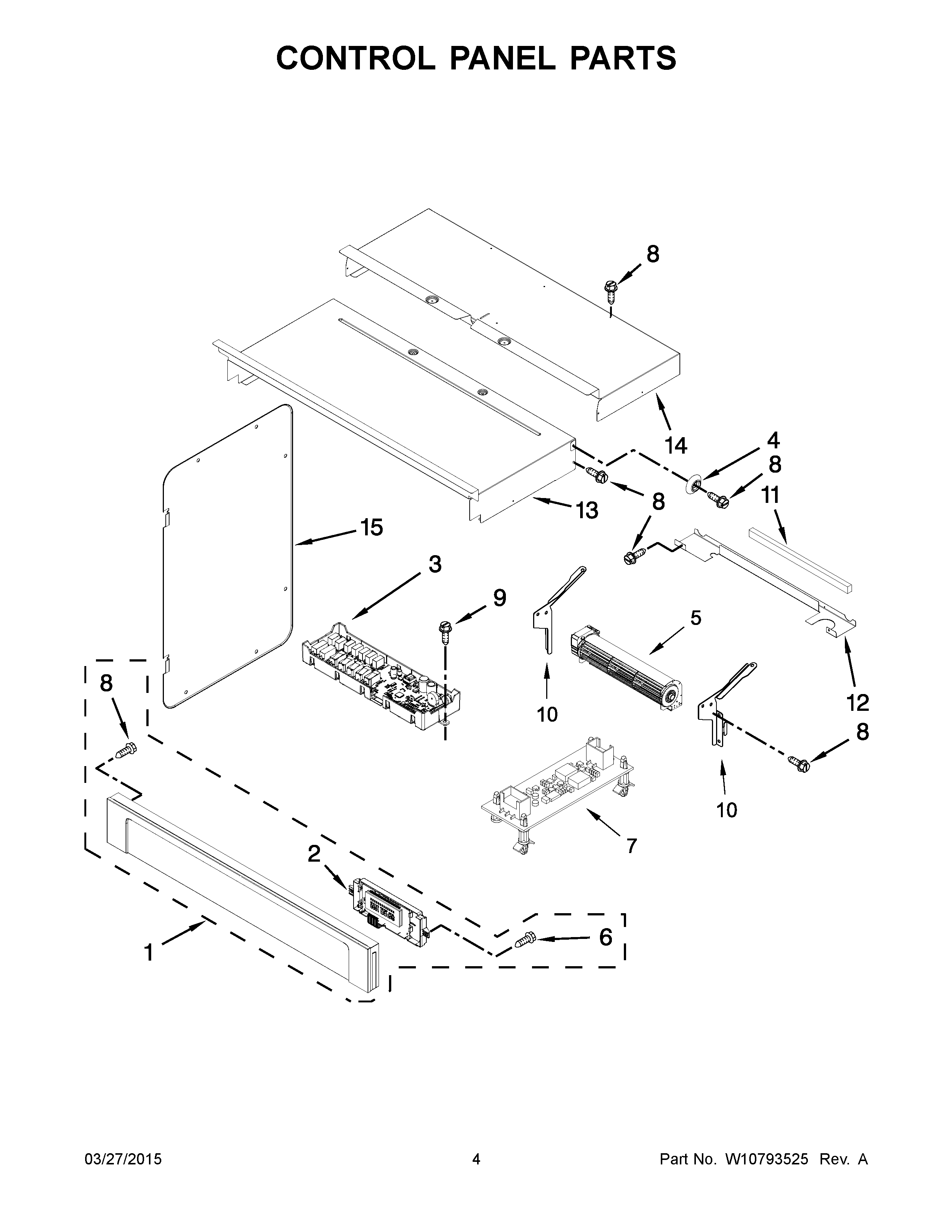

WOC54EC7AS02 03 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10601518 Whirlpool Wire Harness
NI	W10286223 Whirlpool Wire Harness
NI	W11356970 Whirlpool Microwave Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W10389372 Whirlpool Microwave Wire Harness
NI	W10573327 Whirlpool Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	W10190263 Whirlpool Clip Assembly
NI	4450800 Whirlpool Oven Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	4448664 Whirlpool Oven Mounting Bracket
1A	W10786404 Whirlpool Control Panel
1B	W10861744 Whirlpool Control Panel
1	W10861741 Whirlpool Control Panel
2	WPW10532438 Whirlpool Electronic Control Board + Core
3	WPW10632435-includeCORE Whirlpool WPW10632435 Refrigerator Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	WPW10661038 Whirlpool Blower
6	SCREW
7	WPW10412514 Whirlpool Electronic Control Board + Core
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	W10655465 Whirlpool Mounting Bracket
13	W10318159 Whirlpool Access Cover
14	CHASSIS, COVER TOP BACK 27``
15	CHASSIS, SIDE
