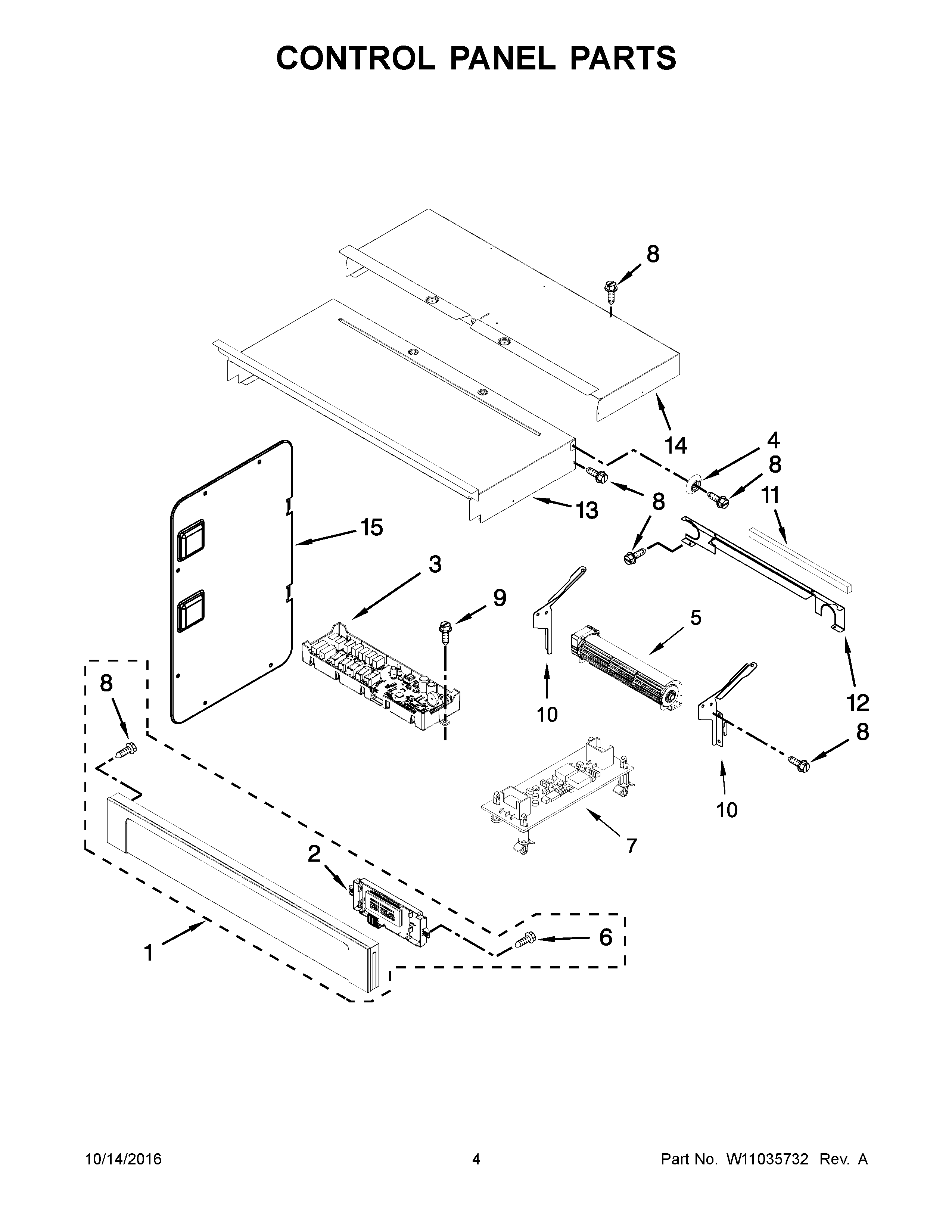

WOC54EC7AS04 03 – CONTROL PANEL PARTS
Written by
in
WOC54EC7AS04 03 – CONTROL PANEL PARTS
Products
Position
Product
NI
W11226264 Whirlpool Wire Harness
NI
W11132989 Whirlpool Wire Harness
NI
W10389372 Whirlpool Microwave Wire Harness
NI
16515 Whirlpool Clip
NI
W10874060 Whirlpool Microwave Wire Harness
NI
4450800 Whirlpool Oven Screw
NI
4448664 Whirlpool Oven Mounting Bracket
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11136135 Whirlpool Wire Harness
NI
W11157222 Whirlpool Wire Harness
NI
W11356970 Whirlpool Microwave Wire Harness
1
W10864185 Whirlpool Control Panel
2
WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3
W11035599-includeCORE Whirlpool W11035599 Refrigerator Electronic Control Board + Core
4
W10618105 Whirlpool Spacer
5
W11245567 Whirlpool Blower Assembly
6
SCREW
7
WPW10412514 Whirlpool Electronic Control Board + Core
8
SCREW
9
SCREW
10A
W10655462 Whirlpool Mounting Bracket
10
W10655463 Whirlpool Bracket Mounting
11
W10491987 Whirlpool Foam Seal
12
CHASSIS, BACK DIVIDER
13
W10318159 Whirlpool Access Cover
14
CHASSIS, COVER TOP BACK 27“
15
W10655467 Whirlpool Side Cover
←
MA5C-3 02 – CONTROL SYSTEM
PDWF788P10SS MOTOR-PUMP MECHANISM
→
