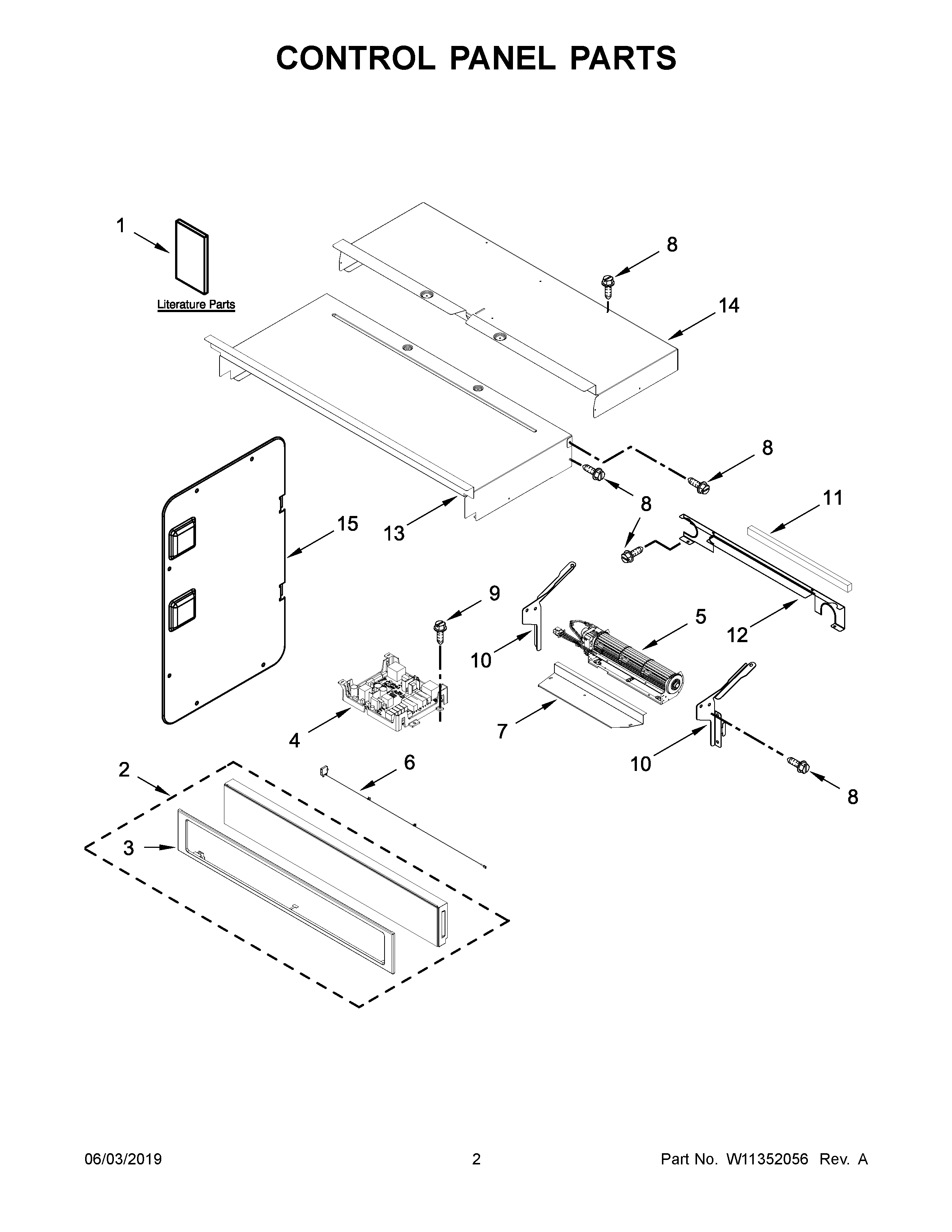

WOC54EC7HB02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11356991 Whirlpool Wire Harness
NI	W11356954 Whirlpool Microwave Wire Harness
NI	W11325605 Whirlpool Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W11356970 Whirlpool Microwave Wire Harness
NI	W11356977 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11356990 Whirlpool Wire Harness
NI	W11317200 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11316032 Whirlpool Wire Harness
1C	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE (OVEN)
1B	GUIDE, USE & CARE (MICROWAVE OVEN)
1D	GUIDE, INTERNET CONNECTIVITY
2A	W11367343 Whirlpool Console + Core
2	W11290642-includeCORE Whirlpool W11290642 Refrigerator Control Panel + Core
2B	W11367329 Whirlpool Console + Core
3B	W11112611 Whirlpool Control Panel
3A	SKIN, CONTROL PANEL (WHITE)
3	W11115276 Whirlpool Skin Panel
4	W11261167 Whirlpool Electronic Control Board + Core
5	W11248652 Whirlpool Blower
6	W11537624 Whirlpool Antenna Assembly
7	W10681157 Whirlpool Fan Cover
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	CHASSIS, BACK DIVIDER
13	W10318159 Whirlpool Access Cover
14	CHASSIS, COVER TOP BACK 27 IN WIFI
15	W10655467 Whirlpool Side Cover
