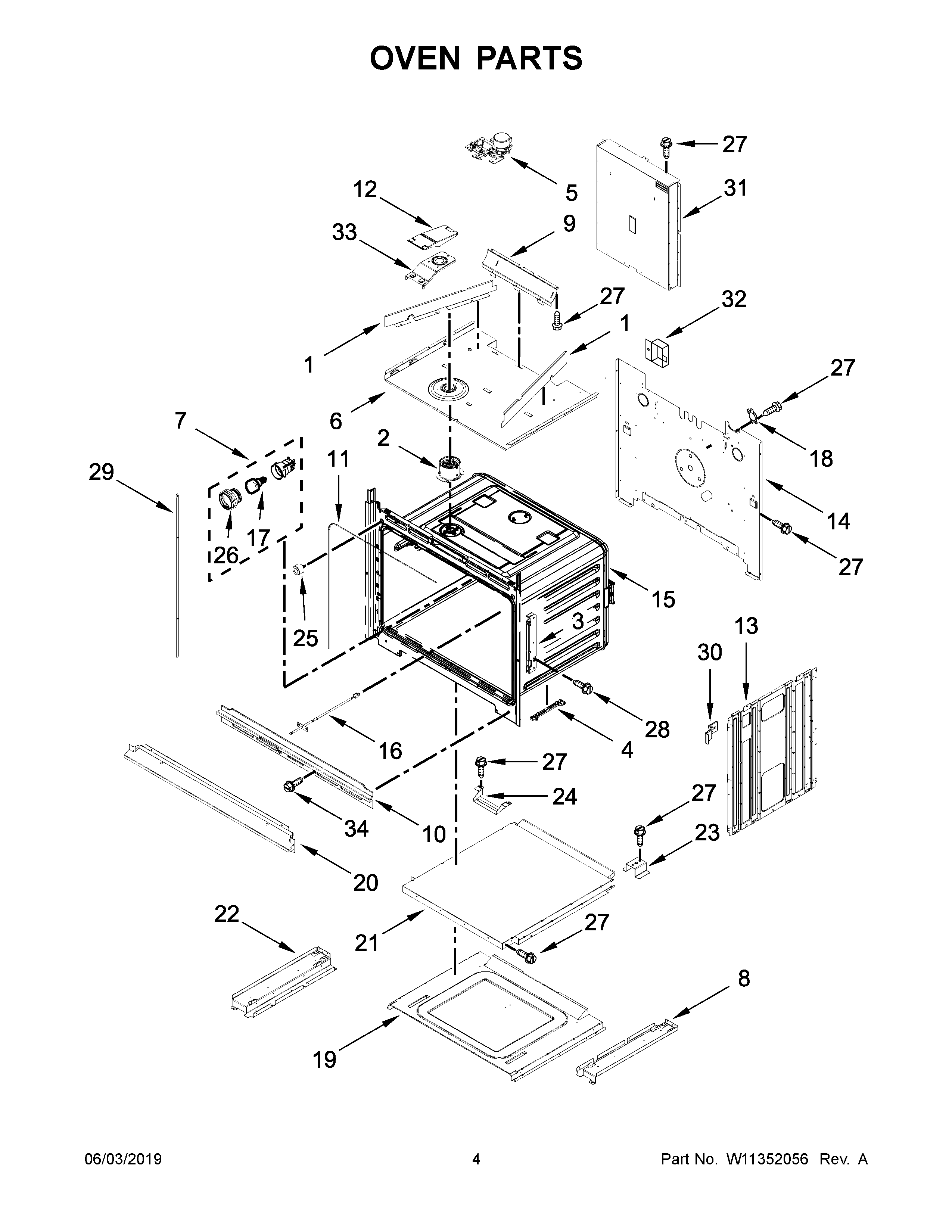

WOC54EC7HB02 03 – OVEN PARTS

Products

Position	Product
NI	W11688333 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10520716 Whirlpool Insulation
1	W10681156 Whirlpool Vent Deflector
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
7	WPW10734063 Whirlpool Indicator Light
8	W10283021 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	VENT, CENTER 27``
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	WPW10412711 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	WPW10327375 Whirlpool Oven Vent
20A	W10506345 Whirlpool Vent
20B	WPW10351280 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	W10283020 Whirlpool Support
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10412722 Whirlpool Light Lens
27	SCREW
28	WPW10254050 Whirlpool Screw
29A	W10536162 Whirlpool Microwave Trim Cover Kit
30	W10347649 Whirlpool Spacer
31	COVER, BACK DUCT
32	8285593 Whirlpool Oven Wire Cover
33	W10616809 Whirlpool Vent Tube
34	SCREW
