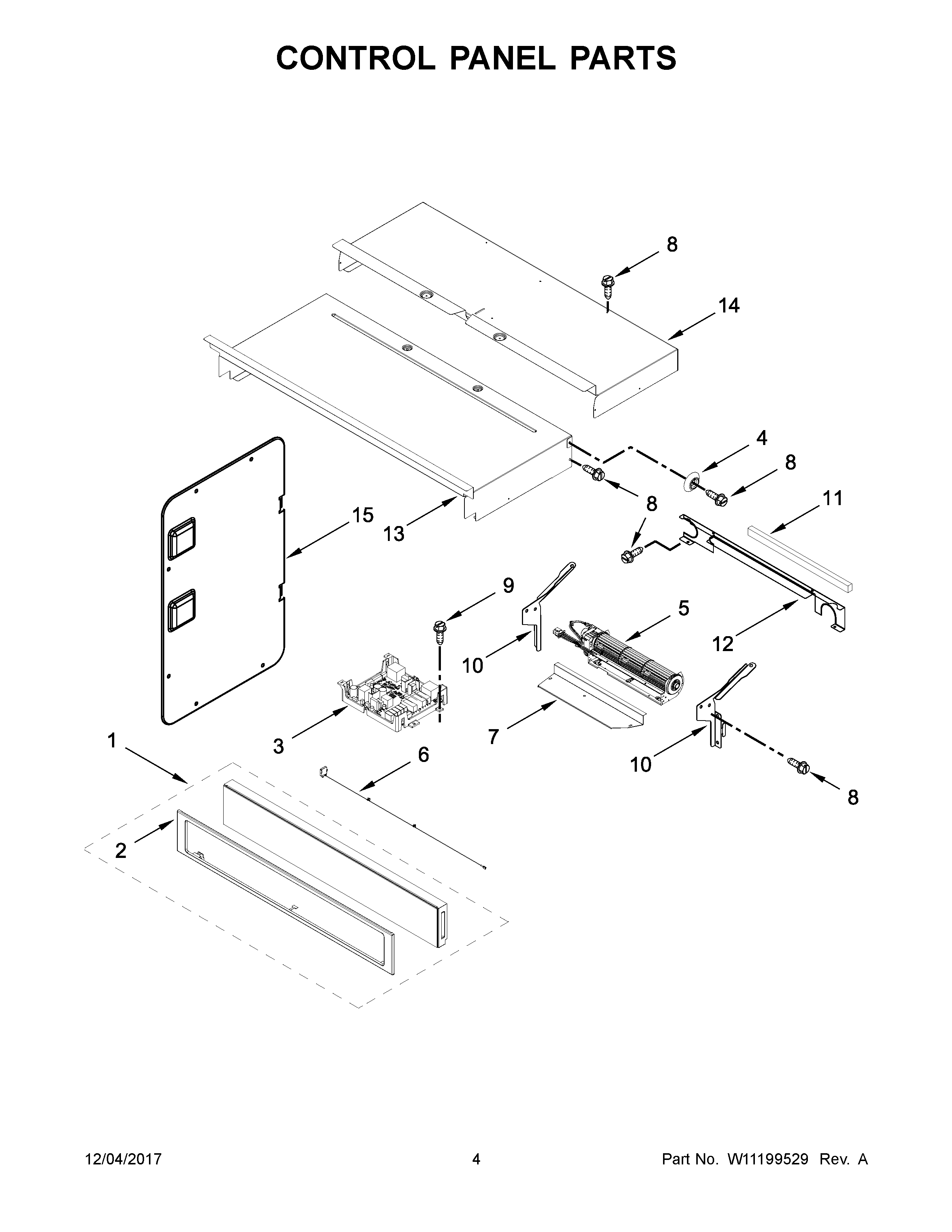

WOC54EC7HS00 03 – CONTROL PANEL PARTS

WOC54EC7HS00 03 – CONTROL PANEL PARTS

Written by

in

WOC54EC7HS00 03 – CONTROL PANEL PARTS

Products

PositionProduct
NIW10881998 Whirlpool Wire Harness
NIW10874060 Whirlpool Microwave Wire Harness
NIW11132989 Whirlpool Wire Harness
NIW11356954 Whirlpool Microwave Wire Harness
NIW11356977 Whirlpool Wire Harness
NIW11356970 Whirlpool Microwave Wire Harness
NI16515 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NIHARNESS, GROUND CONSOLE COMBO
NIW11356990 Whirlpool Wire Harness
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
1BW11367329 Whirlpool Console + Core
1W11290642-includeCORE Whirlpool W11290642 Refrigerator Control Panel + Core
1AW11367343 Whirlpool Console + Core
2BW11112611 Whirlpool Control Panel
2W11115276 Whirlpool Skin Panel
2ASKIN, CONTROL PANEL (WHITE)
3W11261167 Whirlpool Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11248652 Whirlpool Blower
6W11537624 Whirlpool Antenna Assembly
7W10681157 Whirlpool Fan Cover
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10728475 Whirlpool Foam Seal
12W10655465 Whirlpool Mounting Bracket
13W10318159 Whirlpool Access Cover
14CHASSIS, COVER TOP BACK 27 IN WIFI
15W10655467 Whirlpool Side Cover
