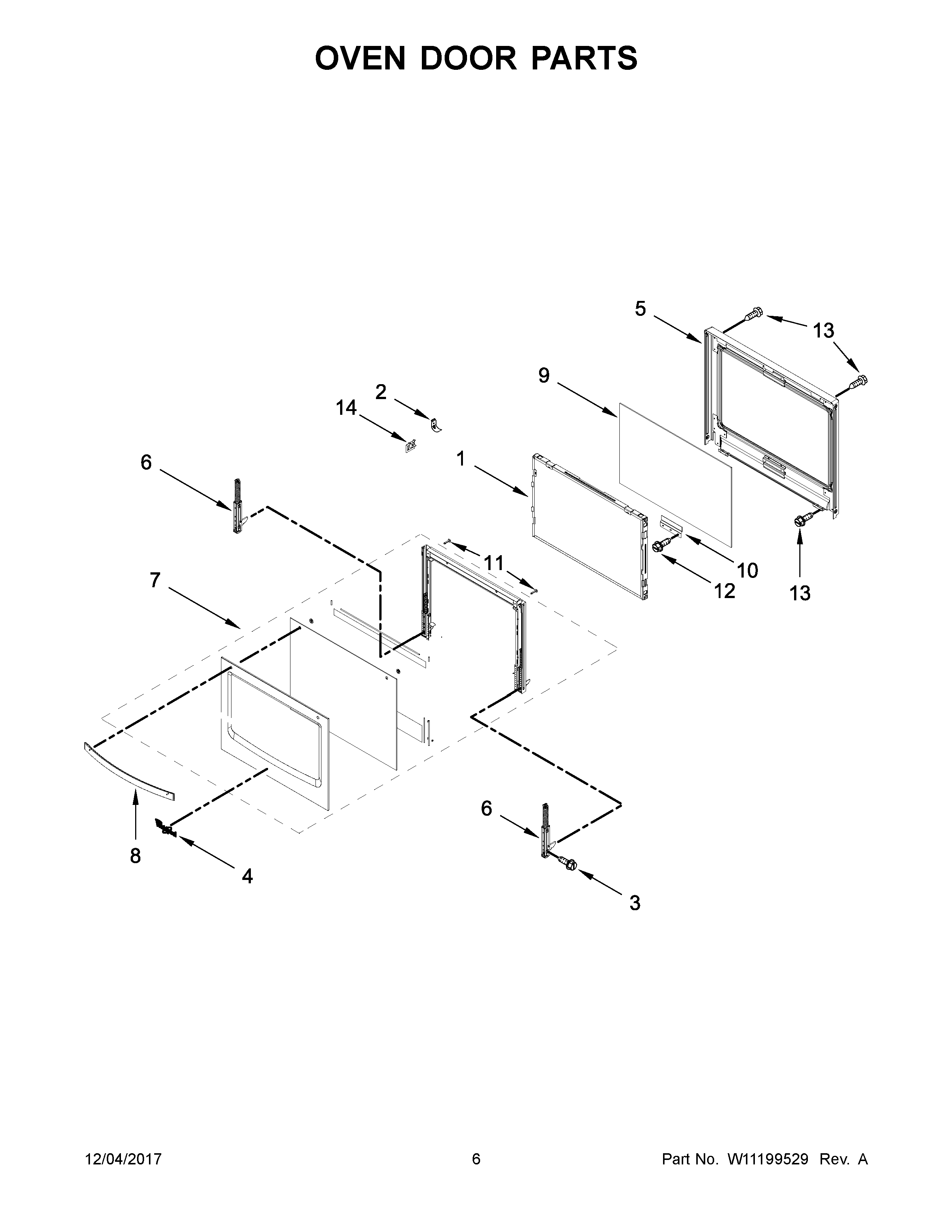

WOC54EC7HS00 04 – OVEN DOOR PARTS

WOC54EC7HS00 04 – OVEN DOOR PARTS

Written by

in

WOC54EC7HS00 04 – OVEN DOOR PARTS

Products

PositionProduct
1WPW10347597 Whirlpool Door Glass
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4W11178521 Whirlpool Dishwasher Nameplate
5WPW10320793 Whirlpool Glass Frame
6W11578949 Whirlpool Door Hinge
7BW11111694 Whirlpool Door Glass Assembly
7W11457681 Whirlpool Door Glass
7AW11203365 Whirlpool Glass Door
8BW11113204 Whirlpool Door Handle
8W11115278 Whirlpool Door Handle
8AW11200667 Whirlpool Door Handle
9WPW10284902 Whirlpool Door Glass
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13SCREW (BLACK)
14W11025615 Whirlpool Glass Bracket
