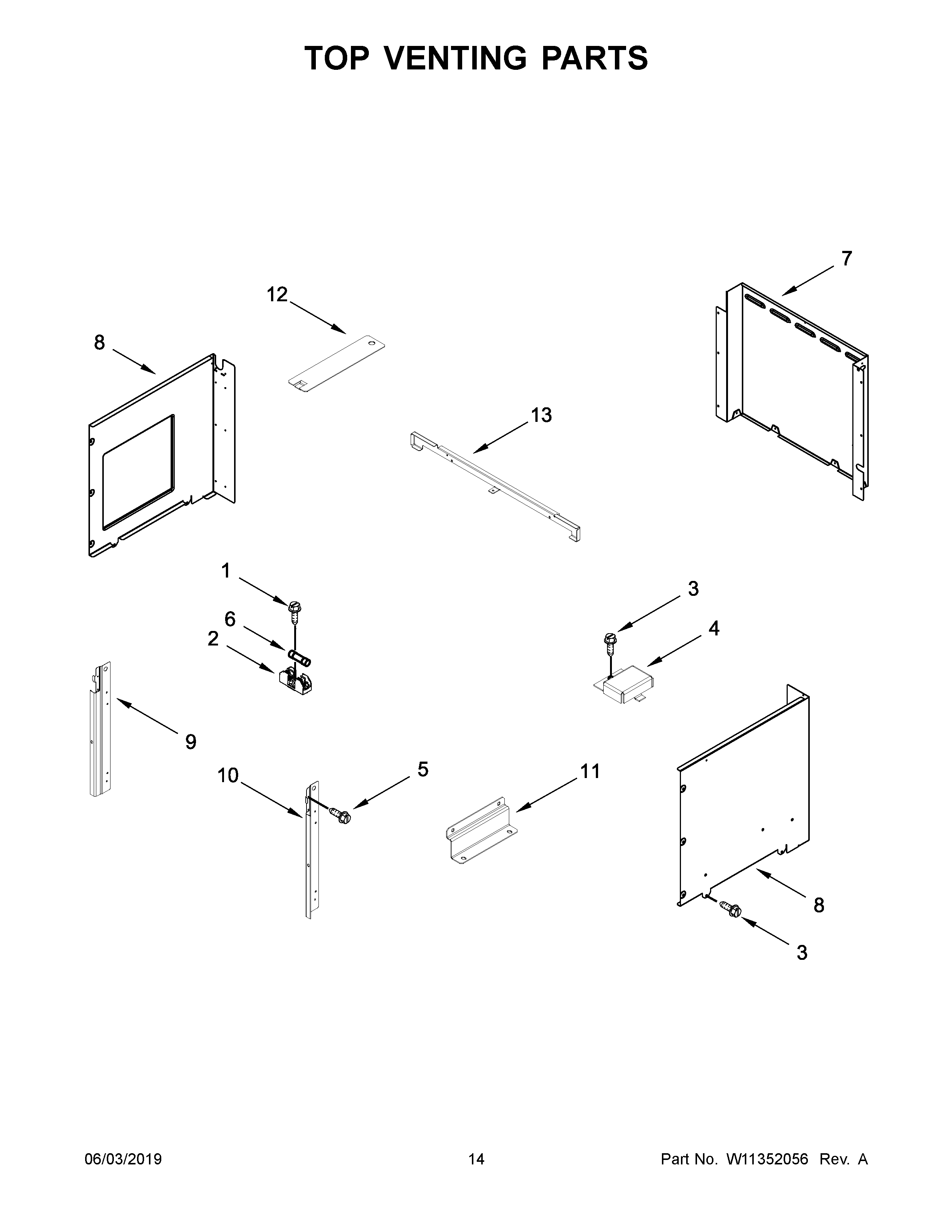

WOC54EC7HS02 08 – TOP VENTING PARTS

Products

Position	Product
1	SCREW
2	4454949 Whirlpool Oven Fuse Block
3	SCREW
4	8285593 Whirlpool Oven Wire Cover
5	SCREW (BLACK)
6	WPW10017410 Whirlpool Fuse
7	W11037653 Whirlpool Rear Cover
8	CHASSIS, COMBO SIDE (LEFT)
8A	W11037649 Whirlpool Side Cover
9	W10360516 Whirlpool Mounting Bracket
10	W10360518 Whirlpool Mounting Bracket
11	SIDE, BRACKET
12	W10356437 Whirlpool Cover Access
13	W10283023 Whirlpool Support
