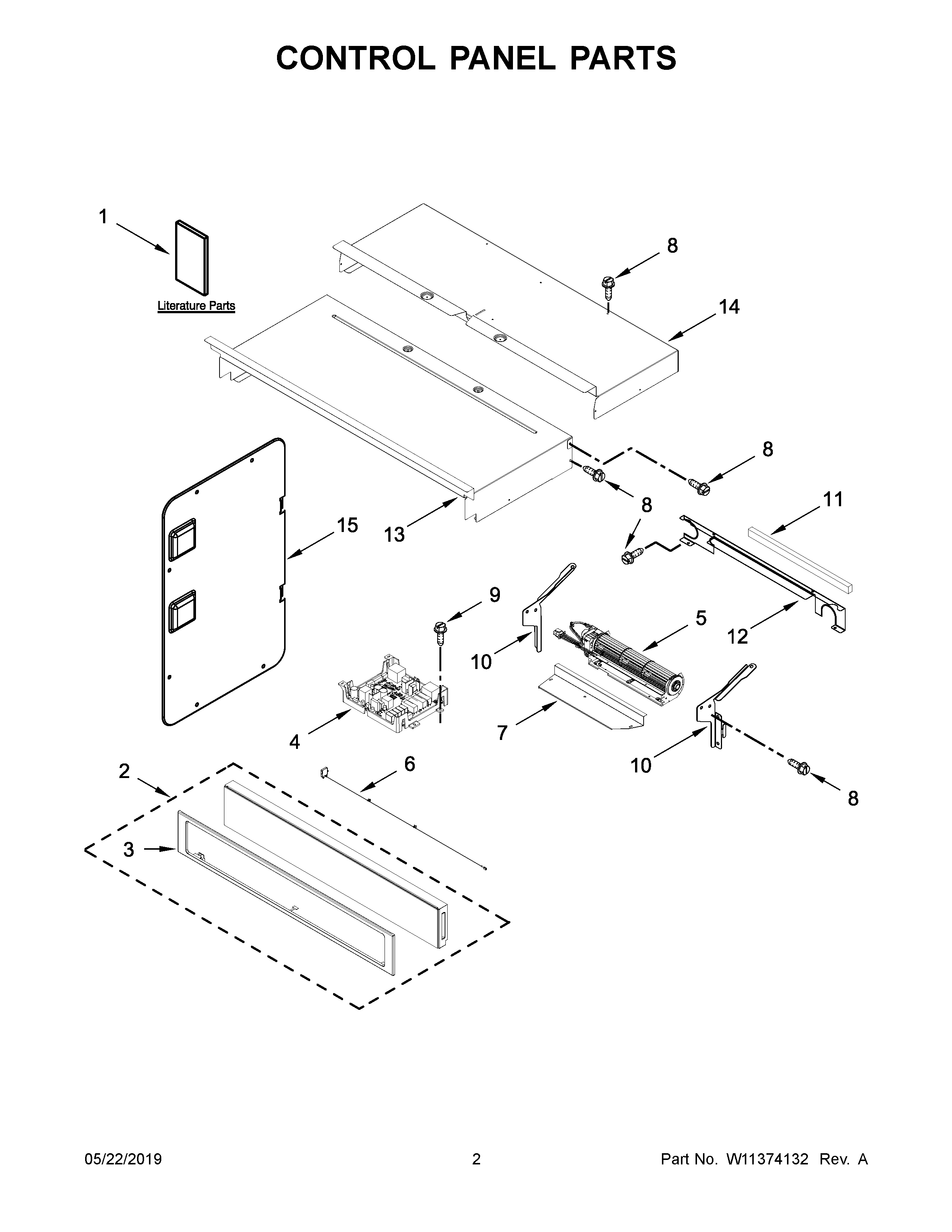

WOC54EC7HS03 02 – CONTROL PANEL PARTS

WOC54EC7HS03 02 – CONTROL PANEL PARTS

Written by

in

WOC54EC7HS03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11356991 Whirlpool Wire Harness
NIW11325605 Whirlpool Wire Harness
NIW11356954 Whirlpool Microwave Wire Harness
NIW11356968 Whirlpool Wire Harness
NIW10760039 Whirlpool Hardware
NIW11132989 Whirlpool Wire Harness
NIW11356970 Whirlpool Microwave Wire Harness
NIW11316032 Whirlpool Wire Harness
NIW11317200 Whirlpool Wire Harness
NIW11356990 Whirlpool Wire Harness
NIW11356977 Whirlpool Wire Harness
NI4450800 Whirlpool Oven Screw
NICABINET (NOT A SERVICEABLE PART)
NI4448664 Whirlpool Oven Mounting Bracket
NI16515 Whirlpool Clip
1BGUIDE, USE & CARE (MICROWAVE OVEN)
1INSTRUCTIONS, INSTALLATION
1DGUIDE, INTERNET CONNECTIVITY
1AGUIDE, USE & CARE (OVEN)
1CSHEET, TECH
2BW11367329 Whirlpool Console + Core
2AW11367343 Whirlpool Console + Core
2W11290642-includeCORE Whirlpool W11290642 Refrigerator Control Panel + Core
3W11115276 Whirlpool Skin Panel
3ASKIN, CONTROL PANEL (WHITE)
3BW11112611 Whirlpool Control Panel
4W11261167 Whirlpool Electronic Control Board + Core
5W11248652 Whirlpool Blower
6W11537624 Whirlpool Antenna Assembly
7W10681157 Whirlpool Fan Cover
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12CHASSIS, BACK DIVIDER
13W10318159 Whirlpool Access Cover
14CHASSIS, COVER TOP BACK 27 IN WIFI
15W10655467 Whirlpool Side Cover
