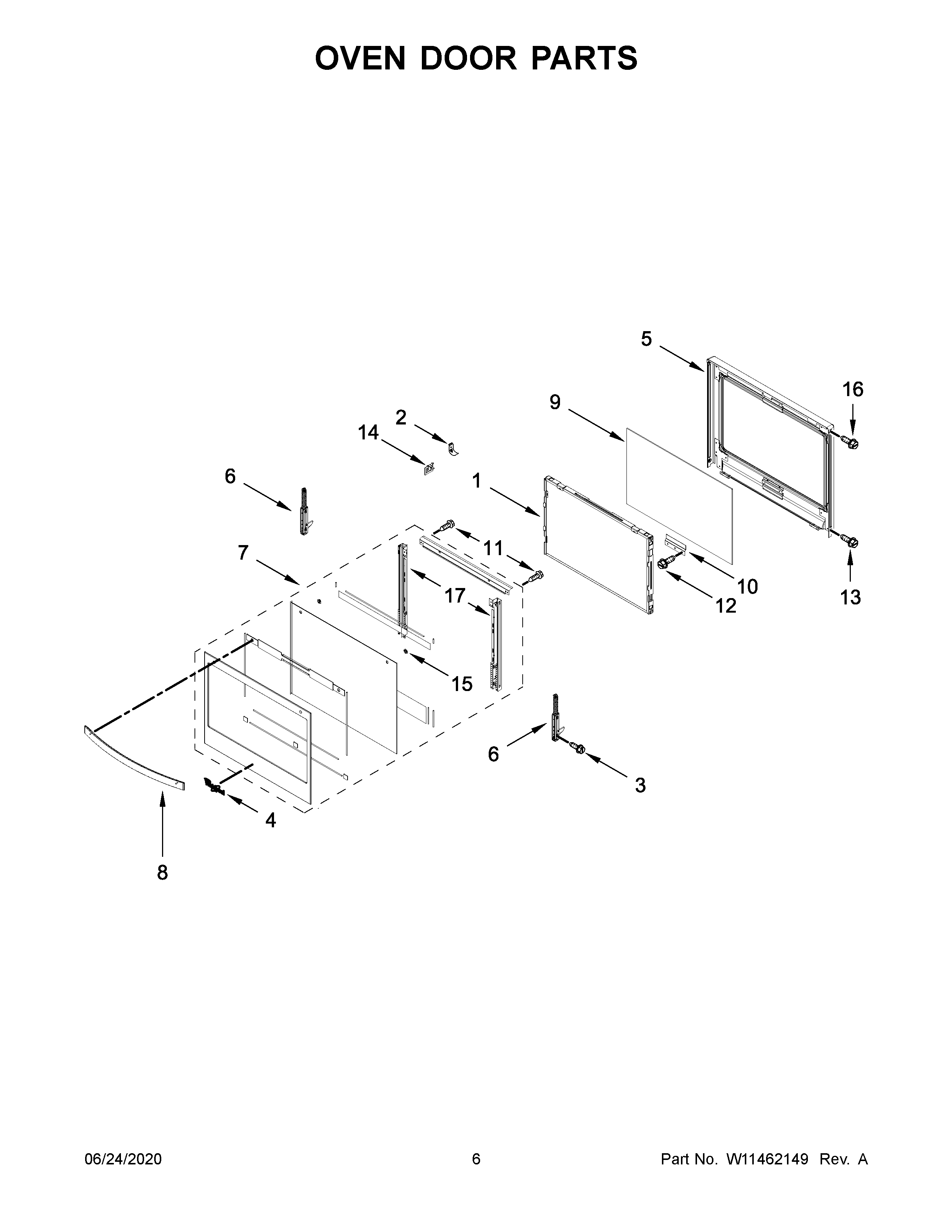

WOC54EC7HS04 04 – OVEN DOOR PARTS

Products

Position	Product
1	W11458357 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W11178521 Whirlpool Dishwasher Nameplate
5	WPW10320793 Whirlpool Glass Frame
6	W11411963 Whirlpool Door Hinge Assembly
7B	W11457689 Whirlpool Door Glass
7	W11457681 Whirlpool Door Glass
7A	W11457684 Whirlpool Door Glass
8B	W11113204 Whirlpool Door Handle
8A	W11200667 Whirlpool Door Handle
8	W11115278 Whirlpool Door Handle
9	W11458359 Whirlpool Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW (BLACK)
14	W11025615 Whirlpool Glass Bracket
15	W11676355 Whirlpool Washer
16	SCREW
17A	W11355411 Whirlpool Support Bracket
17	W11355410 Whirlpool Support Bracket Assembly
