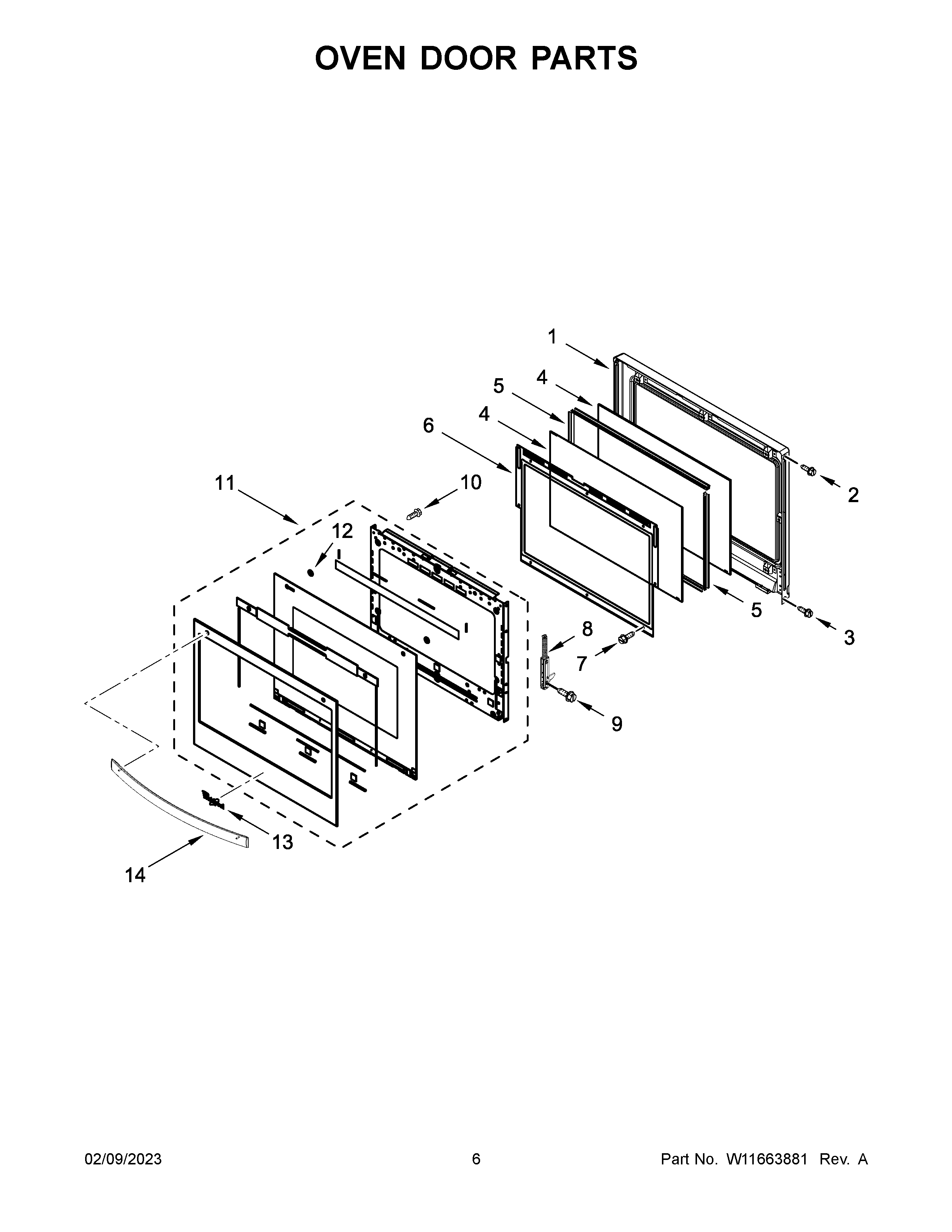

WOC54EC7HS22 04 – OVEN DOOR PARTS

Products

Position	Product
1	W11598186 Whirlpool Glass Frame
2	SCREW
3	W11617225 Whirlpool Oven Screw
4	WPW10284902 Whirlpool Door Glass
5	W11598187 Whirlpool Bracket Assembly
6	W11598188 Whirlpool Retainer
7	SCREW
8A	W11296080 Whirlpool Door Hinge
8	W11296079 Whirlpool Door Hinge
9	WP3196183 Whirlpool Screw
10	W11602624 Whirlpool Oven Screw
11	W11600328 Whirlpool Door Glass
11B	W11600331 Whirlpool Oven Door Glass
11A	DOOR ASSEMBLY (WHITE)
12	W11676355 Whirlpool Washer
13	W11178521 Whirlpool Dishwasher Nameplate
14A	W11200667 Whirlpool Door Handle
14	W11115278 Whirlpool Door Handle
14B	W11113204 Whirlpool Door Handle
