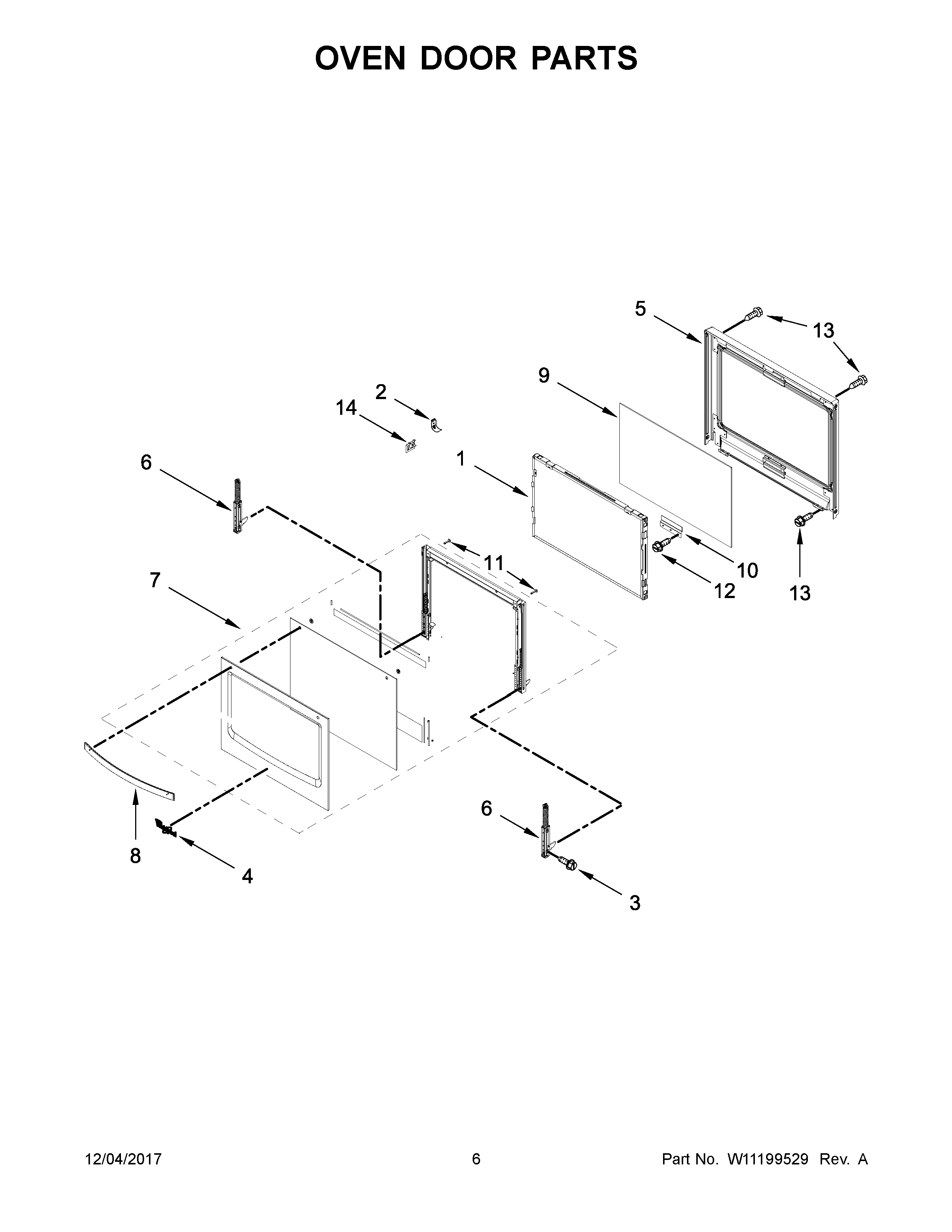

WOC54EC7HW00 04 – OVEN DOOR PARTS

Products

Position	Product
1	WPW10347597 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W11178521 Whirlpool Dishwasher Nameplate
5	WPW10320793 Whirlpool Glass Frame
6	W11578949 Whirlpool Door Hinge
7B	W11111694 Whirlpool Door Glass Assembly
7	W11457681 Whirlpool Door Glass
7A	W11203365 Whirlpool Glass Door
8B	W11113204 Whirlpool Door Handle
8	W11115278 Whirlpool Door Handle
8A	W11200667 Whirlpool Door Handle
9	WPW10284902 Whirlpool Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW (BLACK)
14	W11025615 Whirlpool Glass Bracket
