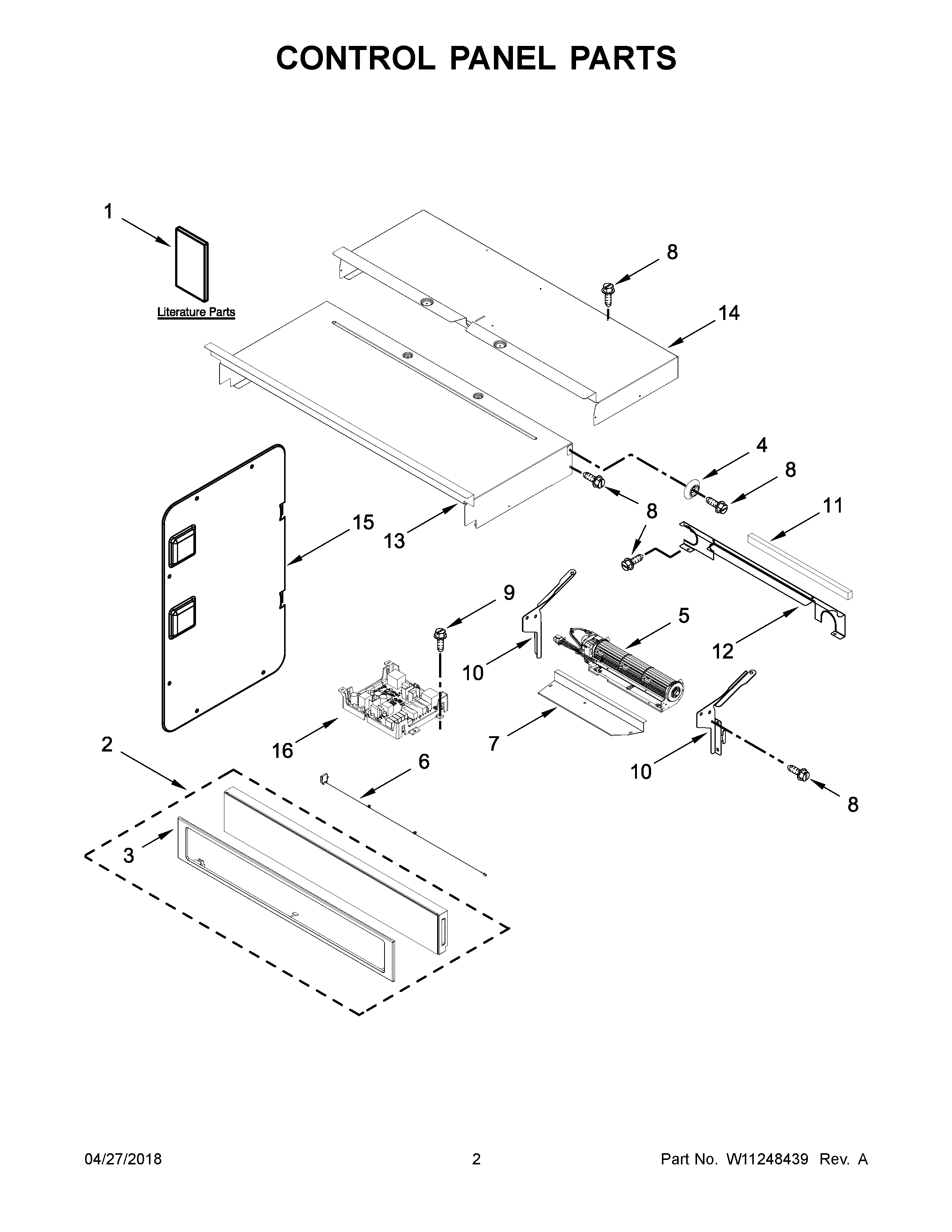

WOC54EC7HW01 02 – CONTROL PANEL PARTSadmin2025-04-26T13:12:13+00:00WOC54EC7HW01 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | HARNESS, SIGNAL |
| NI | W11356970 Whirlpool Microwave Wire Harness |
| NI | W10874060 Whirlpool Microwave Wire Harness |
| NI | W11132989 Whirlpool Wire Harness |
| NI | W10760039 Whirlpool Hardware |
| NI | W11356954 Whirlpool Microwave Wire Harness |
| NI | W11356977 Whirlpool Wire Harness |
| NI | 16515 Whirlpool Clip |
| NI | 4448664 Whirlpool Oven Mounting Bracket |
| NI | HARNESS, MAIN |
| NI | W11356991 Whirlpool Wire Harness |
| NI | W11356990 Whirlpool Wire Harness |
| NI | 4450800 Whirlpool Oven Screw |
| NI | CABINET (NOT A SERVICEABLE PART) |
| 1A | GUIDE, USE & CARE (OVEN) |
| 1B | GUIDE, USE & CARE (MICROWAVE OVEN) |
| 1D | GUIDE, INTERNET CONNECTIVITY |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1C | SHEET, TECH |
| 2 | W11290642-includeCORE Whirlpool W11290642 Refrigerator Control Panel + Core |
| 2A | W11367343 Whirlpool Console + Core |
| 2B | W11367329 Whirlpool Console + Core |
| 3 | W11115276 Whirlpool Skin Panel |
| 3A | SKIN, CONTROL PANEL (WHITE) |
| 3B | W11112611 Whirlpool Control Panel |
| 4 | W10618105 Whirlpool Spacer |
| 5 | W11248652 Whirlpool Blower |
| 6 | W11537624 Whirlpool Antenna Assembly |
| 7 | W10681157 Whirlpool Fan Cover |
| 8 | SCREW |
| 9 | SCREW |
| 10 | W10655463 Whirlpool Bracket Mounting |
| 10A | W10655462 Whirlpool Mounting Bracket |
| 11 | W10491987 Whirlpool Foam Seal |
| 12 | CHASSIS, BACK DIVIDER |
| 13 | W10318159 Whirlpool Access Cover |
| 14 | CHASSIS, COVER TOP BACK 27 IN WIFI |
| 15 | W10655467 Whirlpool Side Cover |
| 16 | W11261167 Whirlpool Electronic Control Board + Core |
