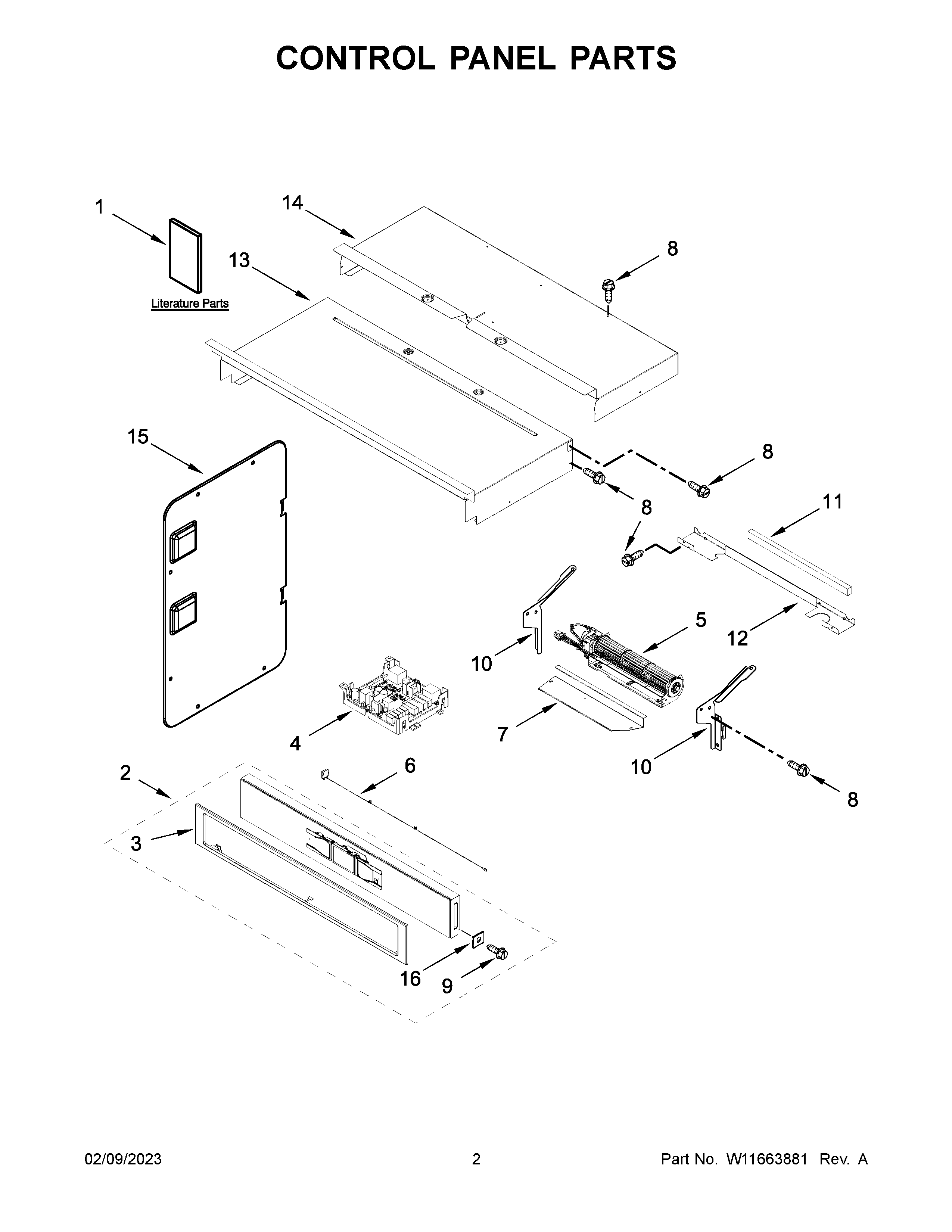

WOC54EC7HW22 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11659376 Whirlpool Wire Harness
NI	W11356990 Whirlpool Wire Harness
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11356991 Whirlpool Wire Harness
NI	HARNESS, SIGNAL
NI	16515 Whirlpool Clip
NI	W11727826 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	TECH SHEET
2B	W11600330 Whirlpool Control Panel
2A	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
2	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
3B	W11112611 Whirlpool Control Panel
3A	SKIN, CONTROL PANEL (WHITE)
3	W11115276 Whirlpool Skin Panel
4	W11261167 Whirlpool Electronic Control Board + Core
5	BLOWER
6	W11537624 Whirlpool Antenna Assembly
7	W10681157 Whirlpool Fan Cover
8	SCREW
9	SCREW (BLACK)
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	DIVIDER, CHASSIS BACK
13	W10318159 Whirlpool Access Cover
14	CHASSIS, COVER TOP BACK 27 IN WIFI
15	W10655467 Whirlpool Side Cover
16	WP4450118 Whirlpool Nut
