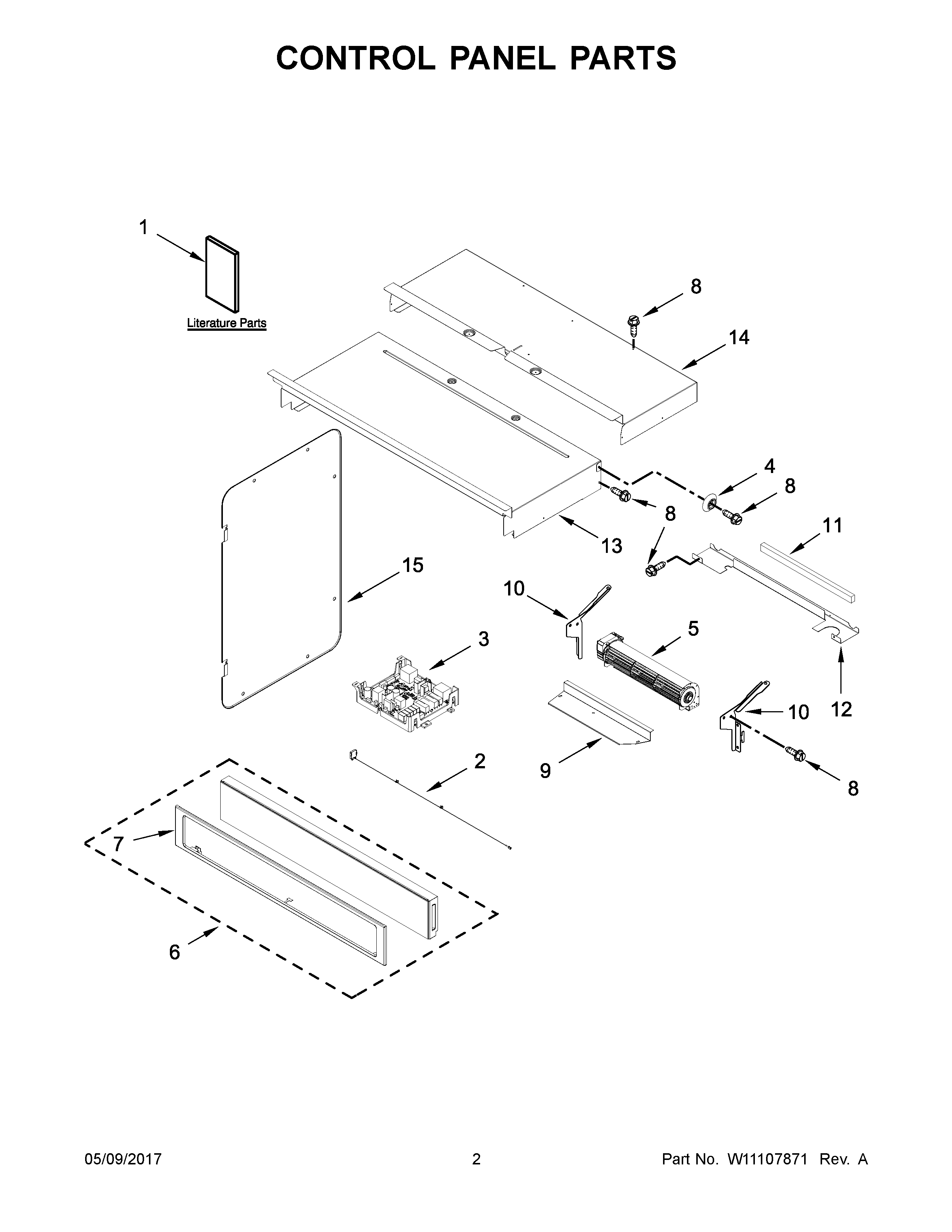

WOC75EC0HB00 02 – CONTROL PANEL PARTS

WOC75EC0HB00 02 – CONTROL PANEL PARTS

Written by

in

WOC75EC0HB00 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11226264 Whirlpool Wire Harness
NIW11356977 Whirlpool Wire Harness
NIHARNESS, MAIN
NIW11356970 Whirlpool Microwave Wire Harness
NIW10874060 Whirlpool Microwave Wire Harness
NI4450950 Whirlpool Oven Conduit
NI16515 Whirlpool Clip
NIWPW10339879 Whirlpool Wire Tie
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, GROUND CONSOLE COMBO
NIW11356954 Whirlpool Microwave Wire Harness
NIW11132989 Whirlpool Wire Harness
NIW11356990 Whirlpool Wire Harness
1DSHEET, TECH
1EDIAGRAM, WIRING
1GUIDE, USE & CARE (OVEN)
1BINSTRUCTIONS, INSTALLATION
1AGUIDE, USE & CARE (MICROWAVE OVEN)
1CGUIDE, INTERNET CONNECTIVITY
2W11537624 Whirlpool Antenna Assembly
3W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11248652 Whirlpool Blower
6W11281220 Whirlpool Console + Core
6CW11428562 Whirlpool Console + Core
6BW11428561 Whirlpool Console + Core
6AW11351632 Whirlpool Console + Core
7SKIN, CONTROL PANEL (BLACK)
7AW11109371 Whirlpool Skin Panel
7CSKIN, CONTROL PANEL (BLACK STAINLESS)
7BW11113207 Whirlpool Skin Panel
8SCREW
9W10681157 Whirlpool Fan Cover
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10728475 Whirlpool Foam Seal
12W10655465 Whirlpool Mounting Bracket
13W10318158 Whirlpool Access Cover Assembly
14W10588732 Whirlpool Cover Access
15W10655467 Whirlpool Side Cover
