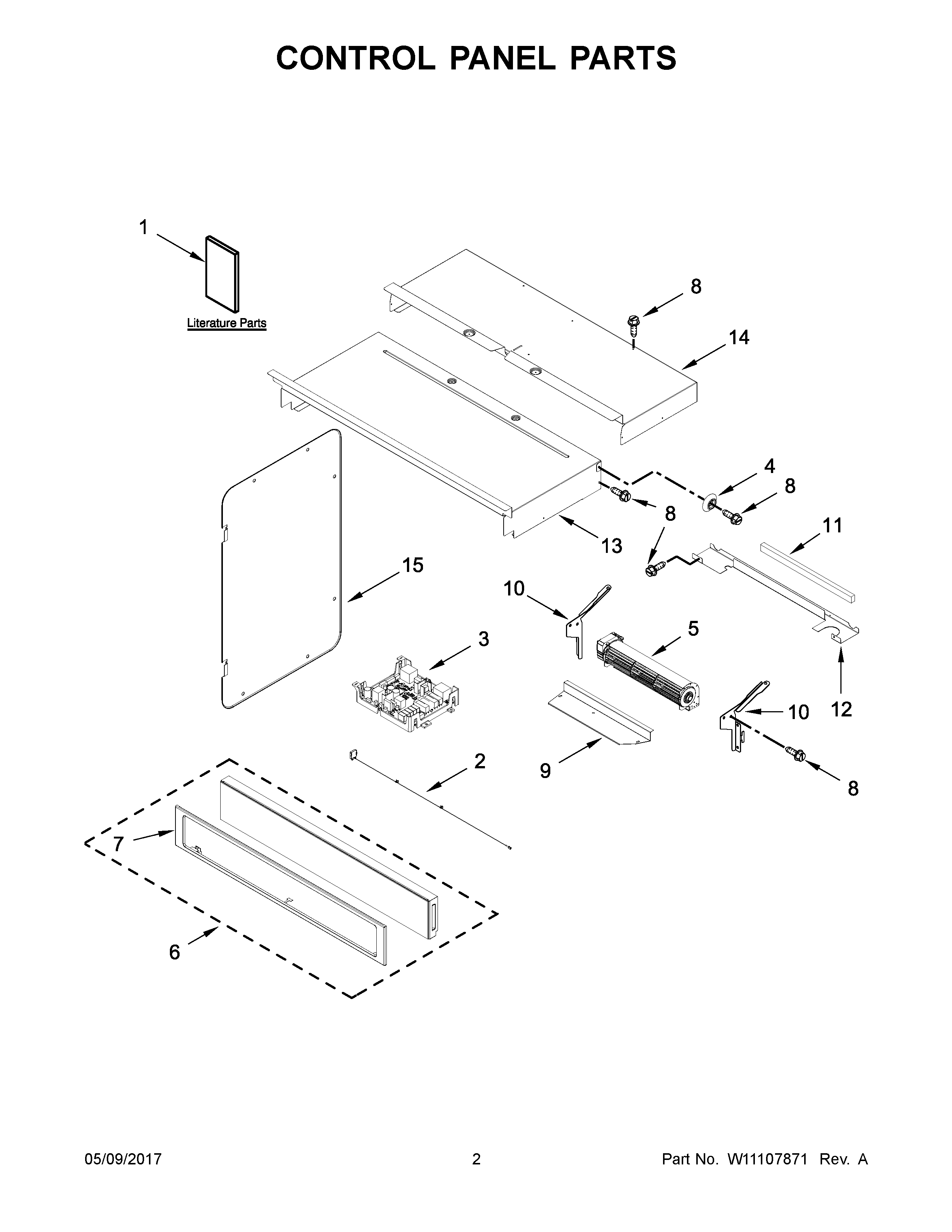

WOC75EC0HS00 02 – CONTROL PANEL PARTSadmin2025-04-26T13:13:01+00:00WOC75EC0HS00 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | W11226264 Whirlpool Wire Harness |
| NI | W11356977 Whirlpool Wire Harness |
| NI | HARNESS, MAIN |
| NI | W11356970 Whirlpool Microwave Wire Harness |
| NI | W10874060 Whirlpool Microwave Wire Harness |
| NI | 4450950 Whirlpool Oven Conduit |
| NI | 16515 Whirlpool Clip |
| NI | WPW10339879 Whirlpool Wire Tie |
| NI | 4450800 Whirlpool Oven Screw |
| NI | 4448664 Whirlpool Oven Mounting Bracket |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | HARNESS, GROUND CONSOLE COMBO |
| NI | W11356954 Whirlpool Microwave Wire Harness |
| NI | W11132989 Whirlpool Wire Harness |
| NI | W11356990 Whirlpool Wire Harness |
| 1D | SHEET, TECH |
| 1E | DIAGRAM, WIRING |
| 1 | GUIDE, USE & CARE (OVEN) |
| 1B | INSTRUCTIONS, INSTALLATION |
| 1A | GUIDE, USE & CARE (MICROWAVE OVEN) |
| 1C | GUIDE, INTERNET CONNECTIVITY |
| 2 | W11537624 Whirlpool Antenna Assembly |
| 3 | W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core |
| 4 | W10618105 Whirlpool Spacer |
| 5 | W11248652 Whirlpool Blower |
| 6 | W11281220 Whirlpool Console + Core |
| 6C | W11428562 Whirlpool Console + Core |
| 6B | W11428561 Whirlpool Console + Core |
| 6A | W11351632 Whirlpool Console + Core |
| 7 | SKIN, CONTROL PANEL (BLACK) |
| 7A | W11109371 Whirlpool Skin Panel |
| 7C | SKIN, CONTROL PANEL (BLACK STAINLESS) |
| 7B | W11113207 Whirlpool Skin Panel |
| 8 | SCREW |
| 9 | W10681157 Whirlpool Fan Cover |
| 10 | W10655463 Whirlpool Bracket Mounting |
| 10A | W10655462 Whirlpool Mounting Bracket |
| 11 | W10728475 Whirlpool Foam Seal |
| 12 | W10655465 Whirlpool Mounting Bracket |
| 13 | W10318158 Whirlpool Access Cover Assembly |
| 14 | W10588732 Whirlpool Cover Access |
| 15 | W10655467 Whirlpool Side Cover |
