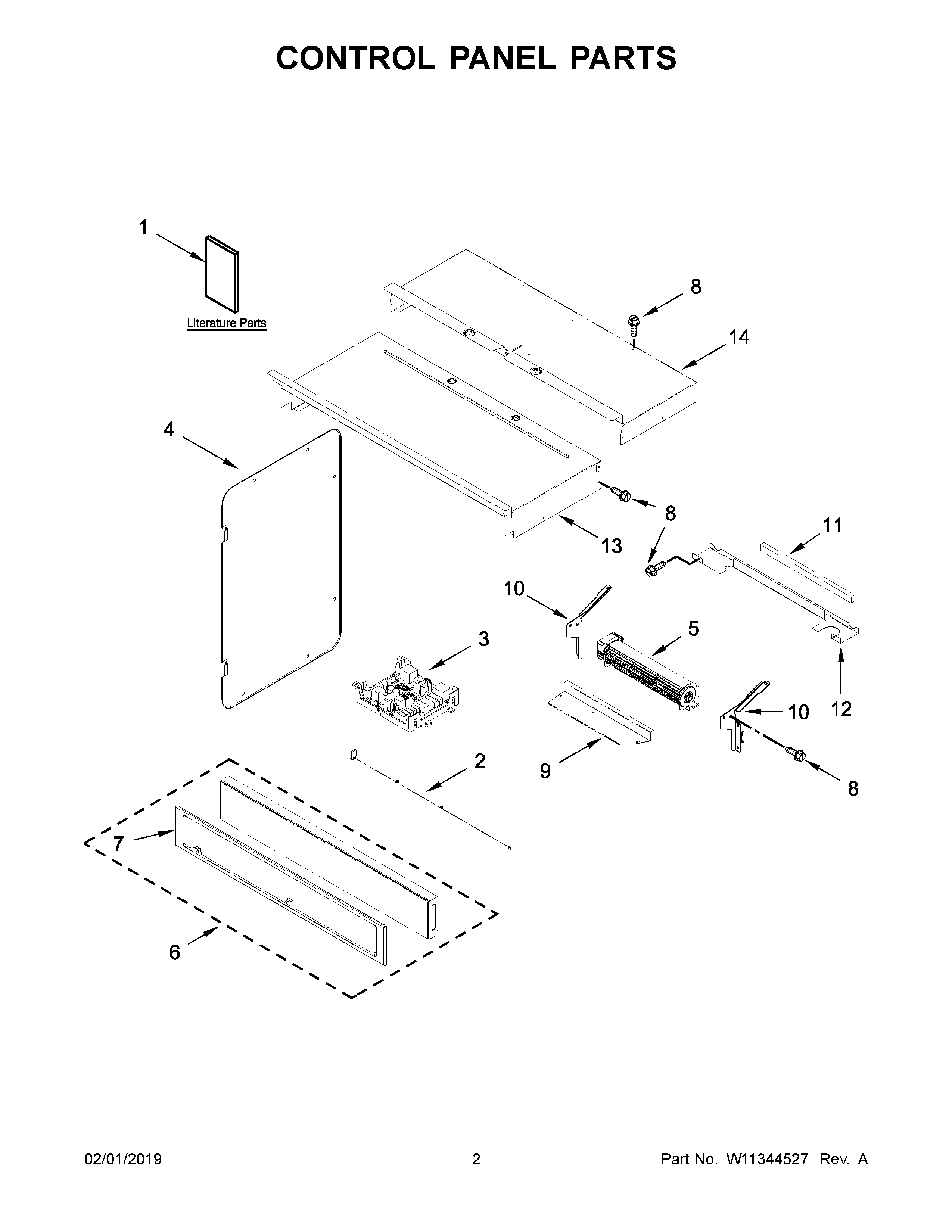

WOC75EC0HS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11315989 Whirlpool Wire Harness
NI	W11356970 Whirlpool Microwave Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W11356954 Whirlpool Microwave Wire Harness
NI	W11325605 Whirlpool Wire Harness
NI	W11356991 Whirlpool Wire Harness
NI	W11356990 Whirlpool Wire Harness
NI	W11356977 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	W11315991 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	WPW10339879 Whirlpool Wire Tie
NI	CABINET (NOT A SERVICEABLE PART)
NI	4448664 Whirlpool Oven Mounting Bracket
1D	SHEET, TECH
1E	DIAGRAM, WIRING
1B	INSTRUCTIONS, INSTALLATION
1C	GUIDE, INTERNET CONNECTIVITY
1	GUIDE, USE & CARE (OVEN)
1A	GUIDE, USE & CARE (MICROWAVE OVEN)
2	W11537624 Whirlpool Antenna Assembly
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4	W10655467 Whirlpool Side Cover
5	W11248652 Whirlpool Blower
6A	W11428562 Whirlpool Console + Core
6	W11428561 Whirlpool Console + Core
7	W11113207 Whirlpool Skin Panel
7A	SKIN, CONTROL PANEL (BLACK STAINLESS)
8	SCREW
9	W10681157 Whirlpool Fan Cover
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	W10655465 Whirlpool Mounting Bracket
13	W10318158 Whirlpool Access Cover Assembly
14	W10588732 Whirlpool Cover Access
