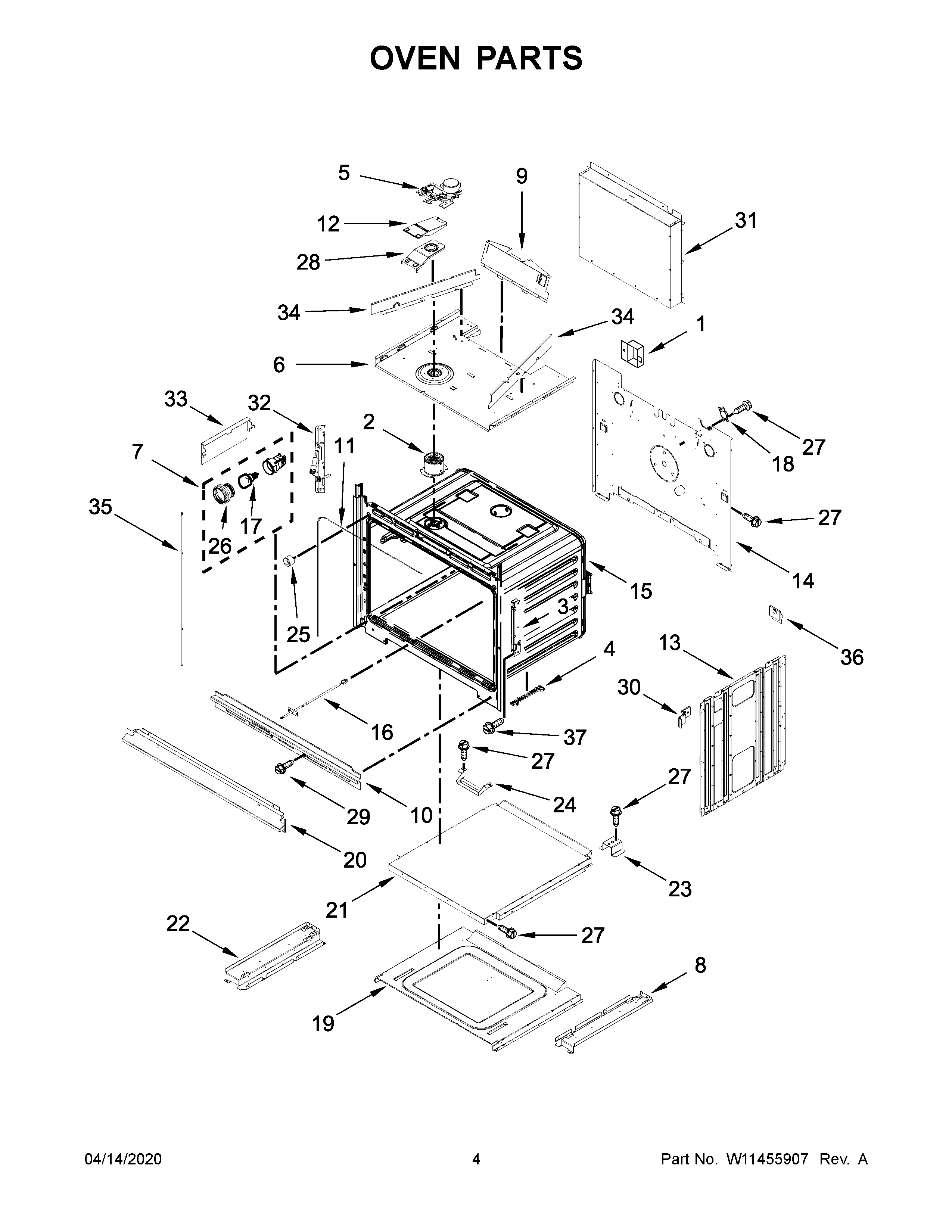

WOC75EC0HS04 03 – OVEN PARTS

Products

Position	Product
NI	W11688731 Whirlpool Insulation
NI	W11685004 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11292324 Whirlpool Insulation
1	8285593 Whirlpool Oven Wire Cover
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11325541 Whirlpool Indicator Light
8	W10283021 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	W10495154 Whirlpool Oven Vent
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13A	SIDE, CHASSIS
13	PANEL-SIDE
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	W11454079 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20A	ASSEMBLY, BOTTOM VENT (BLACK STAINLESS)
20	WPW10351279 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	W10283020 Whirlpool Support
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	W11450856 Whirlpool Light Lens
27	SCREW
28	W10616809 Whirlpool Vent Tube
29	WPY706189 Whirlpool Stove Screw
30	SPACERS, FRONT
31	W11037653 Whirlpool Rear Cover
32	W11045086 Whirlpool Hinge Receptacle
33	SHIELD, SLOW CLOSE HINGE
34	W10681156 Whirlpool Vent Deflector
35A	W10536162 Whirlpool Microwave Trim Cover Kit
36	SPACER, CENTER
37	WPW10254050 Whirlpool Screw
