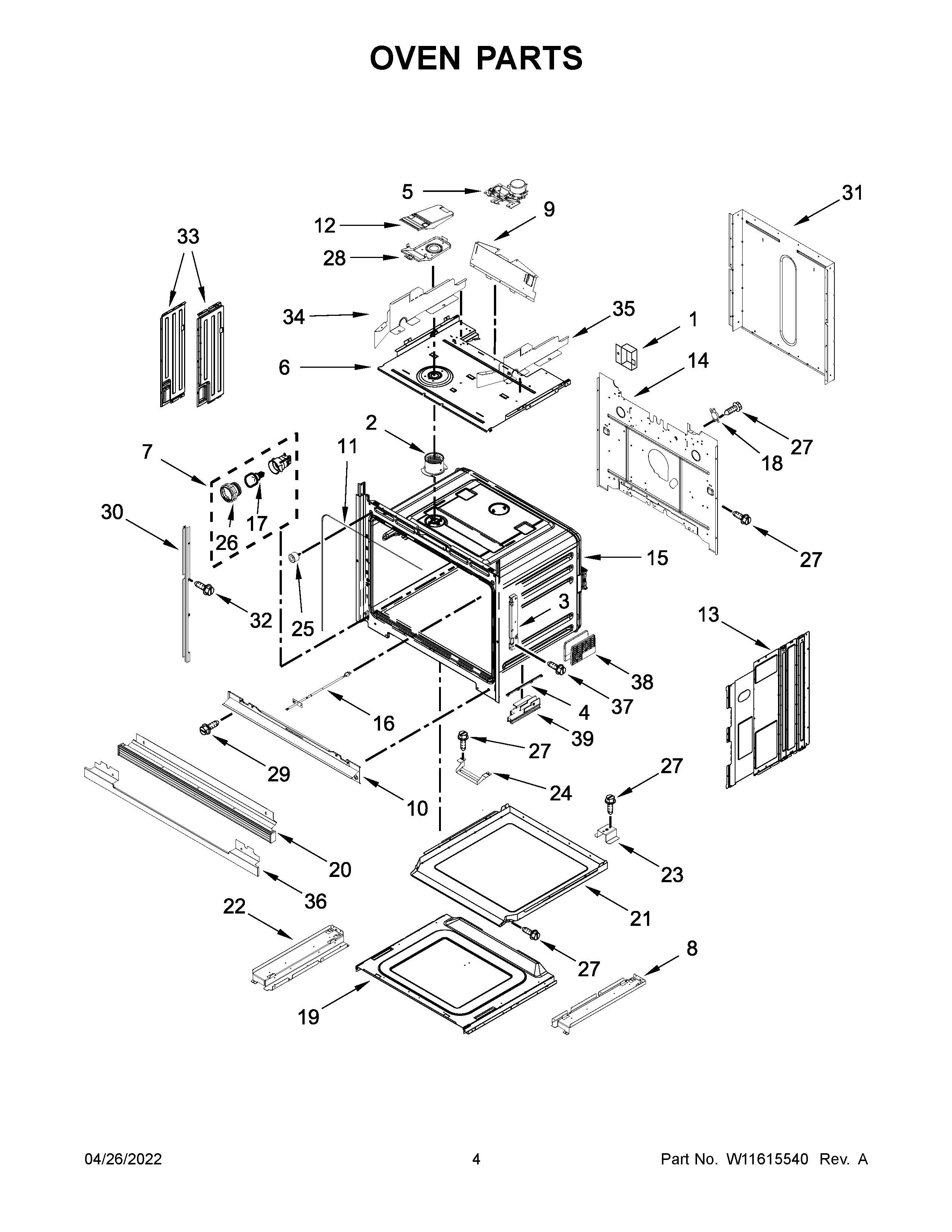

WOC75EC0HS20 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, CAVITY
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP
1	8285593 Whirlpool Oven Wire Cover
2	W11240525 Whirlpool Vent Tube
3A	W11712406 Whirlpool Receiver Hinge
3	W11712405 Whirlpool Receiver Hinge
4	W11598116 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11325541 Whirlpool Indicator Light
8	W10283021 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	VENT-OVEN
11	W11676903 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS
16	W11598120 Whirlpool Thermostat
17	W11454079 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20	W11598202 Whirlpool Oven Vent
20A	W11369884 Whirlpool Oven Heat Deflector
21	COVR-ACESS
22	W10283020 Whirlpool Support
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	W11598125 Whirlpool Bumper
26	W11450856 Whirlpool Light Lens
27	SCREW
28	BASE, VENT EXHAUST
29	WPY706189 Whirlpool Stove Screw
30	TRIM
30A	TRIM
31	W11134657 Whirlpool Rear Cover
32	W11602623 Whirlpool Screw
33A	W11598151 Whirlpool Side Cover
33	W11598150 Whirlpool Side Cover
34	DEFLECTOR, CHASSIS (LEFT)
35	DEFLECTOR, CHASSIS (RIGHT)
36	W11598135 Whirlpool Trim
37	WPW10254050 Whirlpool Screw
38	W11598170 Whirlpool Level Foot
39A	W11598168 Whirlpool Leveling Foot
39	W11598169 Whirlpool Foot Level Assembly
