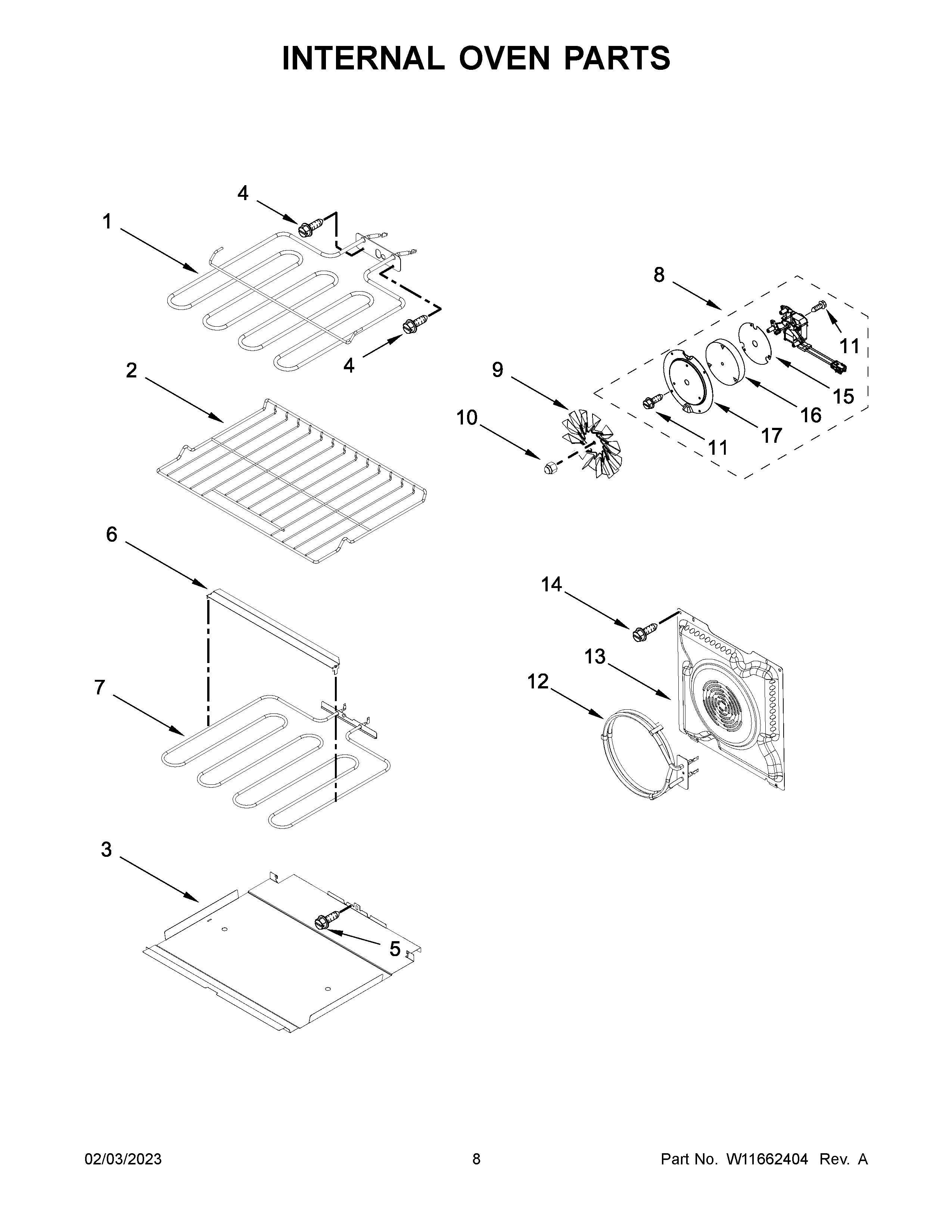

WOC75EC0HS22 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11617232 Whirlpool Broil Element
2	W11218798 Whirlpool Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W11617227 Whirlpool Fan Motor
9	W11548753 Whirlpool Convection Fan
10	W11548755 Whirlpool Nut
11	W10850807 Whirlpool Screw
12	WPW10260248 Whirlpool Element Assembly
13	W10359278 Whirlpool Baffle Conv
14	WP74003976 Whirlpool Screw
15	PLATE, CONVECT MOTOR
16	INSULATION, CONVECT MOTOR
17	COVER, CONVECT PLATE
