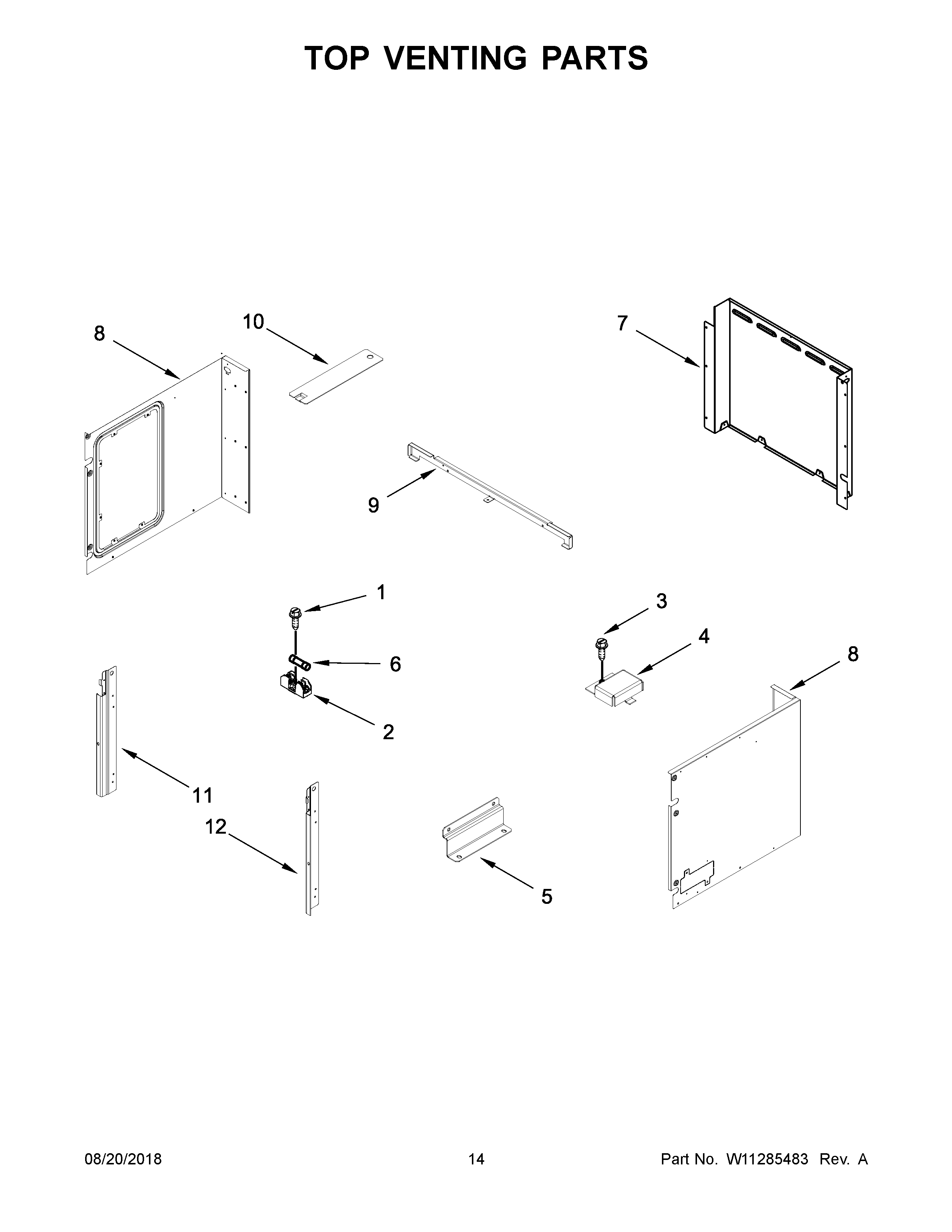

WOC75EC0HV01 08 – TOP VENTING PARTS

Products

Position	Product
1	SCREW
2	4454949 Whirlpool Oven Fuse Block
3	SCREW
4	8285593 Whirlpool Oven Wire Cover
5	W10283024 Whirlpool Mounting Bracket
6	WPW10017410 Whirlpool Fuse
7	COVER, BACK DUCT
8	CHASSIS, COMBO SIDE (LEFT)
8A	W11037649 Whirlpool Side Cover
9	W10283022 Whirlpool Support
10	W10356437 Whirlpool Cover Access
11	W10360516 Whirlpool Mounting Bracket
12	W10360518 Whirlpool Mounting Bracket
