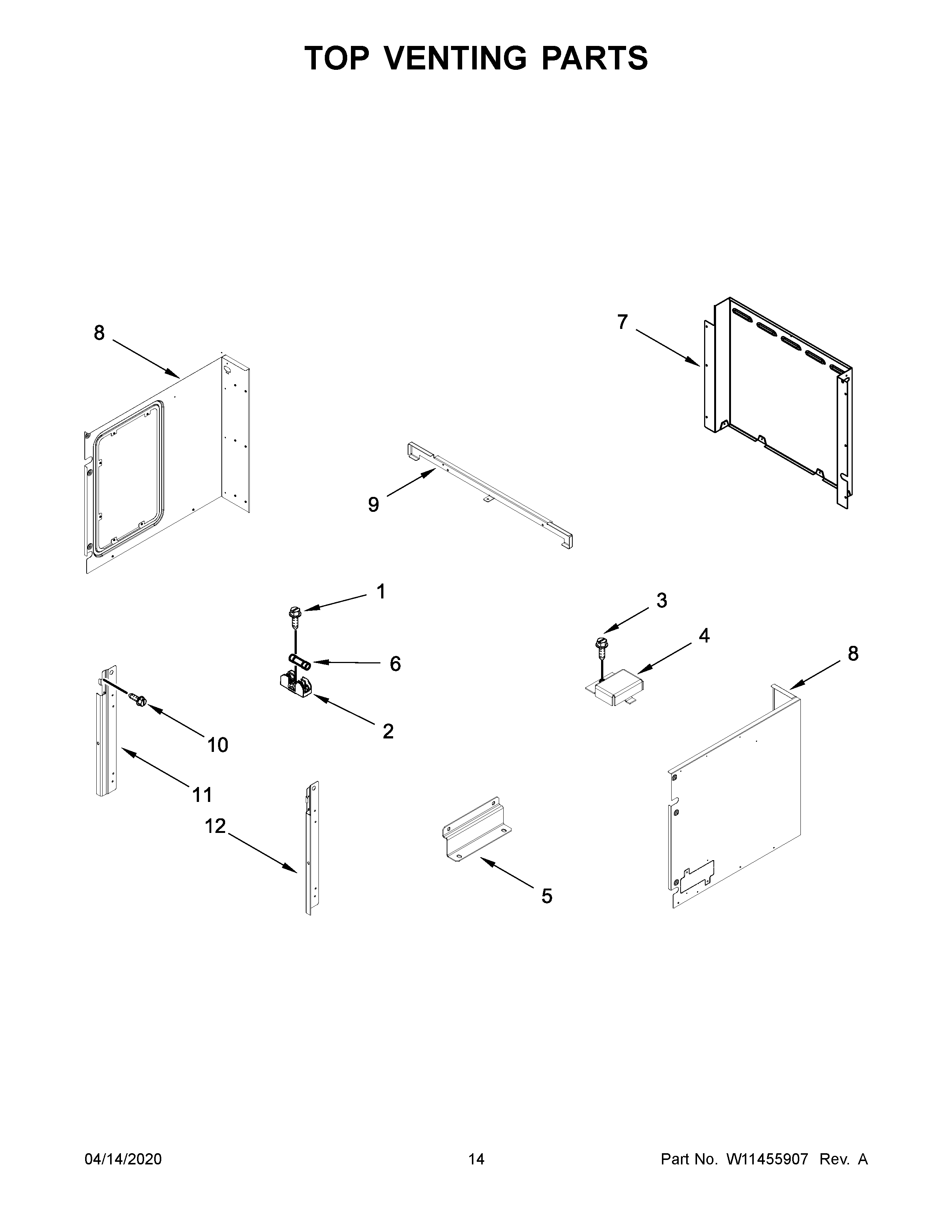

WOC75EC0HV04 08 – TOP VENTING PARTS

WOC75EC0HV04 08 – TOP VENTING PARTS

Written by

in

WOC75EC0HV04 08 – TOP VENTING PARTS

Products

PositionProduct
1SCREW
24454949 Whirlpool Oven Fuse Block
3SCREW
48285593 Whirlpool Oven Wire Cover
5W10283024 Whirlpool Mounting Bracket
6WPW10017410 Whirlpool Fuse
7COVER, BACK DUCT
8CHASSIS, COMBO SIDE (LEFT)
8AW11037649 Whirlpool Side Cover
9W10283022 Whirlpool Support
10SCREW (BLACK)
11W10360516 Whirlpool Mounting Bracket
12W10360518 Whirlpool Mounting Bracket
