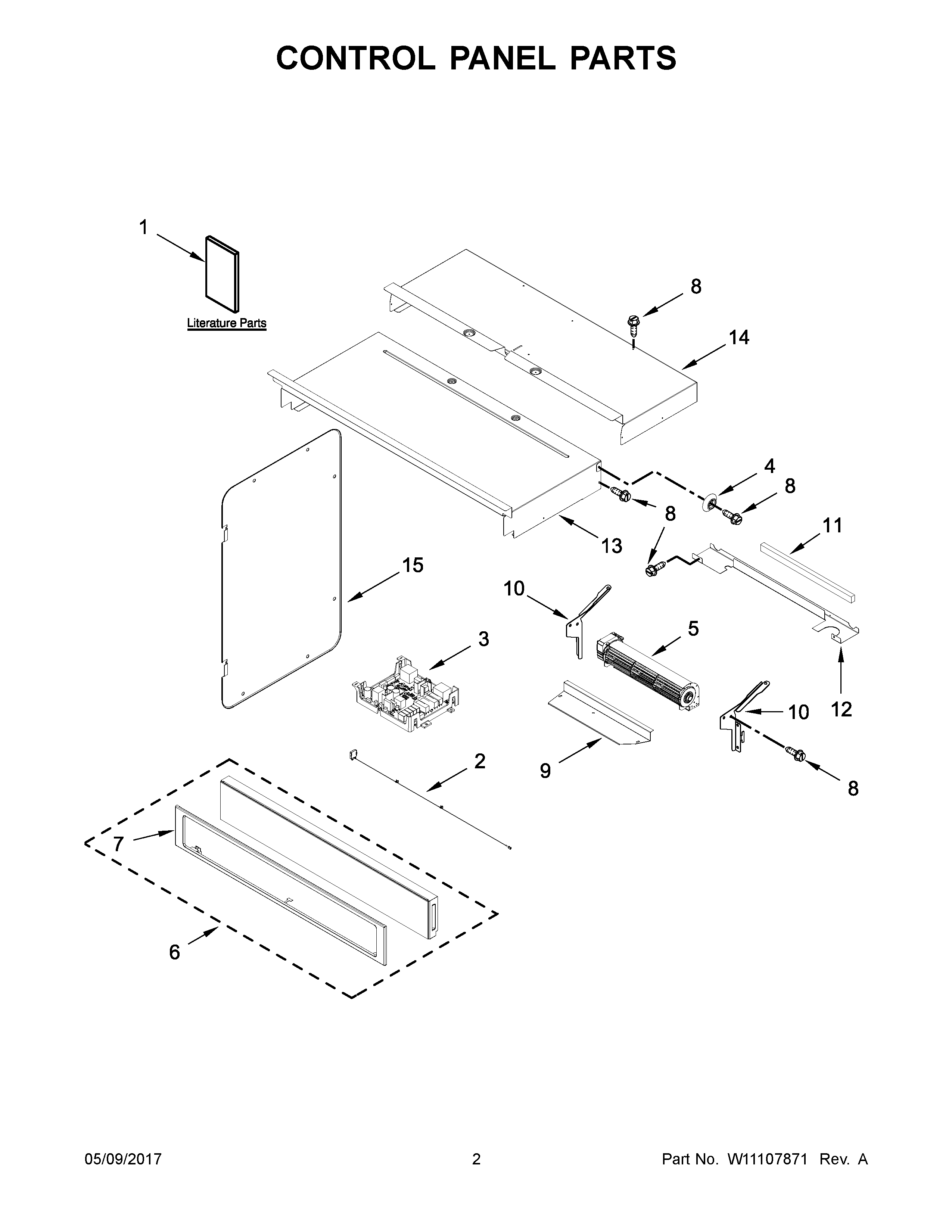

WOC75EC0HW00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11226264 Whirlpool Wire Harness
NI	W11356977 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	W11356970 Whirlpool Microwave Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	4450950 Whirlpool Oven Conduit
NI	16515 Whirlpool Clip
NI	WPW10339879 Whirlpool Wire Tie
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, GROUND CONSOLE COMBO
NI	W11356954 Whirlpool Microwave Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W11356990 Whirlpool Wire Harness
1D	SHEET, TECH
1E	DIAGRAM, WIRING
1	GUIDE, USE & CARE (OVEN)
1B	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE (MICROWAVE OVEN)
1C	GUIDE, INTERNET CONNECTIVITY
2	W11537624 Whirlpool Antenna Assembly
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11248652 Whirlpool Blower
6	W11281220 Whirlpool Console + Core
6C	W11428562 Whirlpool Console + Core
6B	W11428561 Whirlpool Console + Core
6A	W11351632 Whirlpool Console + Core
7	SKIN, CONTROL PANEL (BLACK)
7A	W11109371 Whirlpool Skin Panel
7C	SKIN, CONTROL PANEL (BLACK STAINLESS)
7B	W11113207 Whirlpool Skin Panel
8	SCREW
9	W10681157 Whirlpool Fan Cover
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10728475 Whirlpool Foam Seal
12	W10655465 Whirlpool Mounting Bracket
13	W10318158 Whirlpool Access Cover Assembly
14	W10588732 Whirlpool Cover Access
15	W10655467 Whirlpool Side Cover
