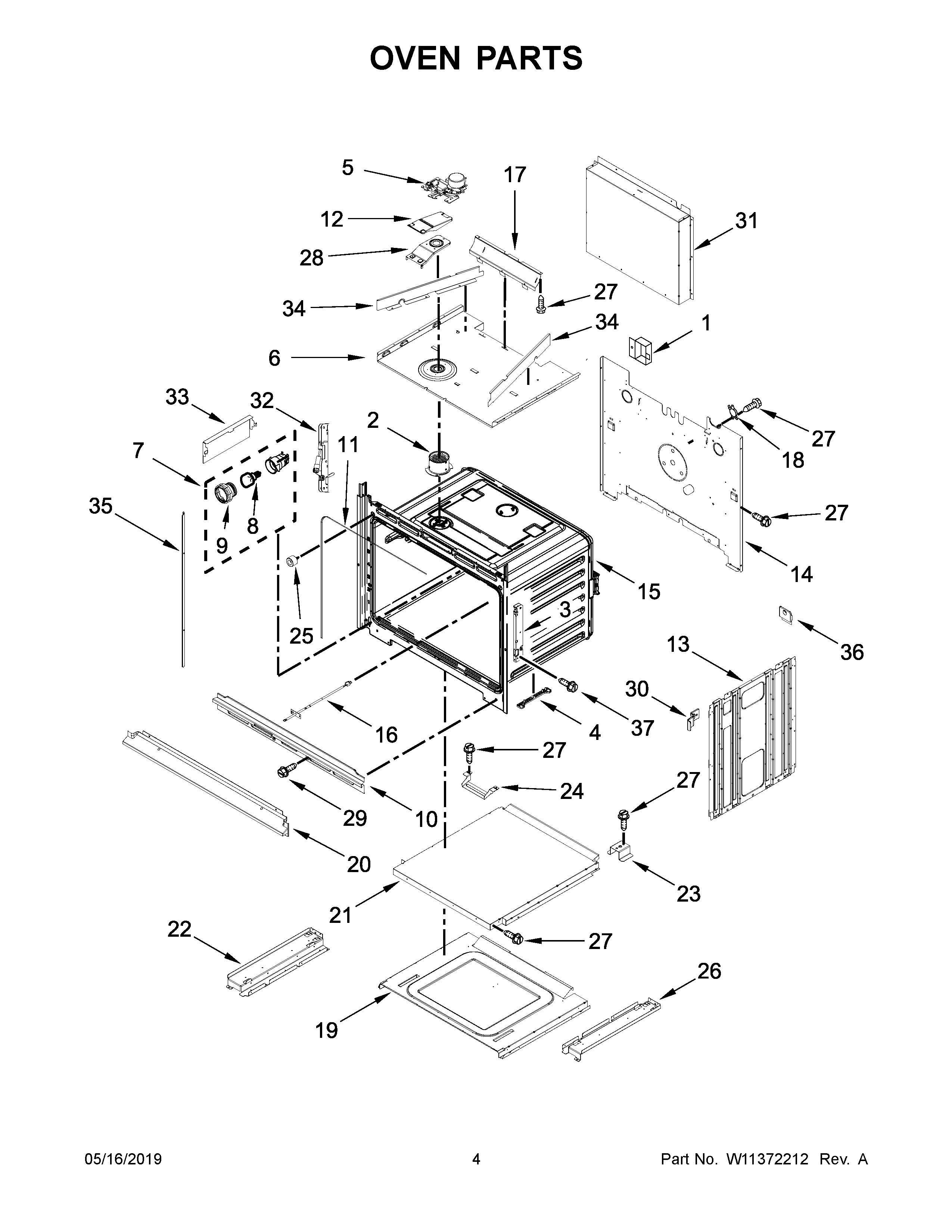

WOC75EC7HS03 03 – OVEN PARTS

Products

Position	Product
NI	W11688333 Whirlpool Insulation
NI	INSULATION
NI	W10520716 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
1	8285593 Whirlpool Oven Wire Cover
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
7	WPW10734063 Whirlpool Indicator Light
8	WPW10412711 Whirlpool Light Bulb
9	WPW10412722 Whirlpool Light Lens
10	VENT, CENTER 27“
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	PANEL-SIDE
13A	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	W10904163 Whirlpool Vent Deflector
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	WPW10351280 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	W10283020 Whirlpool Support
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	W10283021 Whirlpool Support
27	SCREW
28	W10616809 Whirlpool Vent Tube
29	SCREW
30	SPACERS, FRONT
31	W11037653 Whirlpool Rear Cover
32	W11045086 Whirlpool Hinge Receptacle
33	SHIELD, SLOW CLOSE HINGE
34	W10681156 Whirlpool Vent Deflector
35A	W10536162 Whirlpool Microwave Trim Cover Kit
36	SPACER, CENTER
37	WPW10254050 Whirlpool Screw
