WOC75EC7HS21 04 – OVEN DOOR PARTS

WOC75EC7HS21 04 – OVEN DOOR PARTS

Written by

in

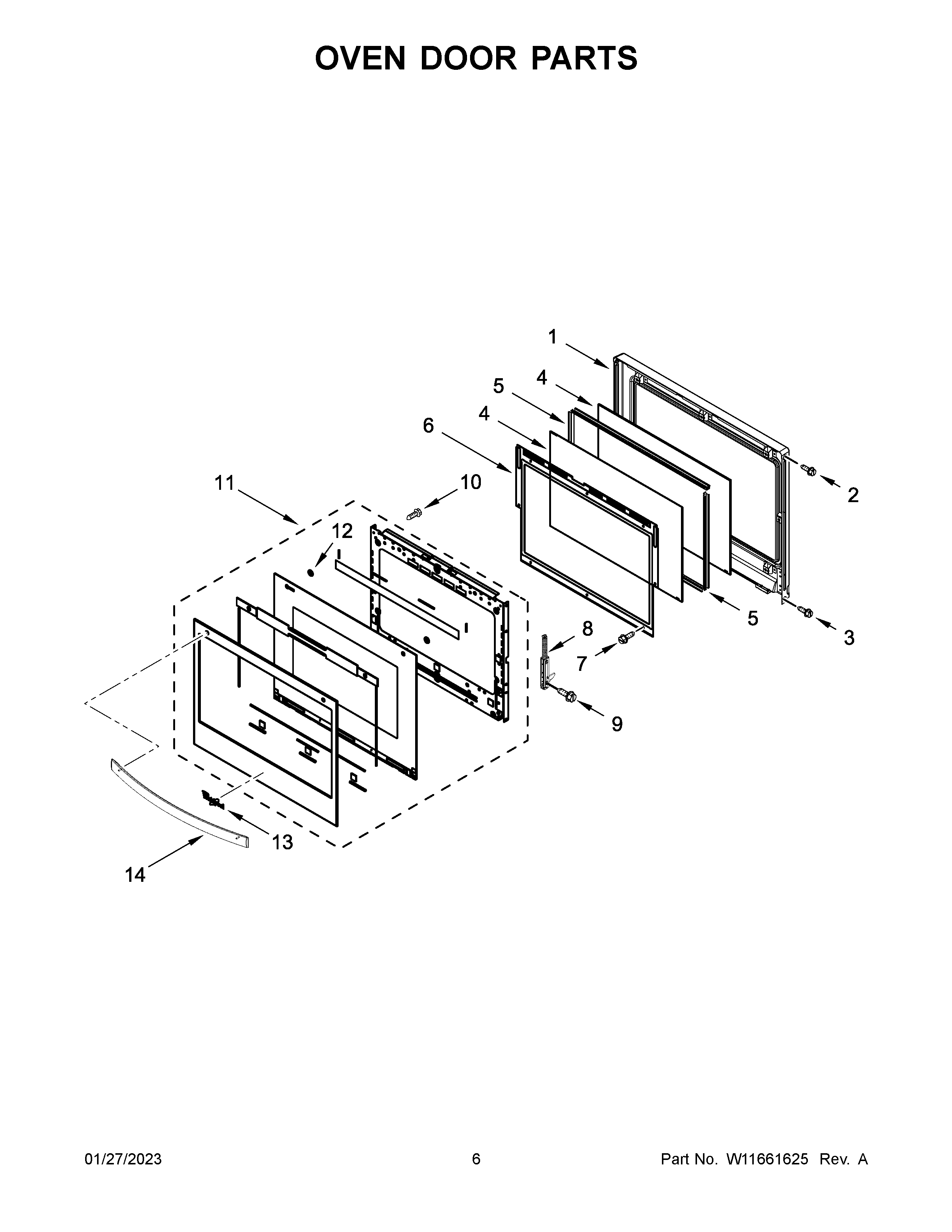

WOC75EC7HS21 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11598186 Whirlpool Glass Frame
2SCREW
3WPY706189 Whirlpool Stove Screw
4WPW10284902 Whirlpool Door Glass
5W11598187 Whirlpool Bracket Assembly
6W11598188 Whirlpool Retainer
7SCREW
8HINGE, DOOR (LEFT)
8AHINGE, DOOR (RIGHT)
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11W11600331 Whirlpool Oven Door Glass
12W11676355 Whirlpool Washer
13W11178521 Whirlpool Dishwasher Nameplate
14W11113204 Whirlpool Door Handle
