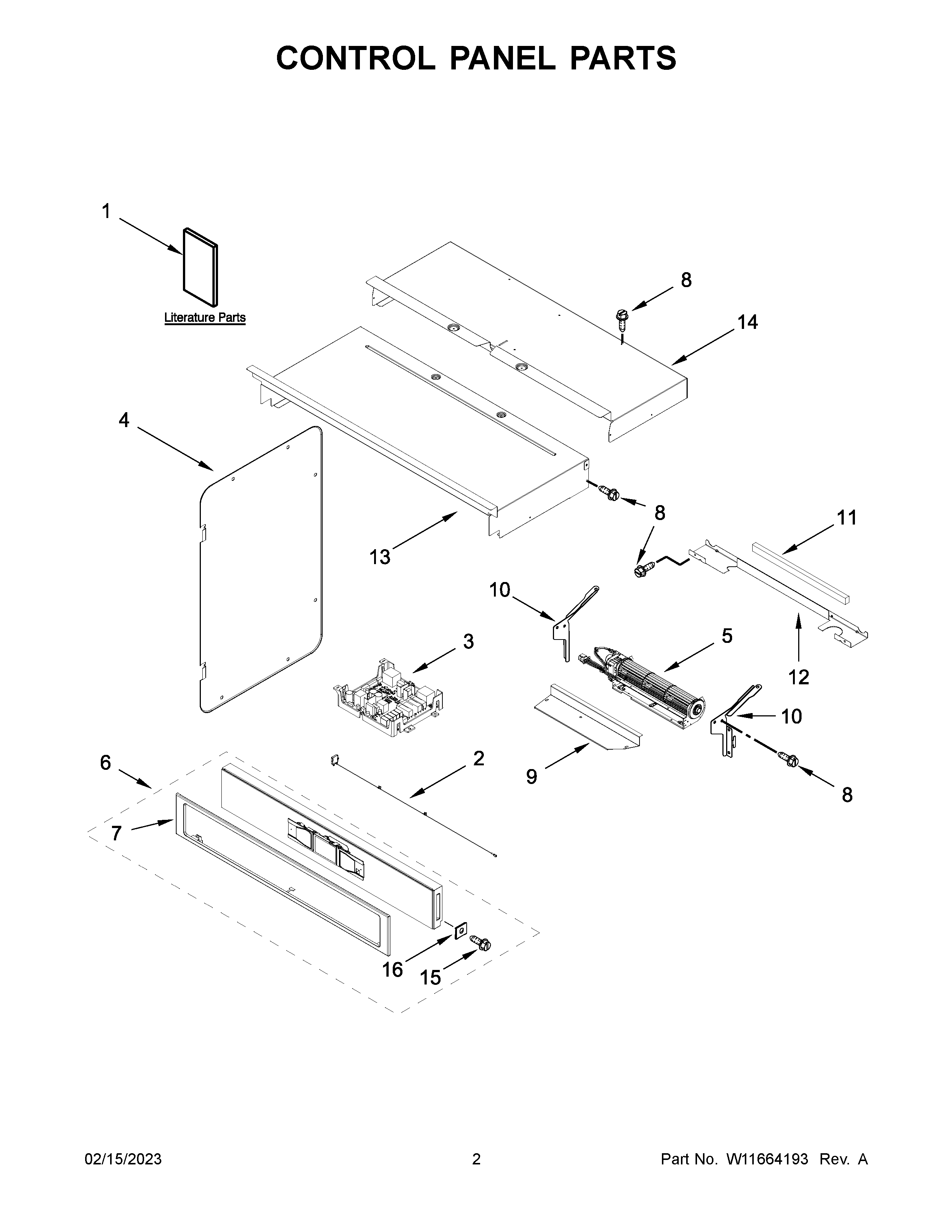

WOC75EC7HS22 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11546965 Whirlpool Wire Harness
NI	W11356990 Whirlpool Wire Harness
NI	W11539494 Whirlpool Wire Harness
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11356991 Whirlpool Wire Harness
NI	W11659369 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W11727826 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W11578580 Whirlpool Wire Harness
NI	HARNESS, INPUT
NI	HARNESS, INTERLOCK
NI	HARNESS, SIGNAL
NI	CABINET (NOT A SERVICEABLE PART)
1A	QUICK START GUIDE
1B	TECH SHEET
1	OWNER'S MANUAL
2	W11537624 Whirlpool Antenna Assembly
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4	W10655467 Whirlpool Side Cover
5	BLOWER
6	W11616685 Whirlpool Console + Core
7	W11112611 Whirlpool Control Panel
8	SCREW
9	W10681157 Whirlpool Fan Cover
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	DIVIDER, CHASSIS BACK
13	W10318159 Whirlpool Access Cover
14	CHASSIS, COVER TOP BACK 27 IN WIFI
15	SCREW (BLACK)
16	WP4450118 Whirlpool Nut
