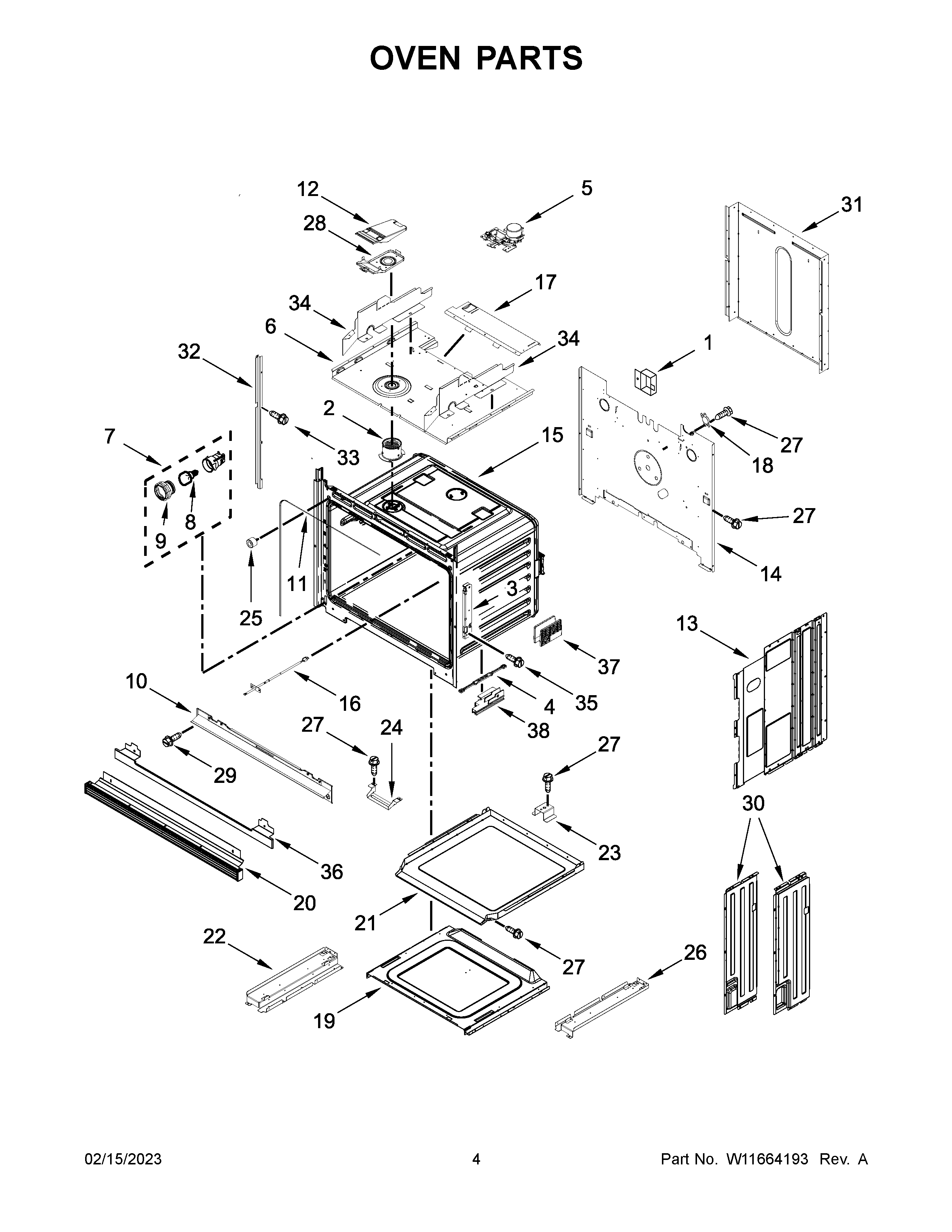

WOC75EC7HS22 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, BACK
NI	CABINET (NOT A SERVICEABLE PART)
1	8285593 Whirlpool Oven Wire Cover
2	W11240525 Whirlpool Vent Tube
3A	W11712406 Whirlpool Receiver Hinge
3	W11712405 Whirlpool Receiver Hinge
4	W11598152 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11325541 Whirlpool Indicator Light
8	W11454079 Whirlpool Light Bulb
9	W11450856 Whirlpool Light Lens
10	W11518348 Whirlpool Vent
11	W11608109 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
16	W11598120 Whirlpool Thermostat
17	W10904163 Whirlpool Vent Deflector
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	W11598189 Whirlpool Vent
21	COVR-ACESS
22	W10283020 Whirlpool Support
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	W11598125 Whirlpool Bumper
26	W10283021 Whirlpool Support
27	SCREW
28	BASE, VENT EXHAUST
29	WPY706189 Whirlpool Stove Screw
30A	W11598151 Whirlpool Side Cover
30	W11598150 Whirlpool Side Cover
31	W11134657 Whirlpool Rear Cover
32A	TRIM
32	TRIM
33	W11602623 Whirlpool Screw
34A	DEFLECTOR, CHASSIS (RIGHT)
34	DEFLECTOR, CHASSIS (LEFT)
35	WPW10254050 Whirlpool Screw
36	W11712432 Whirlpool Trim Assembly
37	W11598170 Whirlpool Level Foot
38A	W11598168 Whirlpool Leveling Foot
38	W11598169 Whirlpool Foot Level Assembly
